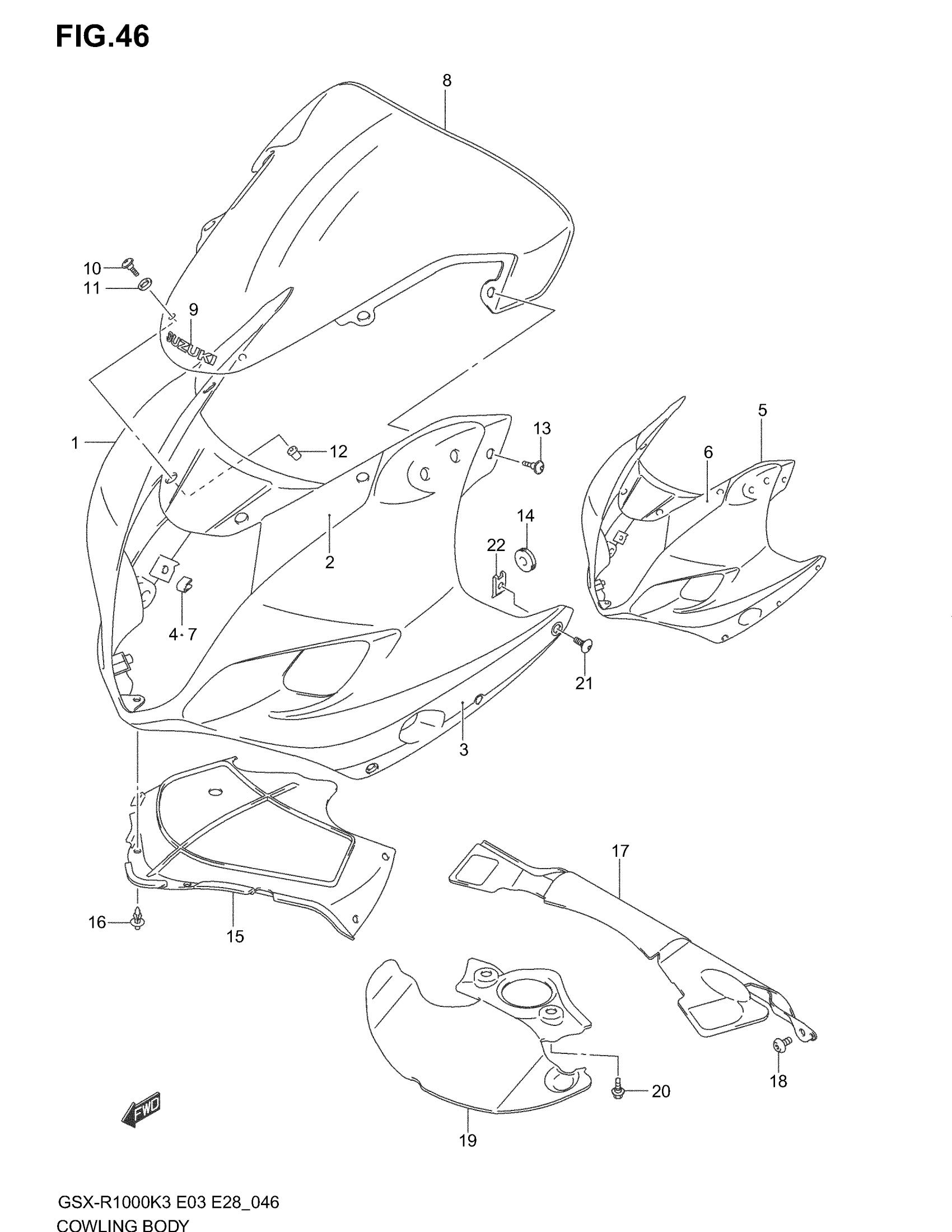

Suzuki GSX-R1000 (2004) COWLING BODY (MODEL K3) Diagram

#

Description
Price

1

COWLING, BODY (BLUE) | FOR LR5

94410-18G00-YBA

$927.40

1

COWLING, BODY (BLACK) | FOR LR8; Includes Item(s) 2 - 4

94410-18G00-019

Unavailable

2

TAPE SET, FRONT | FOR YBA

68280-18G00-LR5

Unavailable

2

TAPE SET, FRONT | FOR 019

68280-18G00-CT5

Unavailable

3

TAPE SET, SIDE | FOR YBA

68280-18G10-LS3

Unavailable

3

TAPE SET, SIDE | FOR 019

68280-18G10-LR8

Unavailable

4

CUSHION,FR LEG This part replaces 94425-14G00.

94425-14G01

$5.17

5

COWLING, BODY (SILVER) | FOR YD8; Includes Item(s) 6 - 7

94410-18G10-YD8

Unavailable

6

TAPE SET, FRONT | FOR YD8

68280-18G00-FP2

Unavailable

7

CUSHION,FR LEG This part replaces 94425-14G00.

94425-14G01

$5.17

8

WINDSCREEN | Includes Item(s) 9

94610-18G00-CT5

Unavailable

9

TAPE

68275-18G00-CT5

Unavailable

10

SCREW

09139-05025

$2.05

11

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

12

NUT

09159-05019

$7.14

13

SCREW, REAR

09139-05055

$4.26

14

CUSHION, HEADLAMP

09320-08028

$3.04

15

COVER, BODY COWL

94419-18G00

Unavailable

16

CLIP, LID (BLACK)

09409-06314-5PK

$2.78

17

COVER, COWL FRONT LOWER

94457-18G00

Unavailable

18

BOLT LOWER COVER

09139-05074

$2.61

19

COVER, BRACKET

94458-18G00

Unavailable

20

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

21

SCREW, SIDE

09139-05064

$2.57

22

NUT COWL

94484-24F00

$4.03
