Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:73

21200-40860

$511.28

2

WASHER (25X54X2.4)

09160-25073

$14.50

3

BEARING (35X40X35.8)

09263-35017

$40.54

4

HUB, CLUTCH SLEEVE This part replaces 21410-40F00.

21410-40F01

$113.72

5

BOLT,CLUTCH SPRING

21482-40F00

$3.58

6

SPRING, CLUTCH

21413-40F00

$7.51

7

WASHER, CLUTCH SPRING

21414-29F00

$6.25

8

PLATE, CLUTCH DRIVE,NO.1

21441-40F00

$24.13

9

PLATE, CLUTCH DRIVE,NO.2

21441-40F10

$19.15

10

PLATE, CLUTCH DRIVEN | T:2.3

21451-40F00

$11.88

11

SEAT, WAVE WASHER

21471-40F00

$14.34

12

WASHER, CLUTCH PLATE WAVE

21472-40F00

$17.82

13

DISC, CLUTCH PRESSURE

21462-40F00

$64.08

14

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

15

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$11.61

16

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.76

17

WASHER, SLEEVE HUB NUT | 25X38X1.0

09181-25223

$3.21

18

ROD, CLUTCH PUSH RH

23110-38B00

$23.19

19

ROD, CLUTCH PUSH LH

23111-35F00

$13.30

20

PIECE, CLUTCH PUSH

23121-31E00

$23.92

21

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 22 - 23

23200-35F01

$66.14

22

SCREW (6X25)

09134-06010

$3.12

23

.NUT

08310-00067

$2.13

24

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.89

25

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$8.29

26

SEAL, CLUTCH PUSH ROD | 6X34X1.0

09285-06011

$8.24

27

SPRING, CLUTCH RELEASE

09443-09044

$3.37

28

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

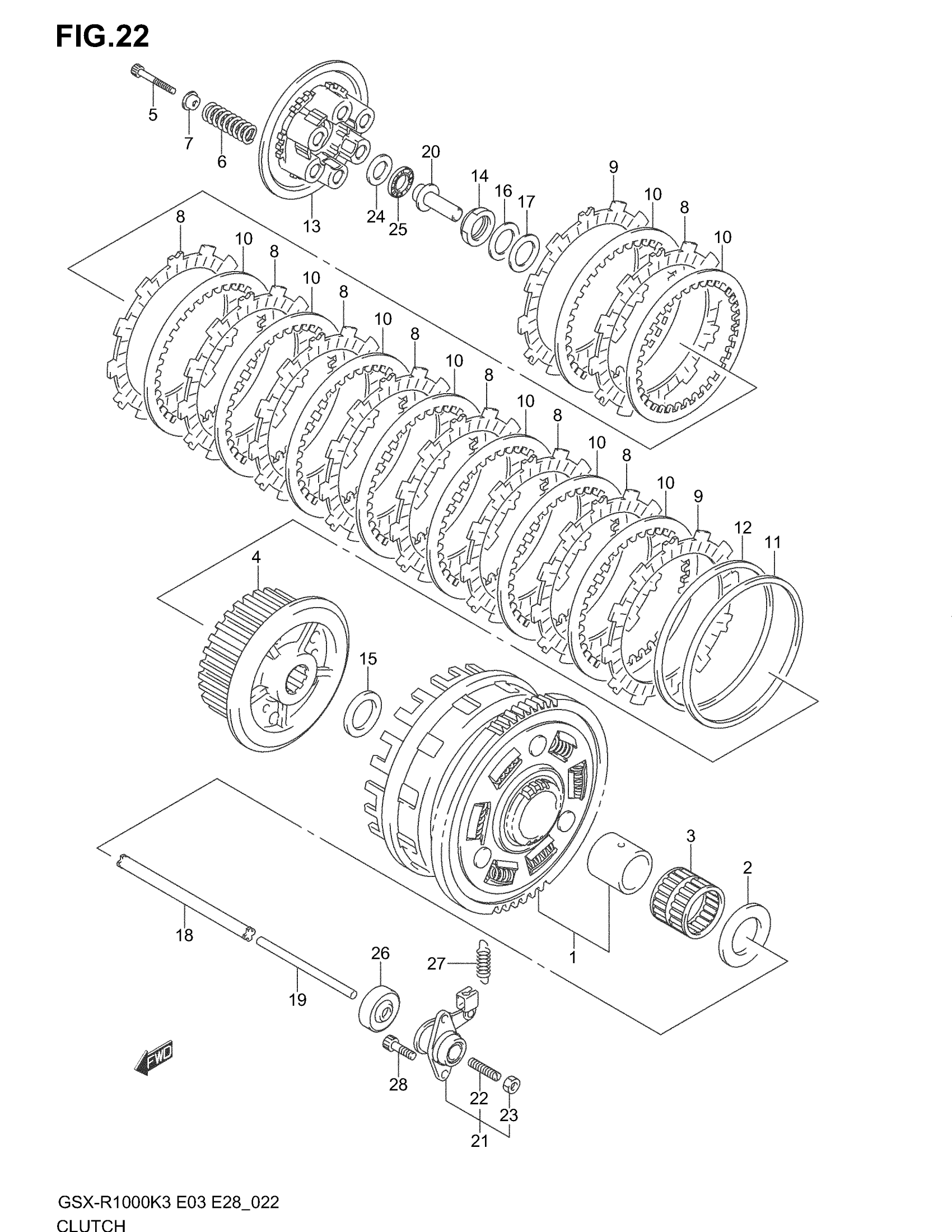

Suzuki GSX-R1000 (2004) CLUTCH Diagram
