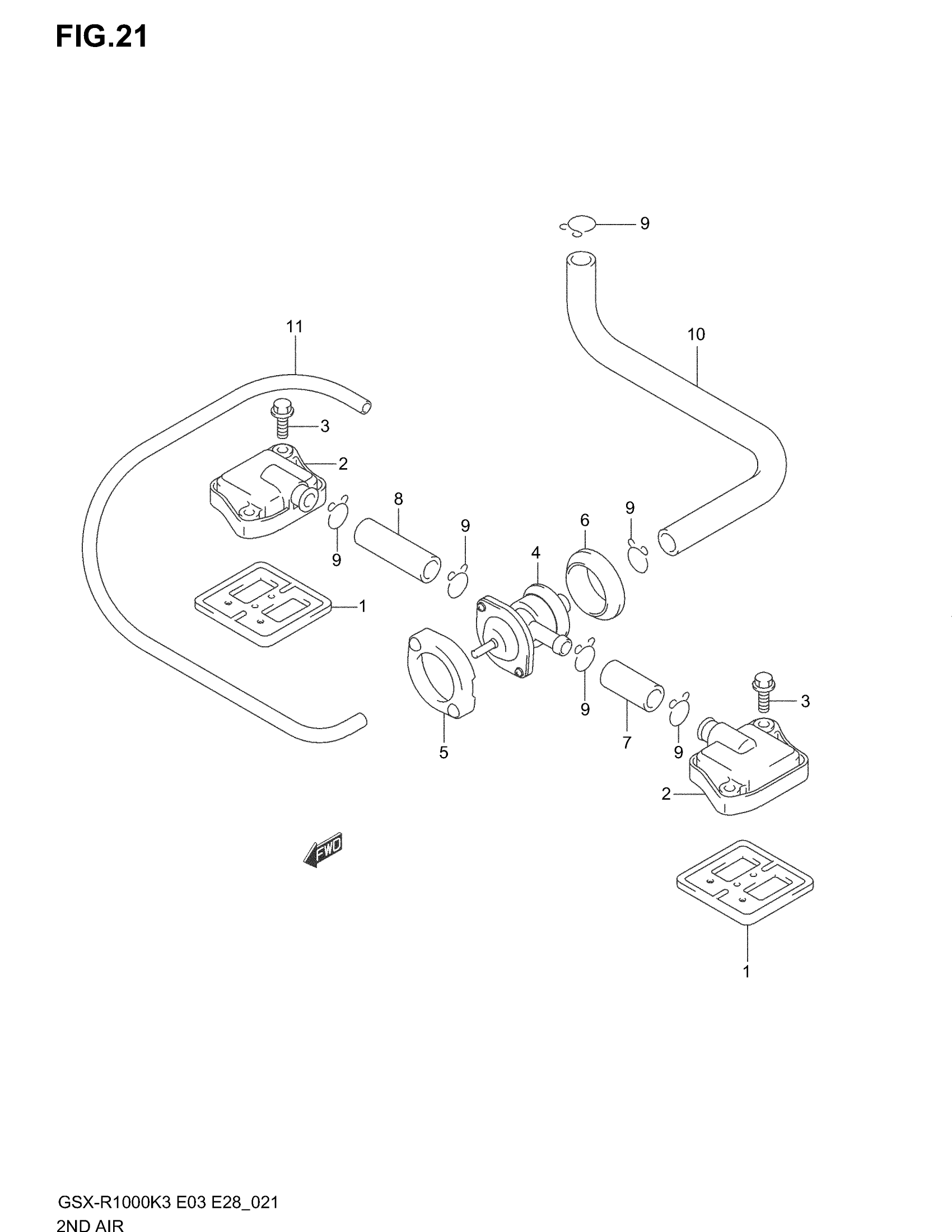

Suzuki GSX-R1000 (2004) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED This part replaces 18450-35F10.

18450-35F11

$99.63

2

COVER, REED VALVE

18531-35F10

Unavailable

3

BOLT (6X20) This part replaces 09103-06217.

09103-06201

$2.64

4

VALVE ASSY, AIR CUT

18510-35F00

Unavailable

5

CUSHION, AIR CUT VALVE UPPER

18516-35F00

Unavailable

6

CUSHION, AIR CUT VALVE LOWER

18517-35F00

Unavailable

7

HOSE, LH (11X16X600) | L:600!30

09355-11165-600

$15.65

8

HOSE, RH (11X16X600) | L:600!50

09355-11165-600

$15.65

9

CLIP

09401-15101

$2.26

10

HOSE,2ND AIR CL This part replaces 18711-35F00.

18711-35F01

Unavailable

11

HOSE (3.5X7.5X600) | L:600!530 This part replaces 09355-35755-600.

09355-35007-600

$6.94
