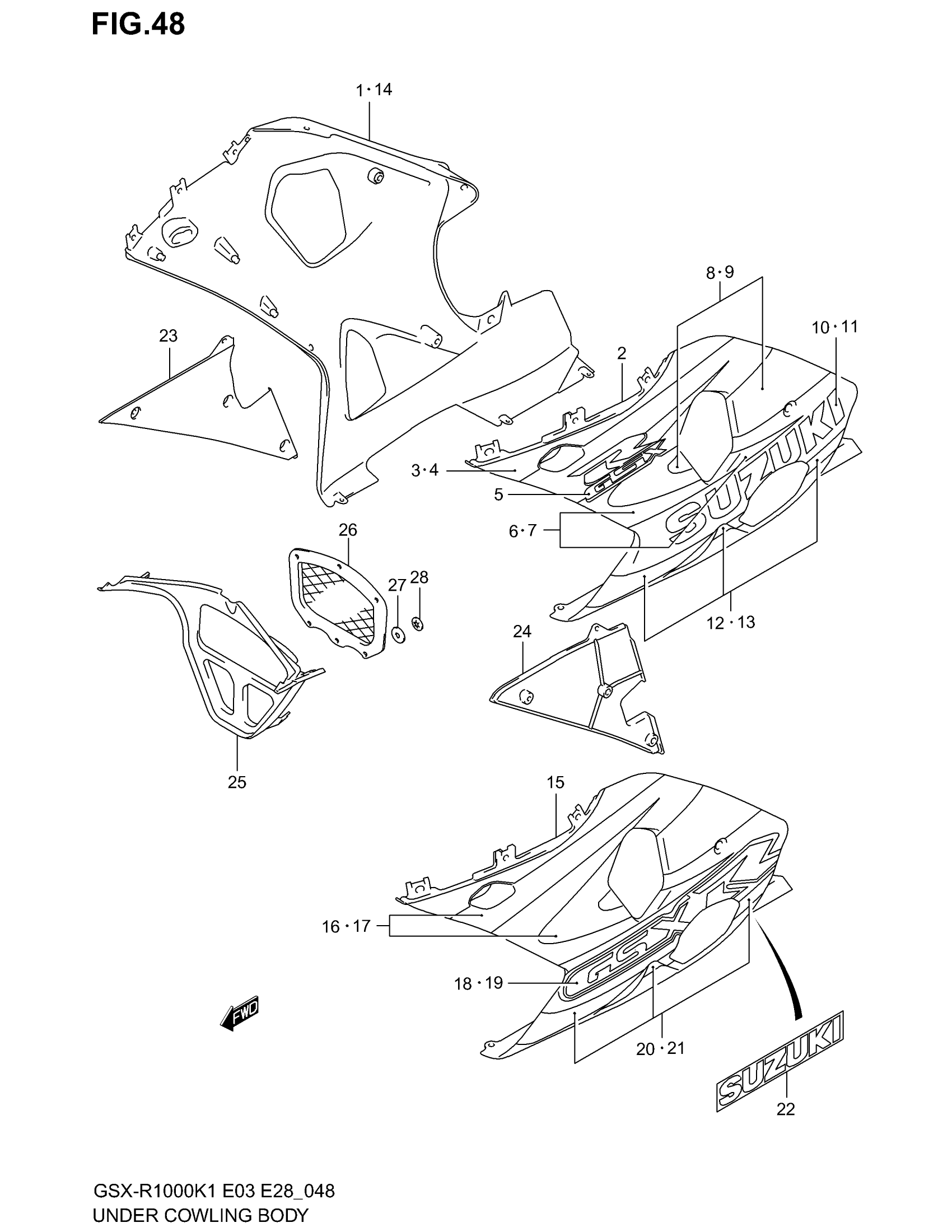

Suzuki GSX-R1000 (2002) UNDER BOWLING (MODEL K1) Diagram

#

Description
Price

1

COWL ASSY, UNDER RH | E3,E28,E33 FOR L99

94407-40F00-M4M

Unavailable

2

COWL ASSY, UNDER LH | E3,E28,E33 FOR L99; Includes Item(s) 3 - 13

94408-40F00-M4M

Unavailable

3

TAPE SET, UPPER RH (WHITE) | FOR M4M

68180-40F10-0JW

Unavailable

4

TAPE SET, UPPER LH (WHITE) | FOR M4M

68190-40F10-0JW

Unavailable

5

EMBLEM, "GSX" | FOR M4M

68181-40F20-E8C

Unavailable

6

TAPE SET, CENTER FRONT RH | FOR M4M

68180-40F00-FV3

Unavailable

7

TAPE SET, CENTER FRONT LH | FOR M4M

68190-40F00-FV3

Unavailable

8

TAPE, CENTER REAR RH | FOR M4M

68185-40F00-M18

Unavailable

9

TAPE, CENTER REAR LH | FOR M4M

68195-40F00-M18

Unavailable

10

EMBLEM, "SUZUKI" RH (WHITE) | FOR M4M

68181-40F10-0JW

$63.30

11

EMBLEM, "SUZUKI" LH (WHITE) | FOR M4M

68191-40F10-0JW

Unavailable

12

TAPE SET, LOWER RH | FOR M4M

68180-40F20-M18

Unavailable

13

TAPE SET, LOWER LH | FOR M4M

68190-40F20-M18

Unavailable

14

COWL ASSY, UNDER RH | E3,E28,E33 FOR CY9

94407-40F10-CY9

Unavailable

14

COWL ASSY, UNDER RH | E28 FOR M4L

94407-40F10-FP2

Unavailable

15

COWL ASSY, UNDER LH | E3,E28,E33 FOR CY9

94408-40F10-CY9

Unavailable

15

COWL ASSY, UNDER LH | E28 FOR M4L; Includes Item(s) 16 - 22

94408-40F10-FP2

Unavailable

16

TAPE SET, UPPER RH | FOR CY9

68180-40F30-FU2

Unavailable

16

TAPE SET, UPPER RH | FOR FP2

68180-40F30-FU3

Unavailable

17

TAPE SET, UPPER LH | FOR CY9

68190-40F30-FU2

Unavailable

17

TAPE SET, UPPER LH | FOR FP2

68190-40F30-FU3

Unavailable

18

EMBLEM, "GSXR" RH | FOR CY9

68181-40F30-YT5

Unavailable

18

EMBLEM, "GSXR" RH | FOR FP2

68181-40F30-YT6

Unavailable

19

EMBLEM, "GSXR" LH | FOR CY9

68191-40F30-YT5

Unavailable

19

EMBLEM, "GSXR" LH | FOR FP2

68191-40F30-YT6

Unavailable

20

TAPE SET, LOWER RH (BLACK) | FOR CY9

68180-40F40-33J

Unavailable

20

TAPE SET, LOWER RH (BLACK) | FOR FP2

68180-40F40-Y7L

Unavailable

21

TAPE SET, LOWER LH (BLACK) | FOR CY9

68190-40F40-33J

Unavailable

21

TAPE SET, LOWER LH (BLACK) | FOR FP2

68190-40F40-Y7L

Unavailable

22

EMBLEM, "SUZUKI" (BLACK) | FOR CY9

61441-92E20-33J

Unavailable

22

EMBLEM, "SUZUKI" (RED) | FOR FP2

61441-92E20-Y7M

Unavailable

23

COWL, UNDER INNER RH

94461-40F00

Unavailable

24

COWL, UNDER INNER LH

94462-40F00

Unavailable

25

COWL, UNDER CENTER | Includes Item(s) 26 - 28

94490-40F00

Unavailable

26

NET

94491-40F00

Unavailable

27

CUSHION

09320-04501

$2.61

28

NUT

09148-03011

$1.96
