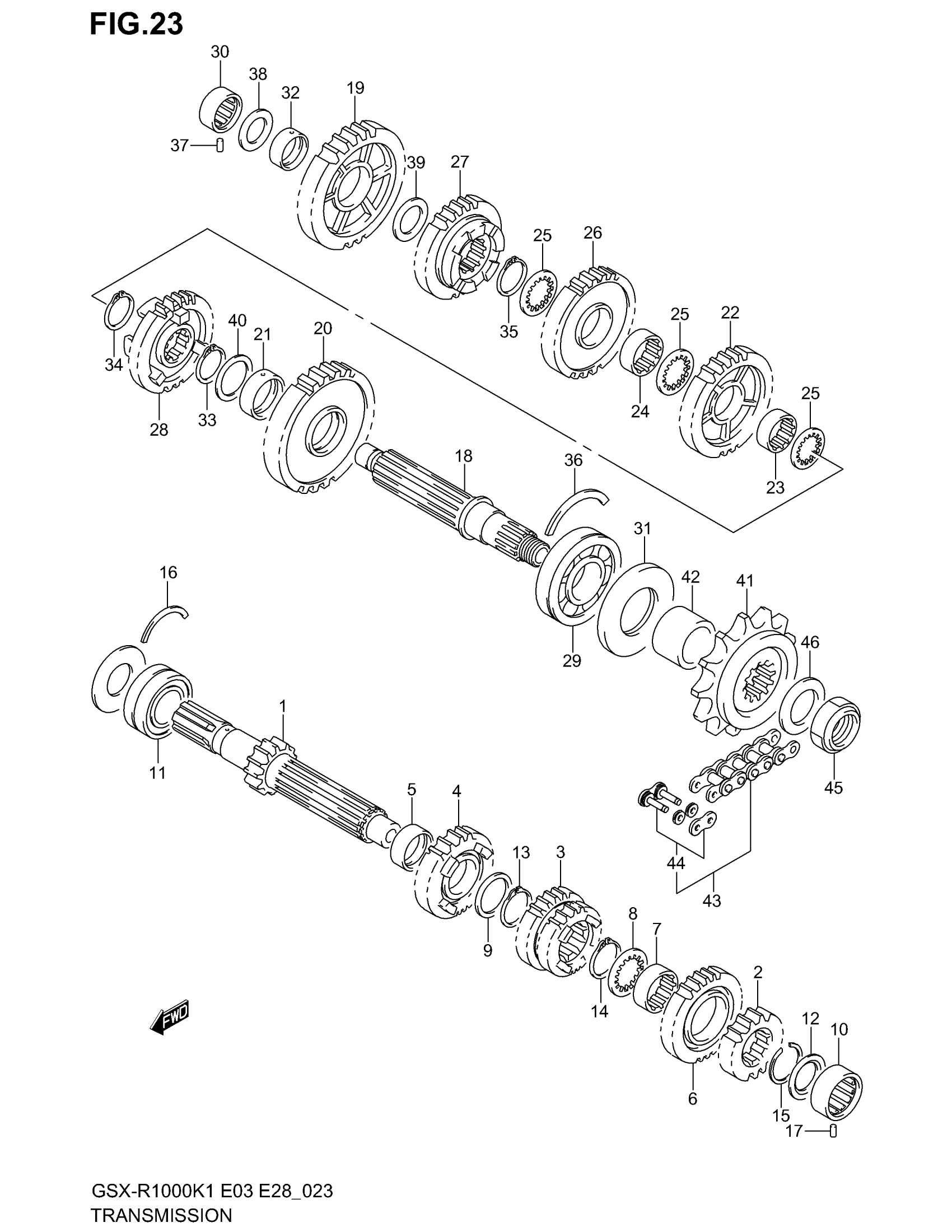

Suzuki GSX-R1000 (2002) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:16)

24120-40F00

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-40F00

Unavailable

3

GEAR, 3RD & 4TH (NT:22/20)

24231-40F00

$293.05

4

GEAR, 5TH DRIVE (NT:23)

24251-40F00

Unavailable

5

BUSH 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:24)

24261-40F00

Unavailable

7

BUSH, 6TH DRIVE GEAR

24262-35F00

$28.62

8

WASHER, 6TH DRIVE

09167-27003

$6.80

9

WASHER, 5TH DRIVE | 27X36X2.5

09181-27014

$6.32

10

BEARING, CNTR LH | 20X34X13.5

09263-20087

$42.65

11

BEARING, CNTR RH | 25X52X20.6

09267-25013

$106.33

12

SEAL, OIL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP, 5TH DRIVE

09380-27006

$2.73

14

CIRCLIP, 6TH DRIVE

09380-27006

$2.73

15

CIRCLIP, 2ND DRIVE

09380-27004

$3.70

16

C RING, CNTR RH

09390-58001

$3.42

17

PIN, CNTR LH

09261-06003

$1.49

18

SHAFT, DRIVE

24131-40F00

$326.27

19

GEAR, 1ST DRIVEN (NT:43)

24311-40F00

Unavailable

20

GEAR, 2ND DRIVEN (NT:39)

24321-40F00

Unavailable

21

BUSH, 2ND DRIVEN

24322-02F01

$21.52

22

GEAR, 3RD DRIVEN (NT:37)

24331-40F00

Unavailable

23

BUSH, 3RD DRIVEN

24262-17E01

$38.62

24

BUSH, 4TH DRIVEN GEAR

24262-17E01

$38.62

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$4.99

26

GEAR, 4TH DRIVEN (NT:29)

24341-40F00

Unavailable

27

GEAR, 5TH DRIVEN (NT:30)

24351-40F00

Unavailable

28

GEAR, 6TH DRIVEN (NT:29)

24361-40F00

Unavailable

29

BEARING, DRIVE SHAFT,LH | 28X70X18

09262-28025

$150.62

30

BEARING, DRIVE SHAFT,RH | 20X34X13.5

09263-20087

$42.65

31

SEAL, DRIVE SHAFT,OIL | 36X70X6

09283-36008

$21.28

32

BUSH, 1ST DRIVEN GEAR | 22X26X12

24312-02F00

$28.15

33

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

$2.73

34

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

$2.73

35

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

$2.73

36

C RING, DRIVE SHAFT,LH

09390-70001

$9.77

37

PIN, DRIVE SHAFT,RH

09261-06003

$1.49

38

WASHER, 1ST DRIVEN RH | 20X34X1.0

09181-20251

$2.79

39

WASHER, 1ST DRIVEN LH | 22X34X1.0

09181-22223

$3.12

40

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$3.68

41

SPROCKET, ENGINE (NT:17)

27510-21A31

$97.15

42

SPACER, ENGINE SPROCKET

27531-40F00

$28.62

43

CHAIN,DRIVE (DI | MODEL K1 This part replaces 27600-40F00-110.

27600-40F21-110

Unavailable

43

CHAIN,DRIVE (DI | MODEL K2; Includes Item(s) 44 - 44 This part replaces 27600-40F01-110.

27600-40F21-110

Unavailable

44

JOINT SET | MODEL K1 This part replaces 27620-40F00.

27620-40F01

Unavailable

44

JOINT SET | MODEL K2

27620-40F01

Unavailable

45

NUT, ENGINE SPROCKET

09159-20004

$15.67

46

WASHER (25X40X1.4)

09160-25035

$4.35
