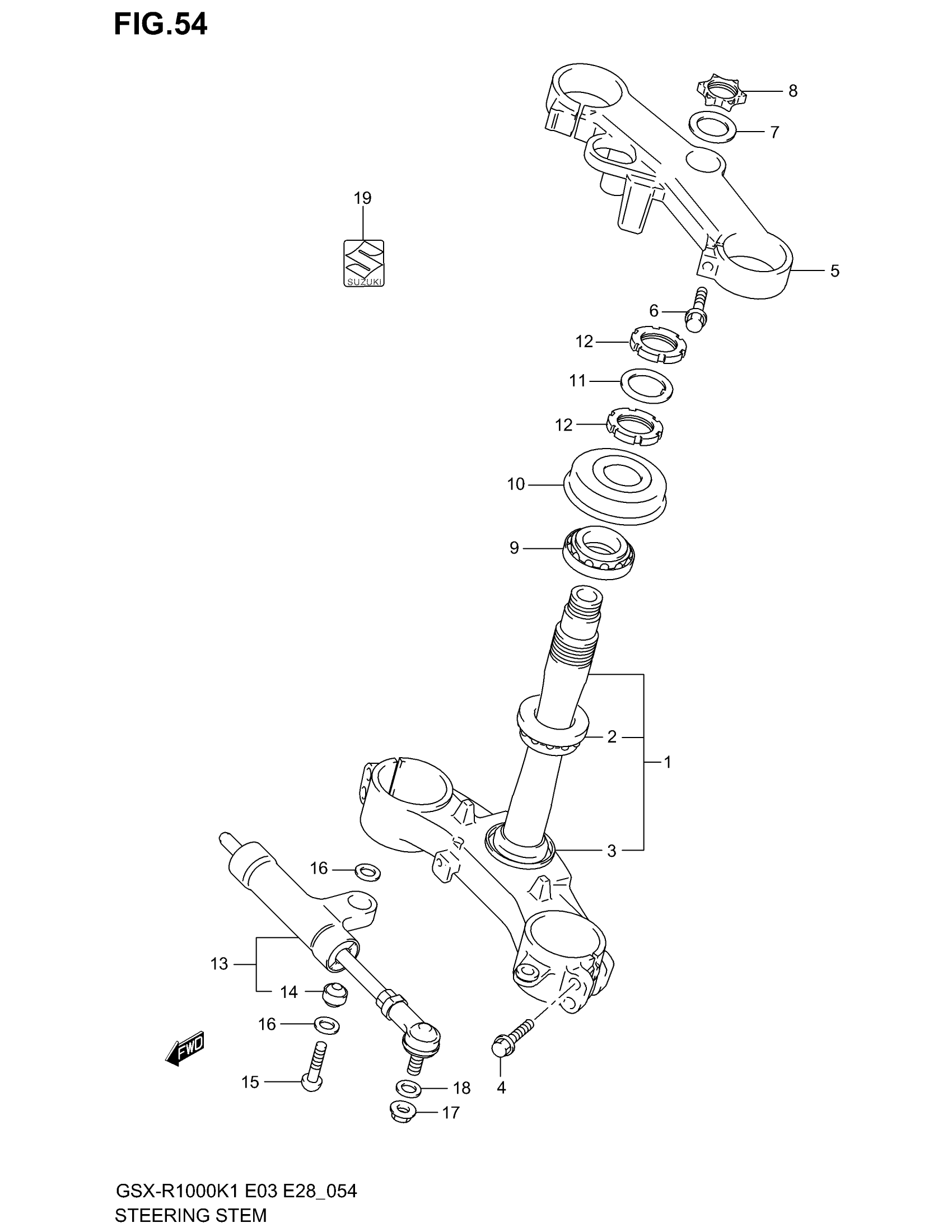

Suzuki GSX-R1000 (2002) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-40F00

Unavailable

2

BEARING (30X55X17)

09267-30010

$48.11

3

SEAL, STEM LOWER

51644-12C00

$9.44

4

BOLT This part replaces 51328-40F00.

51328-31FA0

$6.23

5

HEAD, STEERING STEM

51311-40F00

Unavailable

6

BOLT This part replaces 51328-40F00.

51328-31FA0

$6.23

7

WASHER

51356-27C00

$6.75

8

NUT

51353-24F00

$43.68

9

BEARING (30X55X17)

09267-30010

$48.11

10

SEAL, STEERING UPR DUST

51643-33E00

$16.01

11

WASHER, STEM

51641-33E00

$6.20

12

NUT, STEM

51631-33E00

$23.64

13

DAMPER ASSY, STEERING | Includes Item(s) 14

51750-40F10

Unavailable

14

BEARING (8X17.5X11)

09269-08003

$51.13

15

BOLT

09106-08130

$4.45

16

SEAL, DUST

64339-14101

$7.95

17

NUT

08319-31087

$2.32

18

WASHER, STRG DAMPER

09160-08059

$1.68

19

EMBLEM, "S"

68281-35F00

$16.45
