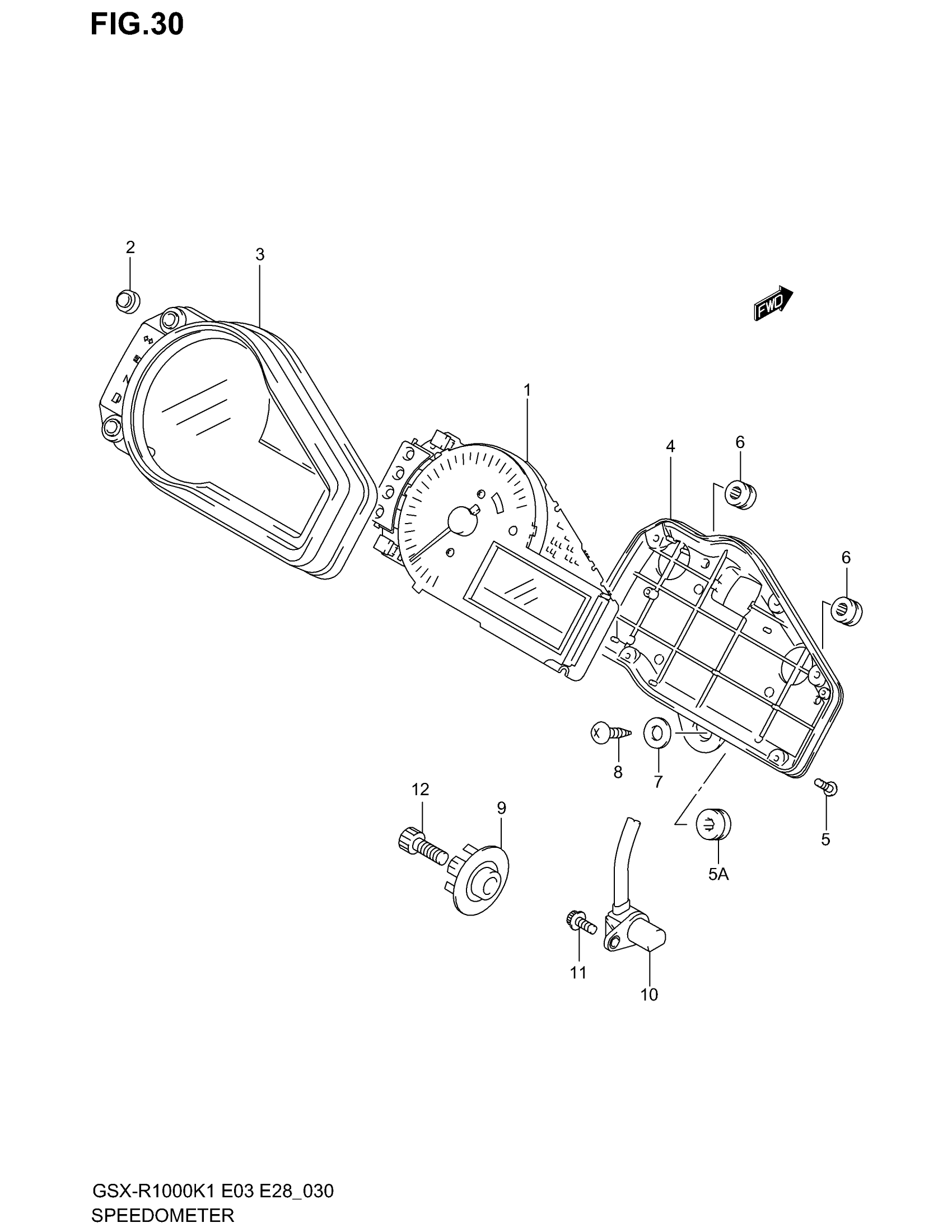

Suzuki GSX-R1000 (2002) SPEEDOMETER Diagram

#

Description
Price

1

SPEED & TACHOMETER ASSY (MILE) | MODEL K1 E3

34120-40F20

Unavailable

1

SPEED & TACHOMETER ASSY (MILE) | MODEL K2 E3

34120-40F50

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | MODEL K1 E28

34120-40F00

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | MODEL K2 E28

34120-40F30

Unavailable

2

SWITCH, GUM

34124-24F00

$8.83

3

CASE, UPPER

34150-40F00

Unavailable

4

CASE, LOWER

34111-35F00

Unavailable

5

SCREW (3X16)

34383-35F00

$3.23

5A

CUSHION, METER This part replaces 34995-33E00.

34955-33E00

$3.56

6

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

7

WASHER, METER (5.5X16X1.2)

09160-05037

$1.49

8

SCREW This part replaces 03512-05163.

03511-0516A

$1.86

9

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

10

SENSOR, SPEED

34990-35F00

$127.72

11

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

12

BOLT This part replaces 07130-08253.

07130-0825B

$3.37
