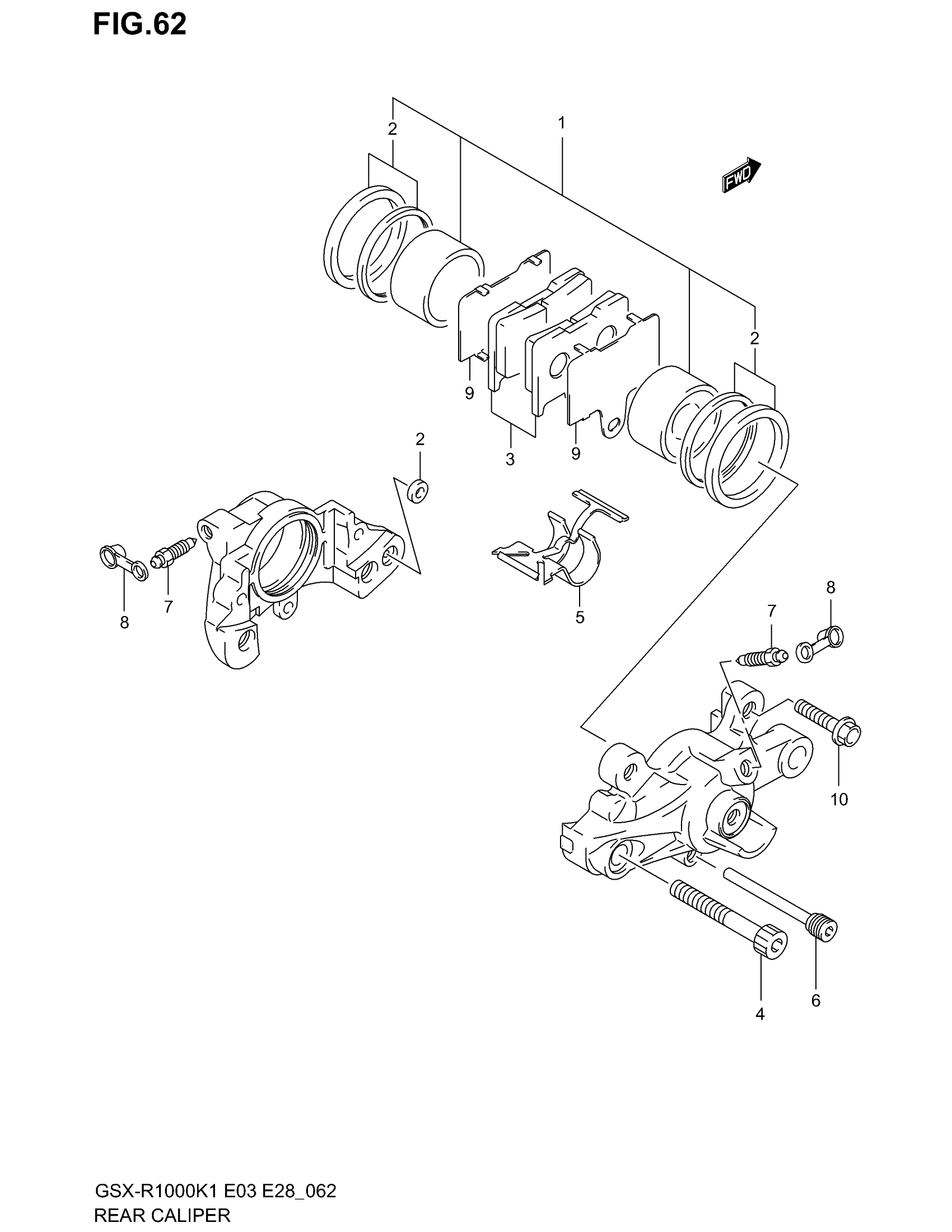

Suzuki GSX-R1000 (2002) REAR CALIPER Diagram

#

Description
Price

CALIPER ASSY, R | Includes Item(s) 1 - 9 This part replaces 69100-40F01.

69100-40F01-999

Unavailable

1

PISTON SET

69100-40811

$82.37

2

SEAL SET, PISTON

69100-14880

$33.92

3

PAD & SHIM SET This part replaces 69100-40820.

69100-40840

$44.06

4

BOLT

69145-40F00

$20.37

5

SPRING

69315-40F00

$22.35

6

PIN

69141-40F00

$27.76

7

BLEEDER

59121-01A00

$7.99

8

CAP

59122-01A00

$3.97

9

SHIM, PAD

69171-40F00

$19.42

10

BOLT

09103-08359

$3.44
