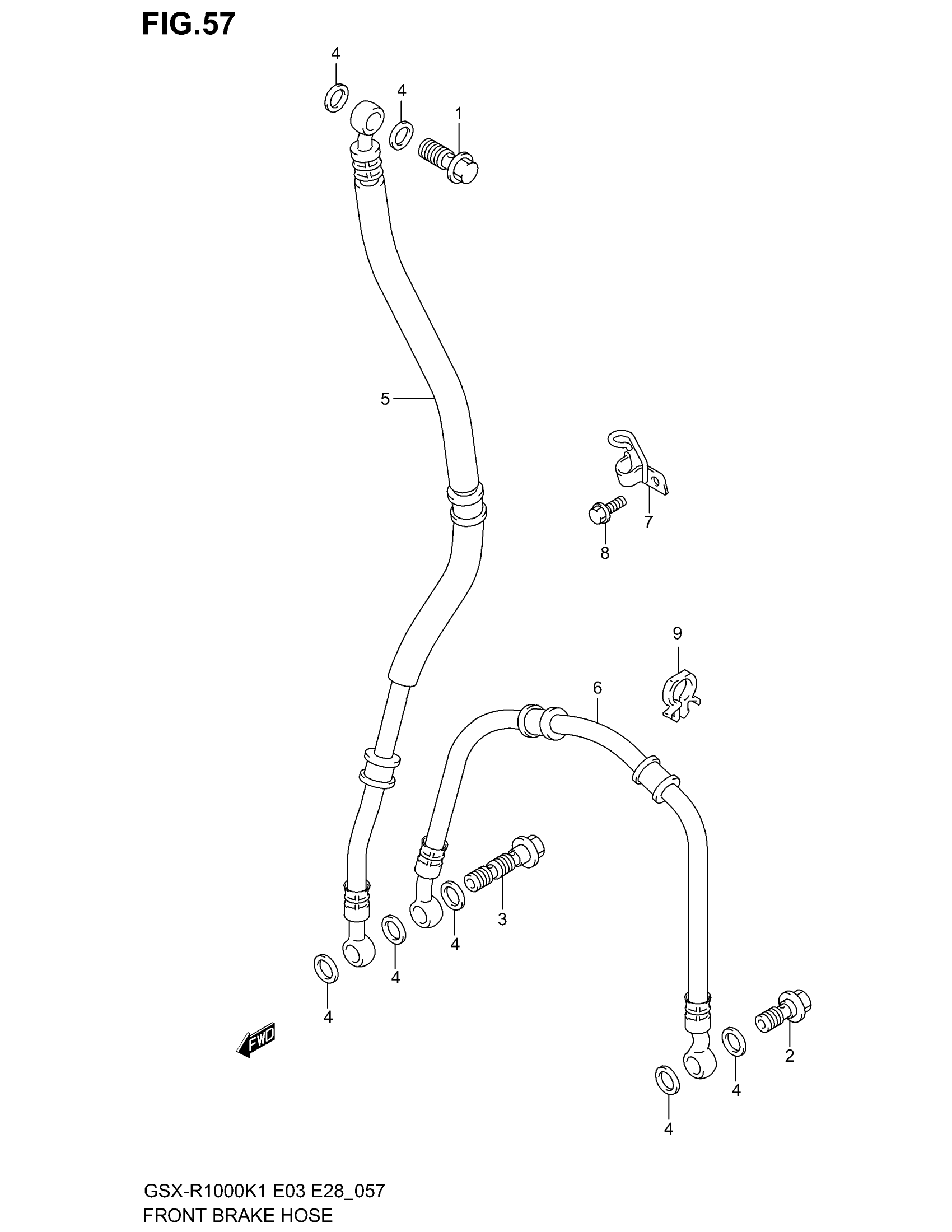

Suzuki GSX-R1000 (2002) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10042.

09360-10062

$5.81

2

UNION This part replaces 09360-10042.

09360-10062

$5.81

3

UNION This part replaces 09360-10044.

09360-10064

$5.81

4

WASHER (10X15X1.5)

09161-10009

$1.83

5

HOSE, FRONT BRAKE NO.1

59480-40F00

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-40F00

Unavailable

7

CLAMP, BRAKE HOSE NO.1

59260-40F00

$22.68

8

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

9

CLAMP, BRAKE HOSE NO.2

09403-14304

$2.95
