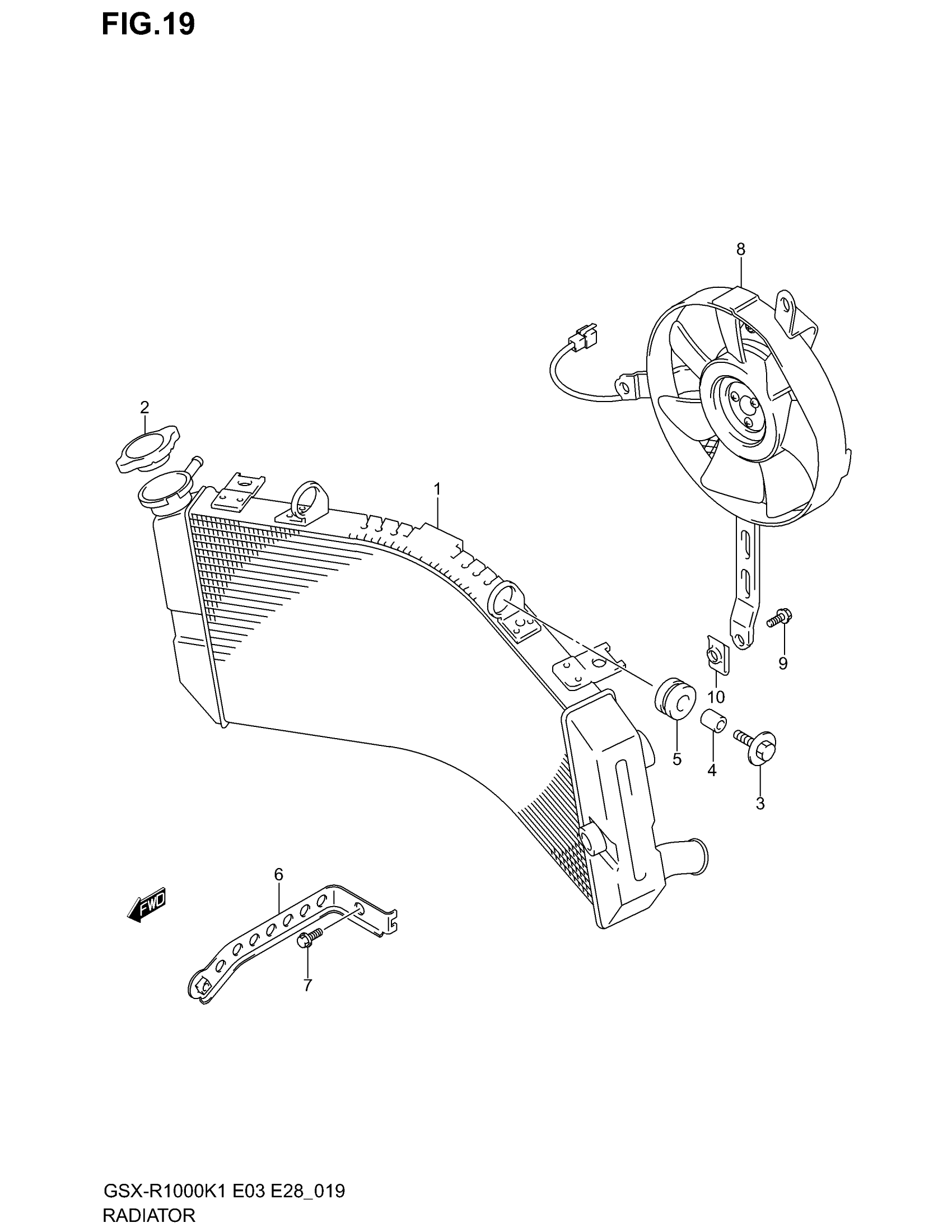

Suzuki GSX-R1000 (2002) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER | MODEL K1 This part replaces 17710-40F00.

17710-40F10

Unavailable

1

RADIATOR ASSY, WATER | MODEL K2

17710-40F10

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

BOLT (6X20)

09118-06097

$2.50

4

SPACER

09180-06290

$2.35

4

SPACER, LOWER

09180-06293

$2.58

5

CUSHION

09320-10042

$3.12

6

BRACKET, RADIATOR LOWER

17750-35F01

$11.98

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

FAN ASSY, RADIATOR RH

17810-40F00

Unavailable

9

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

10

NUT

09148-06015

$3.04
