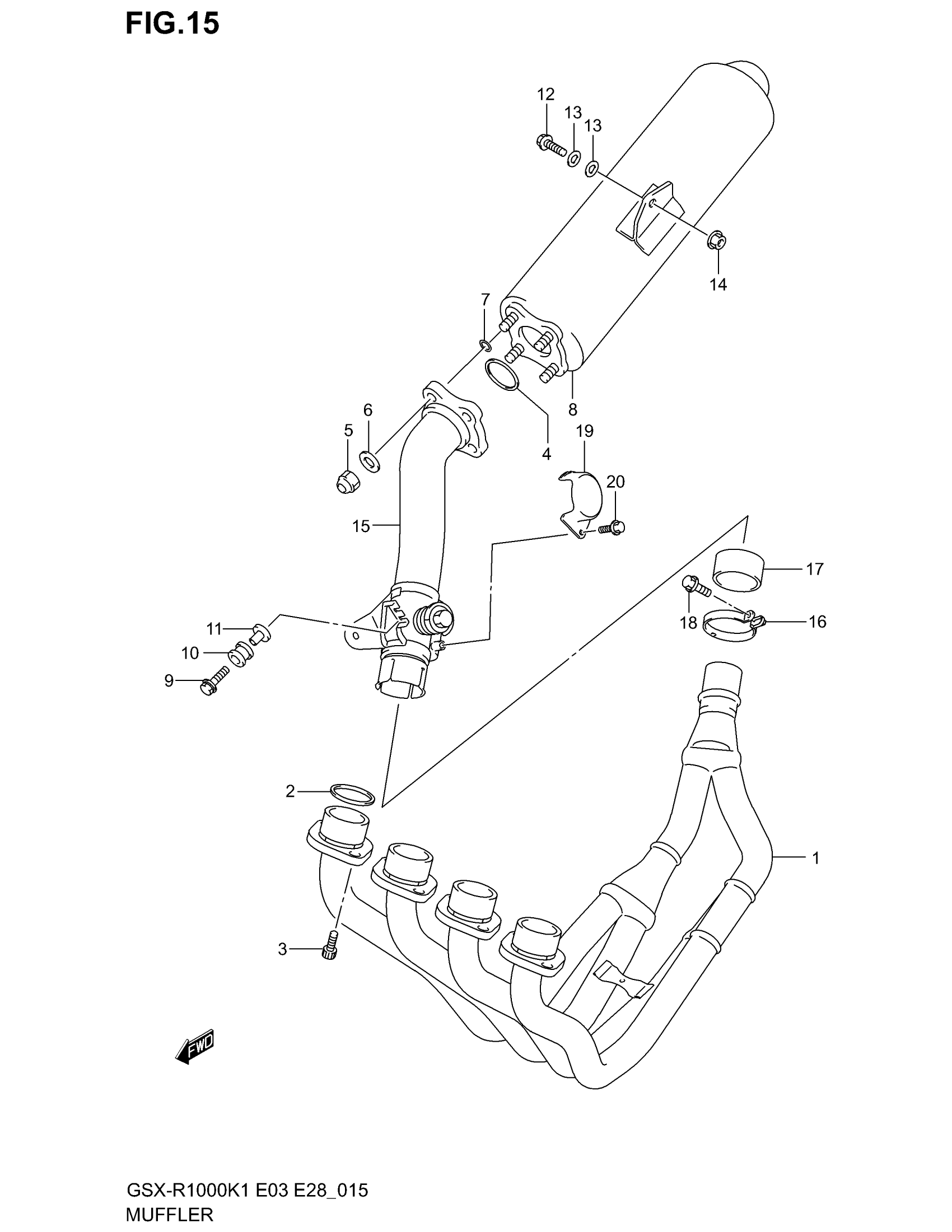

Suzuki GSX-R1000 (2002) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-40F00

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

GASKET

14181-02F00

$6.93

5

NUT

09159-08116

$9.00

6

WASHER

09160-08059

$1.68

7

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

8

MUFFLER ASSY

14310-40F00-H01

Unavailable

9

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

10

CUSHION

09320-12048

$5.11

11

SPACER

09180-08152

$5.83

12

BOLT (8X35)

09103-08365

$3.91

13

WASHER | MODEL K1 This part replaces 09160-08131.

09160-08130

$2.03

13

WASHER | MODEL K2

09160-08081

$2.56

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97

15

JOINT | MODEL K1

14200-40F00

Unavailable

15

JOINT | MODEL K2

14200-40F10

Unavailable

16

CLAMP

14459-40F00

$25.25

17

JOINT | MODEL K1

14771-46E00

$18.68

17

JOINT | MODEL K2

14771-40F00

$29.00

18

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

19

COVER, EXHAUST VALVE

14280-40F00

Unavailable

20

BOLT | MODEL K1

09103-06078

$1.78

20

BOLT | MODEL K2

09106-06075

$2.48
