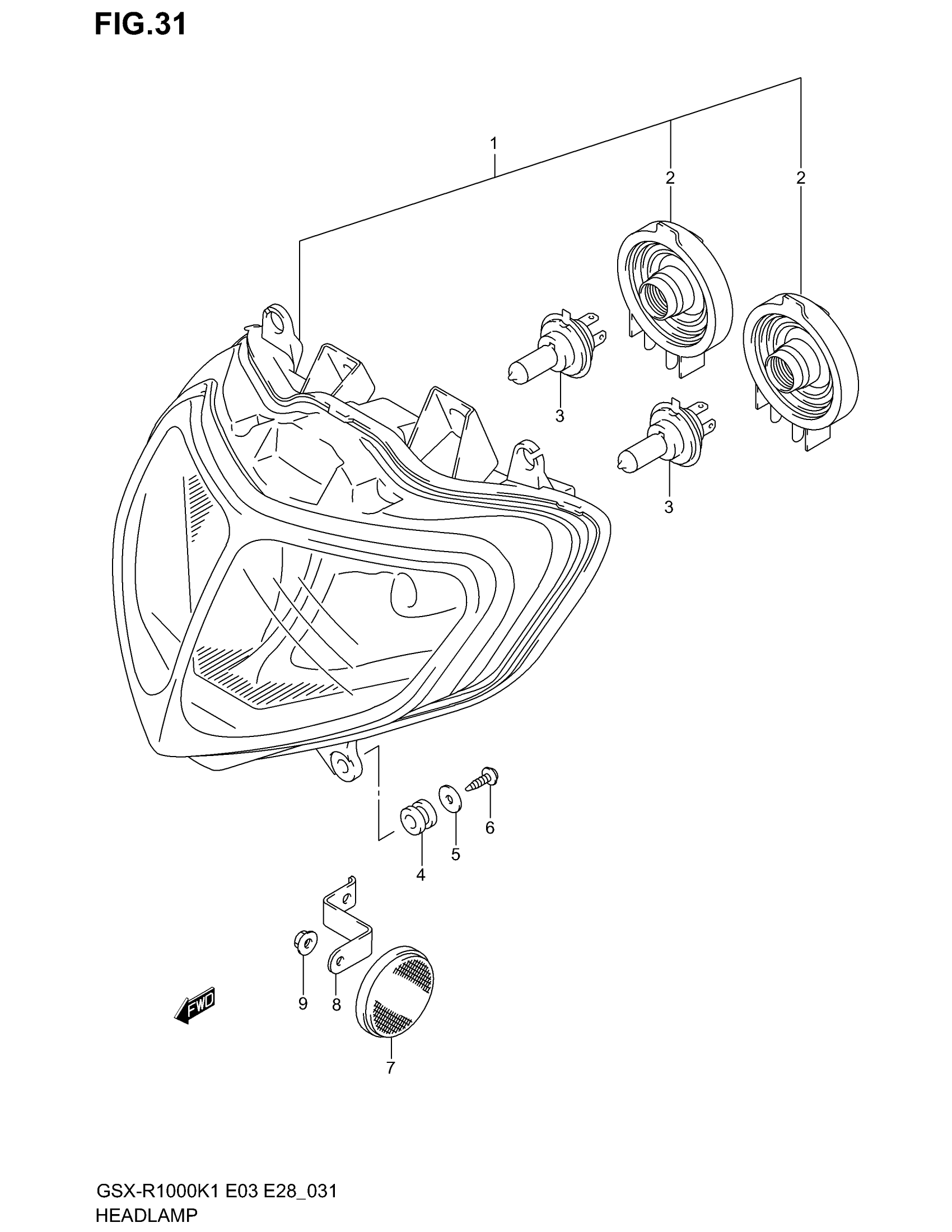

Suzuki GSX-R1000 (2002) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2

35100-35F60-999

Unavailable

2

COVER, SOCKET

35125-77A00

$13.74

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

4

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

5

WASHER (5.5X18X1)

09160-05045

$1.93

6

SCREW This part replaces 09132-05048.

03541-0516B

$1.78

7

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$15.23

8

BRACKET, FRONT SIDE REAR

35956-35F00

Unavailable

9

NUT This part replaces 08316-10053.

08316-1005A

$2.19
