2002 Suzuki GSX-R1000 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

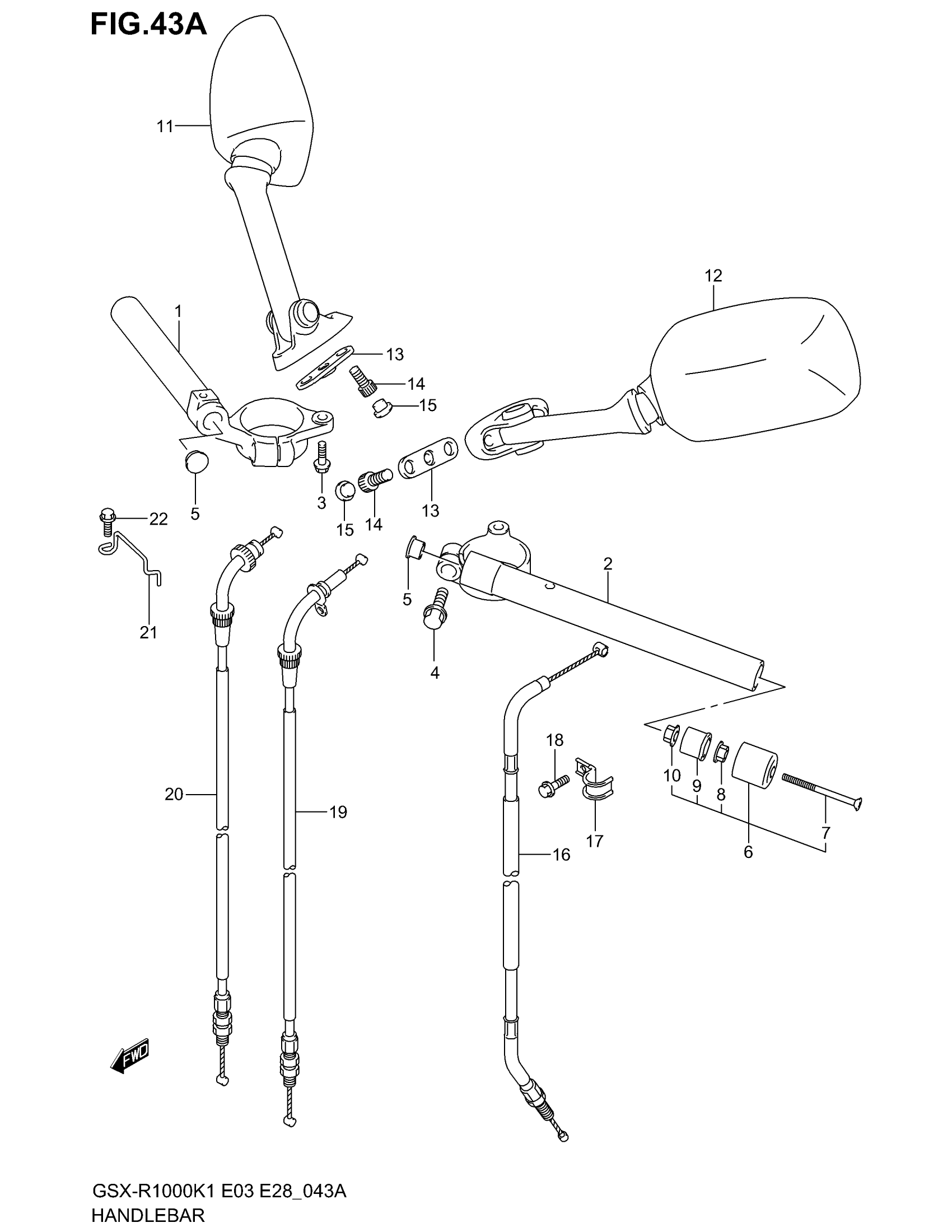

2002 Suzuki GSX-R1000 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56111-35F02

1
Out of stock

2

HANDLEBAR, LH

56151-35F01

1
Out of stock

3

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

4

BOLT, HANDLEBAR

56123-35F00

2
Out of stock

5

CAP

09250-14006

2
Out of stock

6

BALANCER SET,HA | Includes Item(s) 7 - 10 This part replaces 56200-35830.

56200-35831

2
Out of stock

7

2

$3.00

In stock

8

NUT This part replaces 08316-10083.

08316-1008B

2
Out of stock

9

EXPANDER

56272-44500

2
Out of stock

10

NUT

09159-06024

2
Out of stock

11

MIRROR ASSY, REAR VIEW RH

56500-40F10

1
Out of stock

12

MIRROR ASSY, REAR VIEW LH

56600-40F10

1
Out of stock

13

CUSHION

94576-24F00

2
Out of stock

14

BOLT This part replaces 07130-06303.

07130-0630B

4
Out of stock

15

CAP

09250-05009

4
Out of stock

16

CABLE ASSY, CLUTCH

58200-35F10

1
Out of stock

17

GUIDE, CLUTCH CABLE

58622-40F00

1
Out of stock

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

19

CABLE ASSY, THROTTLE NO.1

58300-35F20

1
Out of stock

20

CABLE ASSY, THROTTLE NO.2

58300-35F30

1
Out of stock

21

GUIDE,THROTTLE This part replaces 58621-35F10.

58621-35F1V

1
Out of stock

22

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock
