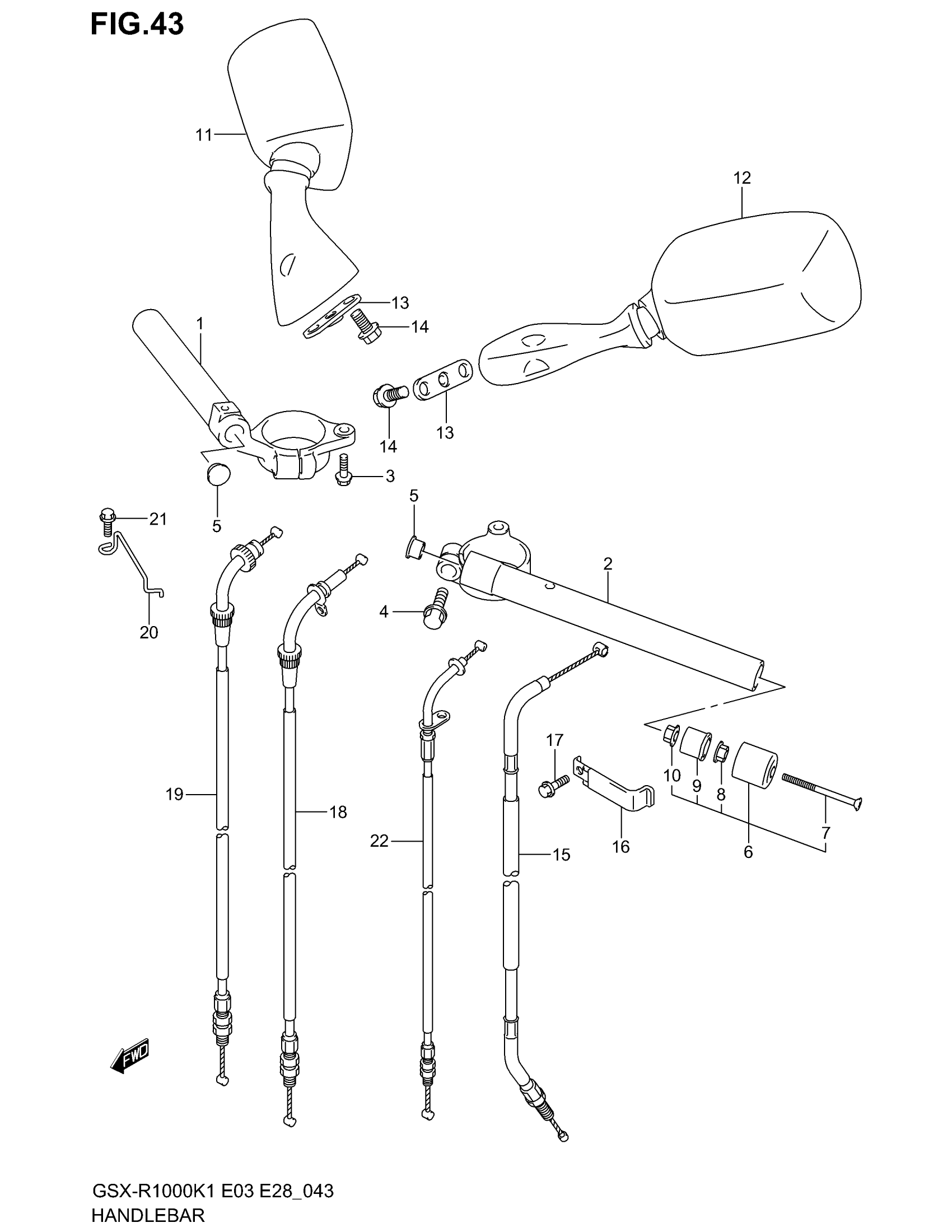

Suzuki GSX-R1000 (2002) HANDLEBAR (MODEL K1) Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-35F02

Unavailable

2

HANDLEBAR, LH

56151-35F01

Unavailable

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

BOLT, HANDLEBAR

56123-35F00

$6.95

5

CAP

09250-14006

$2.00

6

BALANCER SET,HA | Includes Item(s) 7 - 10 This part replaces 56200-35830.

56200-35831

$36.43

7

SCREW This part replaces 02122-06603.

02122-0660B

$2.80

8

NUT This part replaces 08316-10083.

08316-1008B

$2.65

9

EXPANDER

56272-44500

$4.16

10

NUT

09159-06024

$2.12

11

MIRROR ASSY, REAR VIEW RH This part replaces 56500-24F00.

56500-24F20

$289.20

12

MIRROR ASSY, REAR VIEW LH This part replaces 56600-24F00.

56600-24F20

$269.32

13

CUSHION

94576-24F00

$6.14

14

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

15

CABLE ASSY, CLUTCH

58200-40F00

$34.21

16

CLAMP This part replaces 36651-35F00.

36651-35F02

Unavailable

17

BOLT This part replaces 01550-05123.

01550-0512B

$3.12

18

CABLE ASSY, THROTTLE NO.1

58300-35F00

Unavailable

19

CABLE ASSY, THROTTLE NO.2

58300-35F10

Unavailable

20

GUIDE,CLUTCH CA This part replaces 58621-40F00.

58621-40F0V

Unavailable

21

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

22

CABLE, STARTER

58410-35F00

Unavailable
