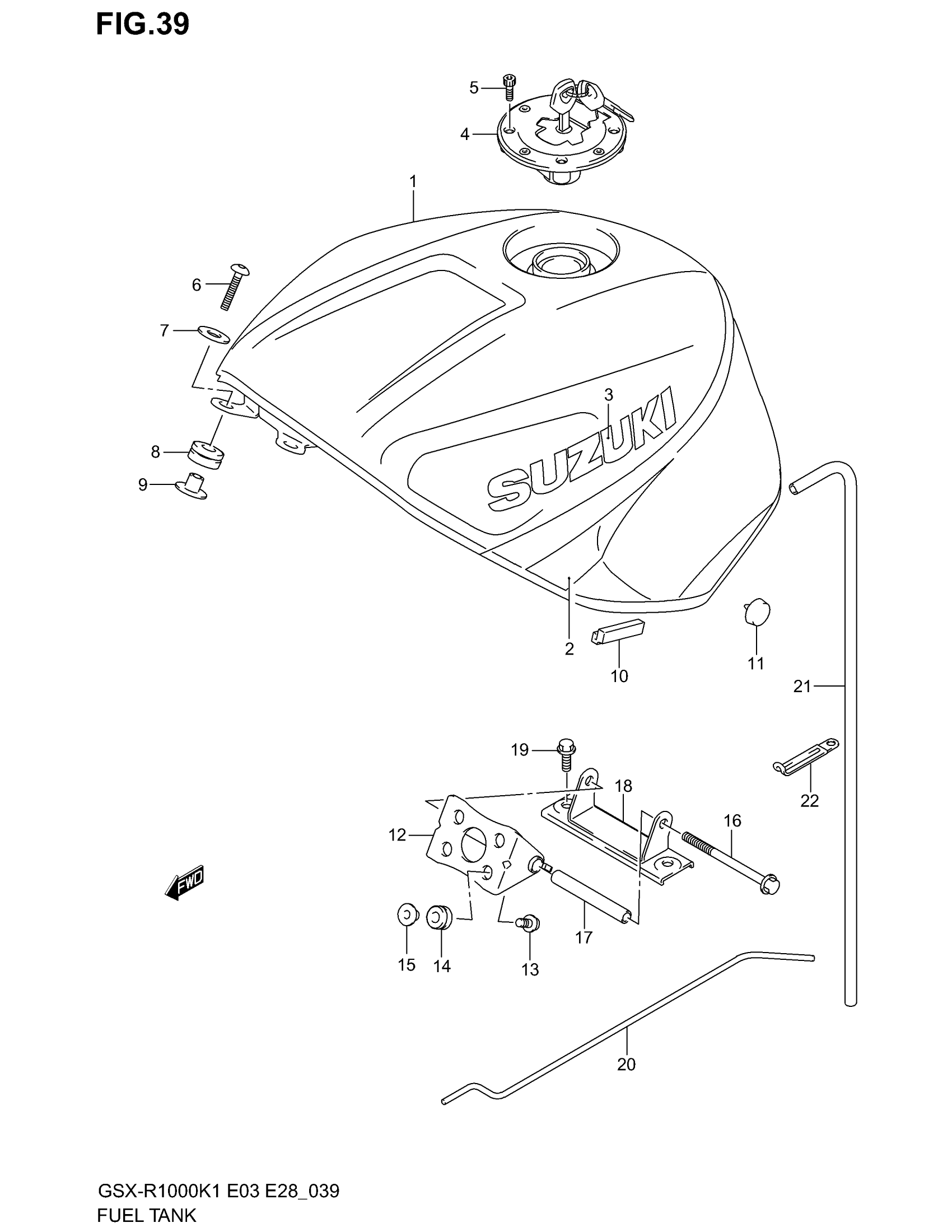

Suzuki GSX-R1000 (2002) FUEL TANK (MODEL K1) Diagram

#

Description
Price

1

TANK ASSY,FUEL | E3,E28 FOR L99 This part replaces 44100-40F00-L99.

44100-40F10-L99

Unavailable

1

TANK ASSY,FUEL | E3,E28 FOR CY9 This part replaces 44100-40F00-3CG.

44100-40F10-3CG

Unavailable

1

TANK ASSY, FUEL | E28 FOR M4L

44100-40F00-M4L

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 FOR L99 This part replaces 44100-40F20-L99.

44100-40F30-L99

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 FOR CY9; Includes Item(s) 2 - 3 This part replaces 44100-40F20-3CG.

44100-40F30-3CG

Unavailable

2

TAPE SET, FUEL TANK | FOR L99

68110-40F00-M18

Unavailable

2

TAPE SET, FUEL TANK | FOR 3CG

68110-40F00-3CG

Unavailable

2

TAPE SET, FUEL TANK | FOR M4L

68110-40F00-M4L

Unavailable

3

EMBLEM (WHITE) | FOR L99

68111-12C30-0JW

$21.47

3

EMBLEM (SILVER) | FOR 3CG,M4L

68111-12C30-YD8

$25.25

4

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$152.27

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

5

BOLT

09106-05017

$2.83

6

BOLT, FRONT

09139-06029

$5.36

7

WASHER

09160-06054

$1.62

8

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

9

SPACER, FRONT

44512-19F00

$7.44

10

CUSHION,FUEL TA This part replaces 44541-35F00.

44541-35F01

$7.19

11

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.58

12

BRACKET, REAR NO.1

44530-35F00

Unavailable

13

BOLT

09116-06152

$2.36

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

15

SPACER

09169-06062

$2.50

16

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

17

SPACER

44561-35F00

$13.88

18

BRACKET, REAR NO.2

44550-35F10

Unavailable

19

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

20

STAY, FUEL TANK

44574-35F00

$15.16

21

HOSE, WATER DRAIN

44423-40F00

Unavailable

22

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
