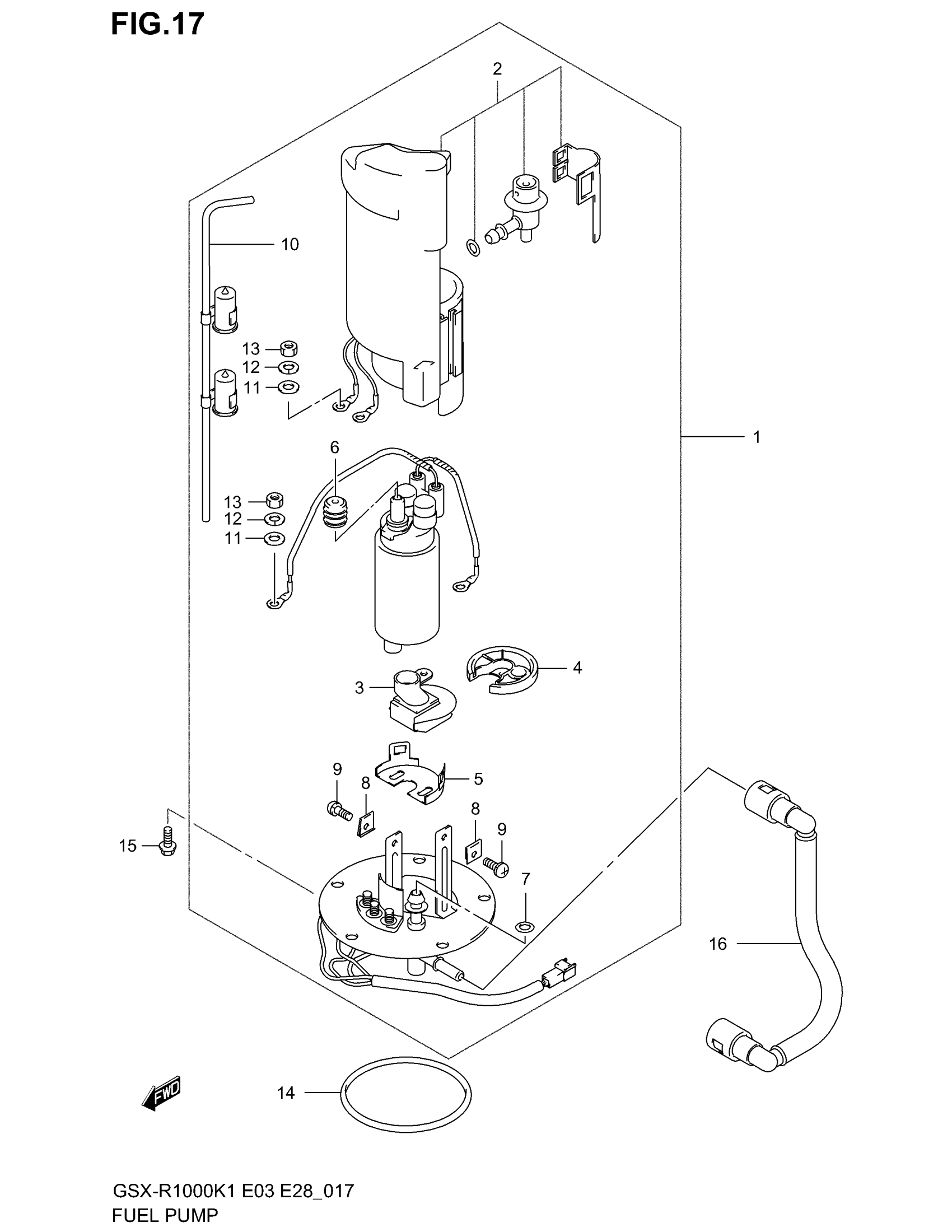

Suzuki GSX-R1000 (2002) FUEL PUMP (MODEL K1) Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13 This part replaces 15100-35F01.

15100-35FV0

Unavailable

2

FILTER SET,FUEL This part replaces 15410-35F00.

15909-35FV0

Unavailable

3

STRAINER, FUEL PUMP

15420-35F01

$100.92

4

CUSHION, FUEL PUMP

15111-35F00

$9.25

5

HOLDER, FUEL PUMP

15112-35F00

Unavailable

6

BUSH, FUEL PUMP

15114-35F00

$15.23

7

O RING

15113-35F00

$8.91

8

NUT

15115-35F00

$10.34

9

SCREW This part replaces 15116-35F00.

15116-35F10

$6.31

10

THERMISTOR

15170-35F00

Unavailable

11

WASHER

15171-35F00

$7.20

12

SPRING WASHER

15172-35F00

$7.20

13

NUT

15173-35F00

Unavailable

14

O-RING

15201-35F00

$27.60

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

16

HOSE, FUEL

15810-35F00

$61.09
