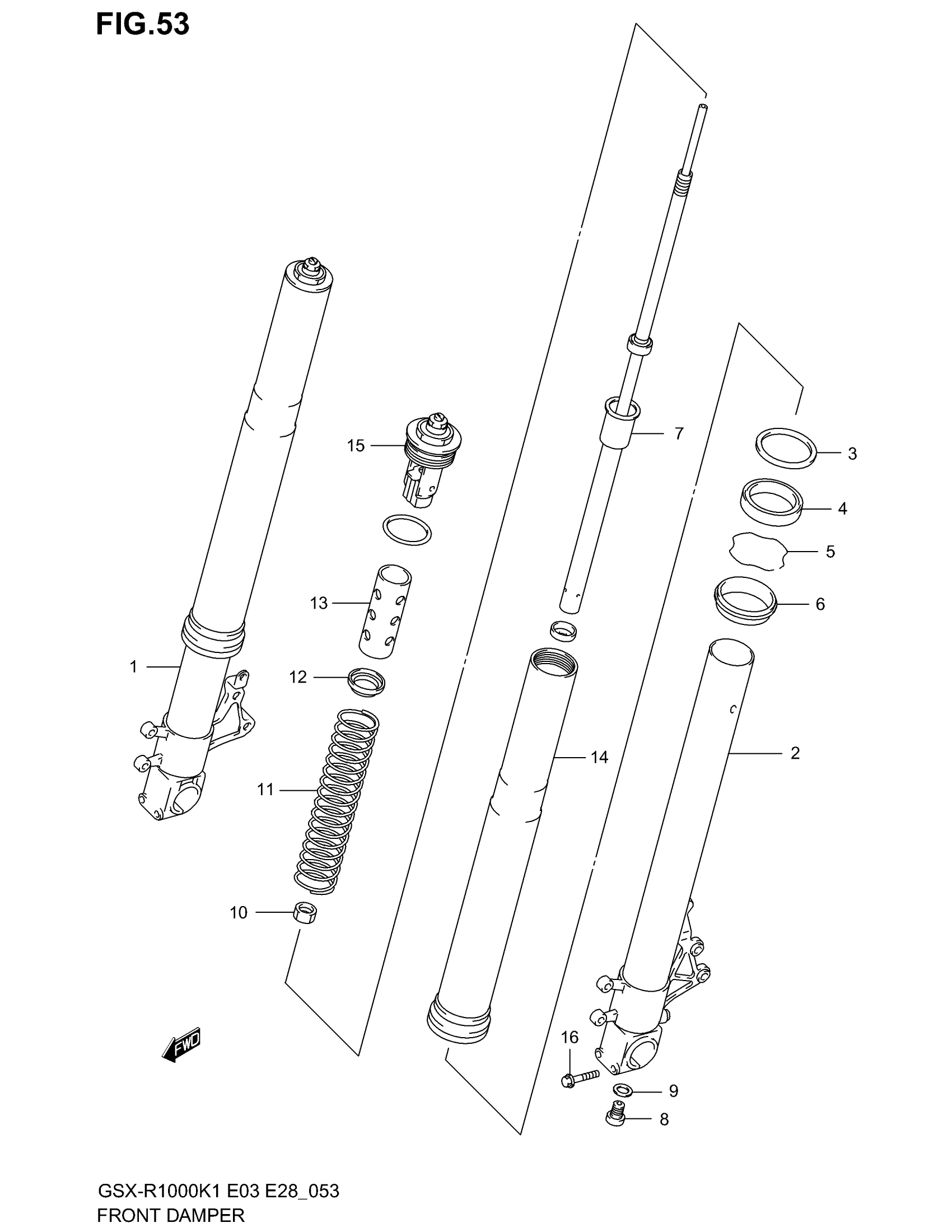

Suzuki GSX-R1000 (2002) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-40F10

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 15

51104-40F00

Unavailable

1

TUBE, INNER RH

51110-40F00

Unavailable

2

TUBE, INNER LH

51120-40F00

Unavailable

3

WASHER

51158-40F00

$12.22

4

SEAL, OIL

51153-40F00

$25.01

5

RING, STOPPER

51156-14200

$5.05

6

SEAL, DUST

51173-02FA0

$26.58

7

CYLINDER

51146-40F00

Unavailable

8

BOLT

51147-40C00

$22.74

9

GASKET

51148-40300

$2.03

10

NUT

51129-24F00

Unavailable

11

SPRING, FRONT

51171-40F00

Unavailable

12

GUIDE, SPRING

51158-24F00

$8.56

13

SPACER, SPRING

51176-40F00

Unavailable

14

TUBE, OUTER (GOLD)

51130-40F00

Unavailable

15

CAP, FRONT FORK

51351-40F00

Unavailable

16

BOLT This part replaces 51328-40F00.

51328-31FA0

$6.23
