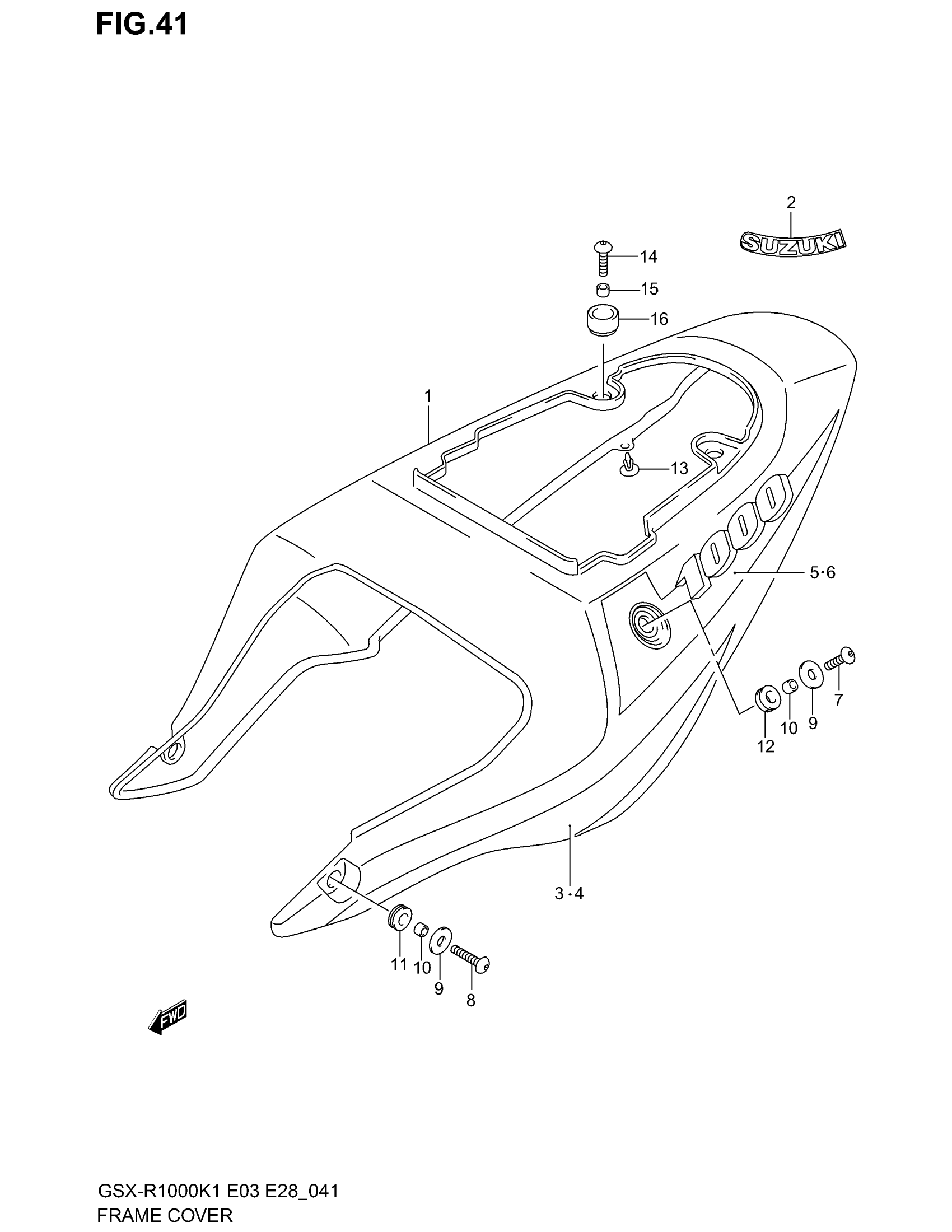

Suzuki GSX-R1000 (2002) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER ASSY, FRAME (BLACK) | E3,E28,E33 FOR L99

47100-40F00-019

Unavailable

1

COVER ASSY, FRAME (BLACK) | E3,E28,E33 FOR CY9

47100-40F00-33J

Unavailable

1

COVER ASSY, FRAME (BLACK) | E28 FOR M4L; Includes Item(s) 2 - 6

47100-40F00-Y7L

Unavailable

2

EMBLEM (WHITE) | FOR 019

68131-39F00-0JW

Unavailable

2

EMBLEM,FRAME CO | FOR 33J This part replaces 68131-39F00-YD8.

68131-39F01-YD8

Unavailable

3

TAPE, FRONT RH | FOR 019

68135-40F00-CF9

Unavailable

3

TAPE, FRONT RH | FOR 33J

68135-40F00-3CG

Unavailable

3

TAPE, FRONT RH | FOR Y7L

68135-40F00-M4L

Unavailable

4

TAPE, FRONT LH | FOR 019

68145-40F00-CF9

Unavailable

4

TAPE, FRONT LH | FOR 33J

68145-40F00-3CG

Unavailable

4

TAPE, FRONT LH | FOR Y7L

68145-40F00-M4L

Unavailable

5

TAPE, REAR RH | FOR 019

68135-40F10-K8S

Unavailable

5

TAPE, REAR RH | FOR 33J

68135-40F10-FV6

Unavailable

5

TAPE, REAR RH | FOR Y7L

68135-40F10-FV7

Unavailable

6

TAPE, REAR LH | FOR 019

68145-40F10-K8S

Unavailable

6

TAPE, REAR LH | FOR 33J

68145-40F10-FV6

Unavailable

6

TAPE, REAR LH | FOR Y7L

68145-40F10-FV7

Unavailable

7

SCREW, SIDE

09139-06029

$5.36

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER

09160-06047

$1.91

10

SPACER

09180-06283

$1.91

11

CUSHION, FRONT

47161-35F00

$4.78

12

CUSHION, SIDE

47161-35F10

$6.76

13

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

14

SCREW, UPPER

09139-06029

$5.36

15

SPACER

09180-06286

$2.50

16

CUSHION, UPPER

09320-10045

$3.76
