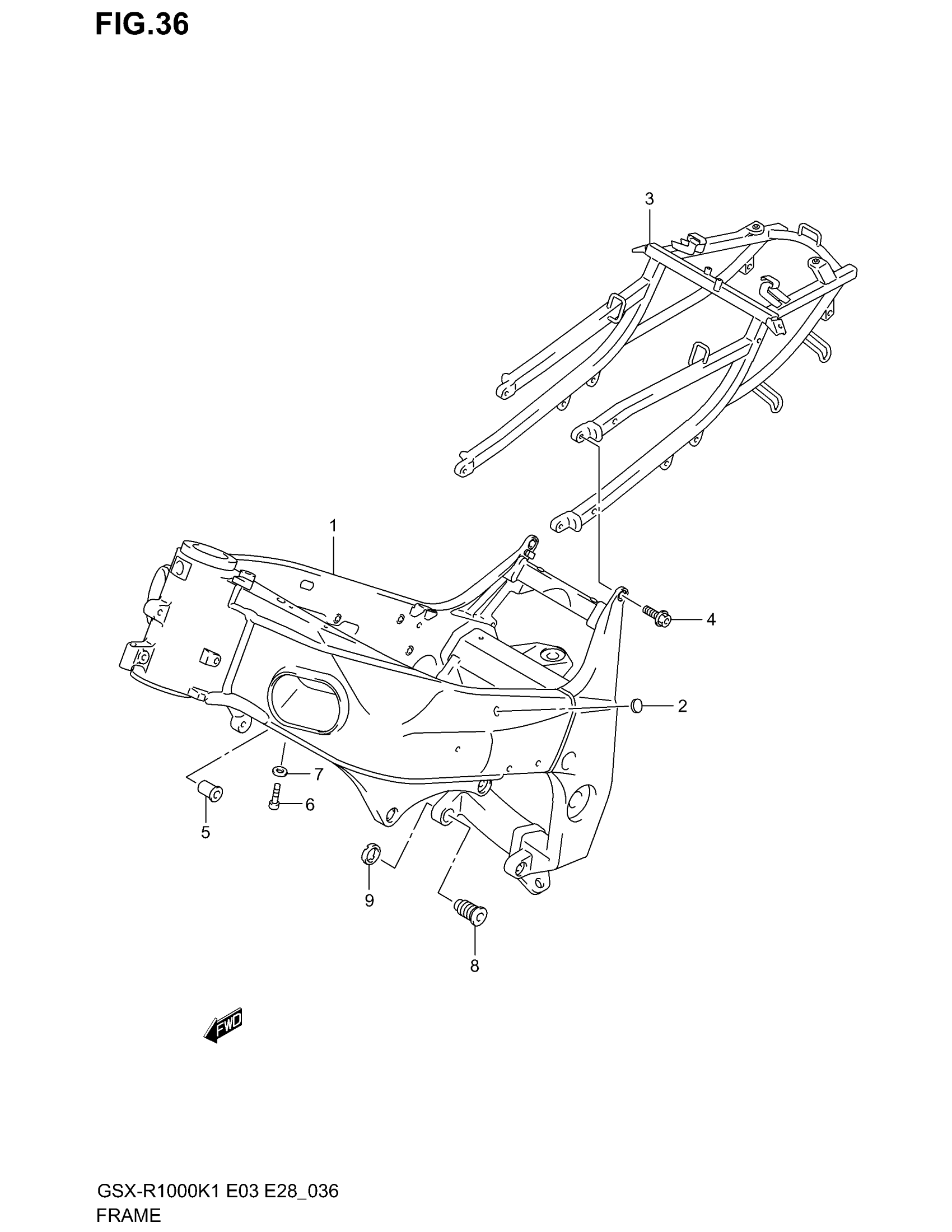

Suzuki GSX-R1000 (2002) FRAME Diagram

#

Description
Price

1

FRAME | MODEL K1 *SEE NOTE This part replaces 41100-40F00.

41100-40F01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K2 *SEE NOTE This part replaces 41100-40F10.

41100-40F11

Unavailable

2

CAP,TANK RAIL This part replaces 43585-33E00.

43585-33E01

$4.25

3

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 41200-40F00.

41200-40F02

Unavailable

3

RAIL,SEAT | MODEL K2 This part replaces 41200-35F20.

41200-35F24

Unavailable

4

BOLT,SEAT RAIL This part replaces 41233-35F00.

41233-35F0V

$10.65

5

SPACER, ENGINE MOUNT | MODEL K1 This part replaces 41911-33E00.

41911-40F01

$22.56

5

SPACER, ENGINE MOUNT | MODEL K2

41911-40F01

$22.56

6

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

7

WASHER

09164-08022

$3.55

8

BOLT, CRANKCASE ADJUST

41921-35F00

$54.83

9

NUT, CRANK CASE ADJUST

41922-33E00

$22.52
