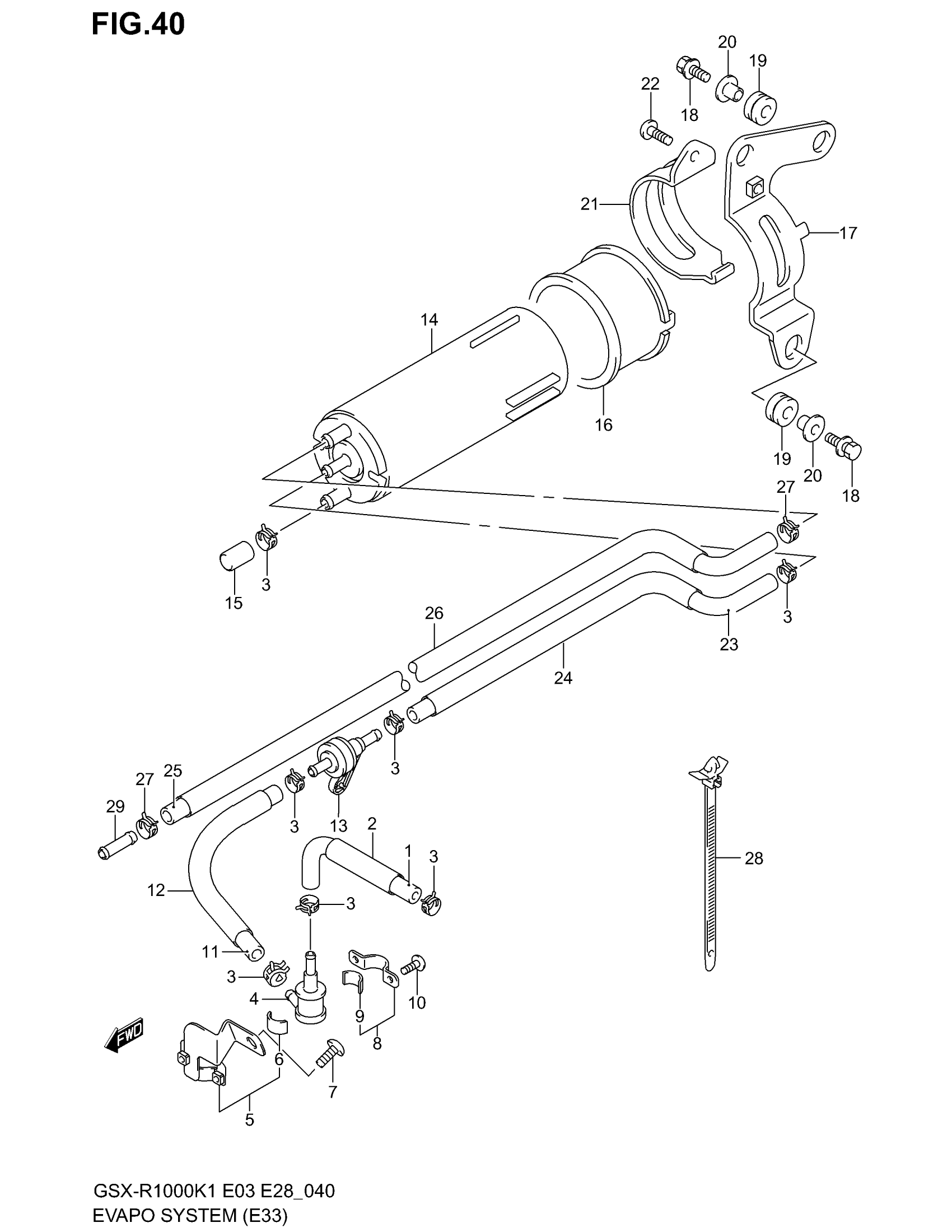

Suzuki GSX-R1000 (2002) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-35F00

Unavailable

2

PROTECTOR | L:600!60

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE, BREATHER VALVE | Includes Item(s) 6

44890-24F00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

11

HOSE, 2 WAY VALVE & BREATHER VALVE | L:600!300

09355-54116-600

$12.06

12

PROTECTOR | L:600!270

09351-14152-600

$10.62

13

VALVE, 2 WAY & CANISTER

44240-24F00

$64.68

14

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

15

CAP

09251-07003

$2.53

16

CUSHION CANISTER

44883-26E00

Unavailable

17

BRACKET, CANISTER

44881-35F00

Unavailable

18

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

19

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

20

SPACER

09169-06062

$2.50

21

HOLDER, CANISTER

44882-35F00

Unavailable

22

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

23

HOSE, CANISTER & 2 WAY VALVE | L:600!210

09355-54116-600

$12.06

24

PROTECTOR | L:600!180

09351-14152-600

$10.62

25

HOSE, CANISTER & PURGE | L:760!600

09359-54112-760

Unavailable

26

PROTECTOR | L:2000!570

09351-14152-00B

Unavailable

27

CLIP

09401-12404

$2.34

28

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

28

CLAMP

09407-18402

$2.19

29

JOINT, PURGE HOSE

09364-06005

$5.72
