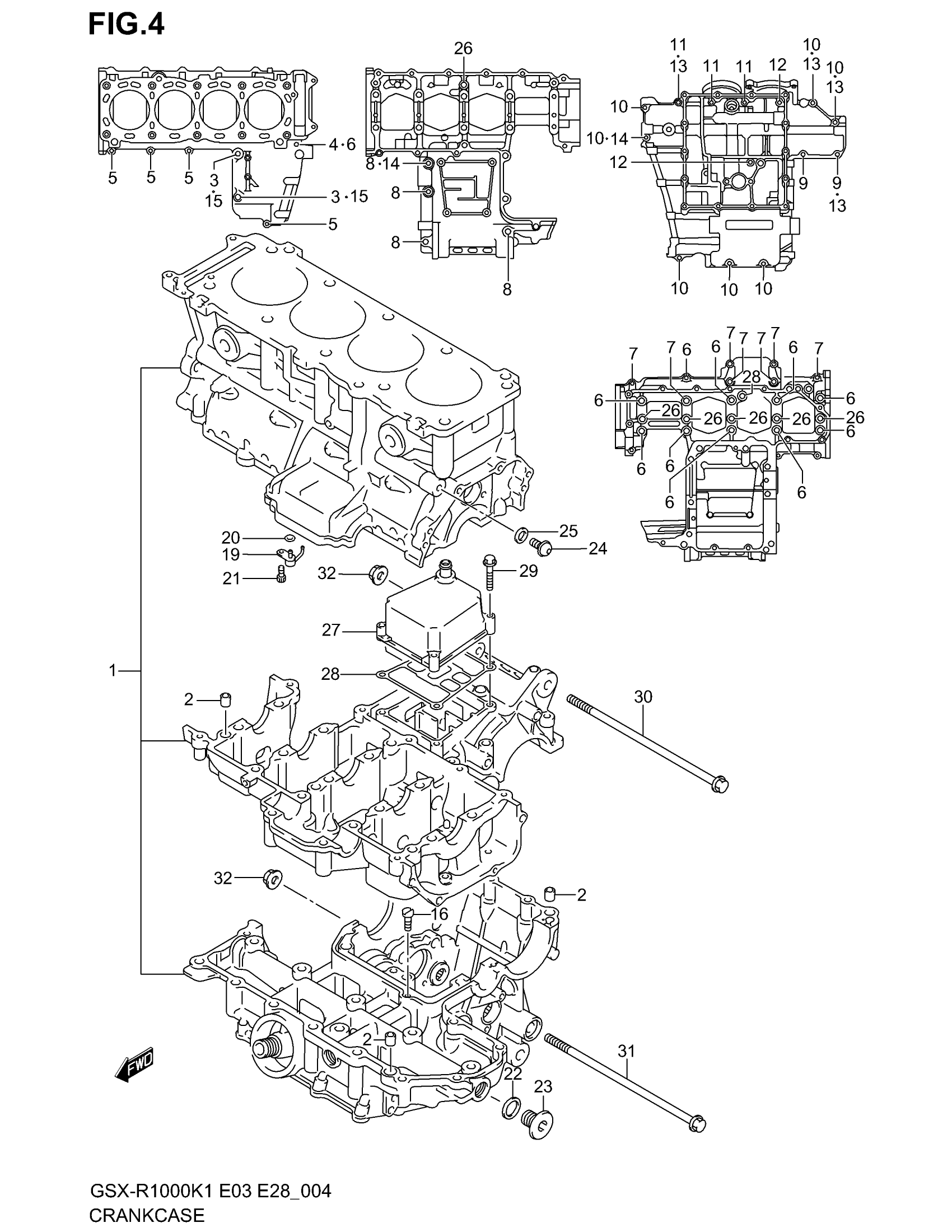

Suzuki GSX-R1000 (2002) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | *SEE NOTE; Includes Item(s) 2 - 18

11302-40811

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT (8X120)

09106-08139

$13.45

4

GASKET (5.8X13X1.2)

09168-06023

$2.35

5

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

6

BOLT (9X95)

09103-09012

$8.76

7

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.49

8

BOLT This part replaces 07120-08653.

07120-0865B

$4.68

9

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

10

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

11

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

12

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

GASKET (8.2X14X1)

09168-08016

$1.65

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

JET

09493-28012

$16.87

17

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7

12228-48B00-0E0

$9.34

18

BEARING, THRUST LH (BLACK) | SEE ILLUSTRATION ON FIG.7

12228-48B00-0B0

$11.57

18

BEARING, THRUST LH (BLUE)

12228-48B00-0C0

$11.35

18

BEARING, THRUST LH (GREEN)

12228-48B00-0D0

$11.78

18

BEARING, THRUST LH (YELLOW)

12228-48B00-0E0

$9.34

18

BEARING, THRUST LH (WHITE)

12228-48B00-0F0

$11.78

18

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$11.78

18

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

19

JET,PISTON COOLING

11390-35F00

$24.30

20

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

21

BOLT, PISTON COOLING

09106-06075

$2.48

22

GASKET

09168-16002

$1.91

23

PLUG, OIL GALLERY | MODEL K1

09248-16012

$4.64

23

PLUG, OIL GALLERY | MODEL K2

09248-16013

$4.82

24

PLUG, OIL GALLERY UPPER LH

09248-10010

$4.17

25

GASKET, OIL GALLERY UPPER LH

09168-10002

$2.13

26

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

27

COVER, BREATHER

11370-35F00

Unavailable

28

GASKET, BREATHER COVER

11484-35F00

$4.94

29

BOLT This part replaces 07120-06303.

07120-0630B

$3.49

30

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

31

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

32

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
