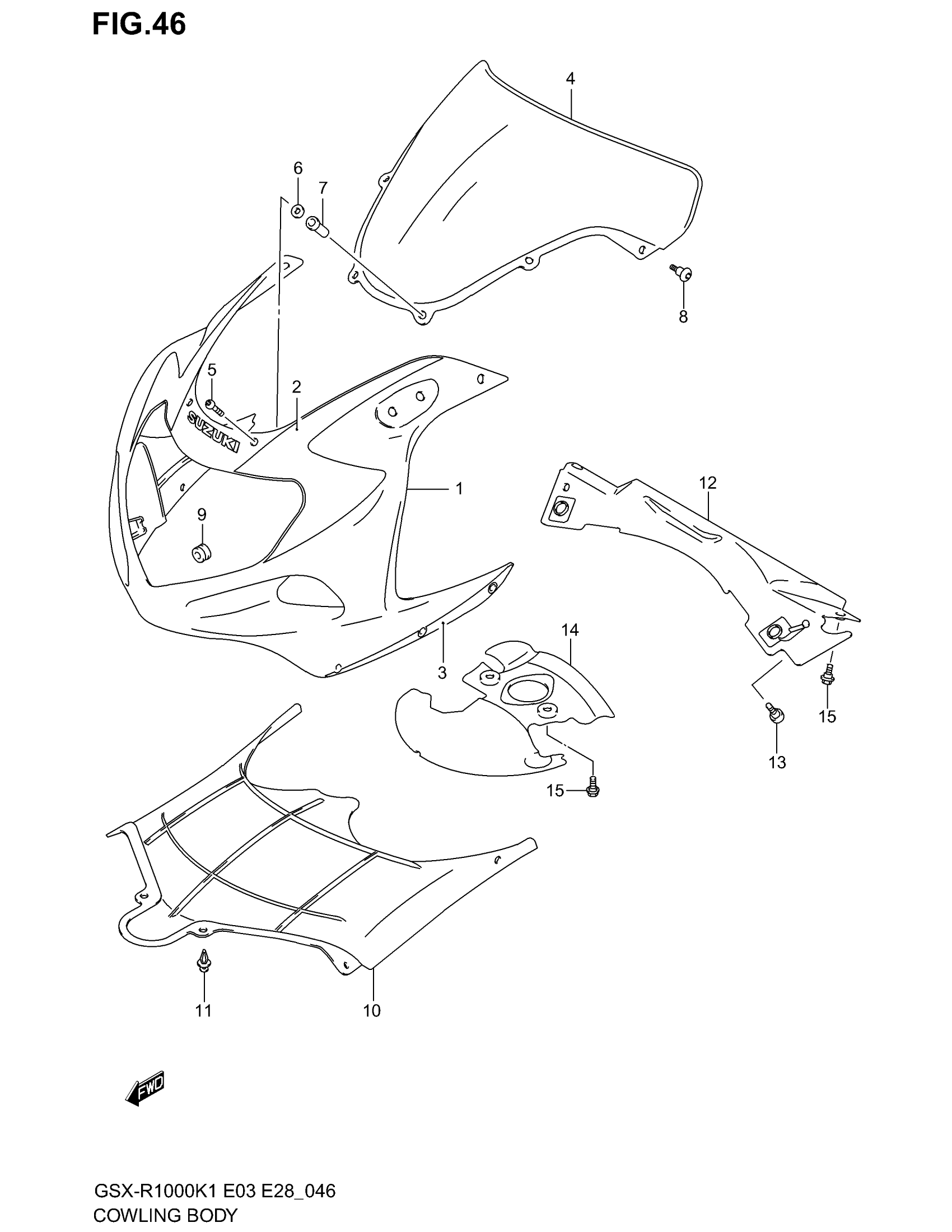

Suzuki GSX-R1000 (2002) COWLING BODY (MODEL K1) Diagram

#

Description
Price

1

COWLING, BODY (BLUE) | E3,E28,E33 FOR L99

94410-40F00-1LF

Unavailable

1

COWLING, BODY (BLACK) | E3,E28,E33 FOR CY9

94410-40F00-17U

Unavailable

1

COWLING, BODY (RED) | E28 FOR M4L; Includes Item(s) 2 - 3

94410-40F00-Y7M

Unavailable

2

TAPE, FRONT | FOR 1LF

68275-40F00-FV4

Unavailable

2

TAPE, FRONT | FOR 17U

68275-40F00-CY9

Unavailable

2

TAPE, FRONT | FOR Y7M

68275-40F00-FU3

Unavailable

3

TAPE SET, SIDE (WHITE) | FOR 1LF

68280-40F00-0JW

Unavailable

3

TAPE SET, SIDE (BLACK) | FOR 17U

68280-40F00-33J

Unavailable

3

TAPE SET, SIDE (BLACK) | FOR Y7M

68280-40F00-Y7L

Unavailable

4

WINDSCREEN

94611-35F00

$292.62

5

SCREW

09139-05025

$2.05

6

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

7

NUT

09159-05019

$7.14

8

SCREW, REAR

09139-05055

$4.26

9

CUSHION

09320-08028

$3.04

10

COVER, BODY COWL

94419-35F00

$47.30

11

CLIP, LID (BLACK)

09409-06314-5PK

$2.78

12

COVER, COWL FRONT LOWER

94457-40F00

Unavailable

13

BOLT, NO.1

09139-05064

$2.57

14

COVER, BRACKET

94458-35F00

Unavailable

15

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60
