2002 Suzuki GSX-R1000 Clutch Diagram

← All diagrams

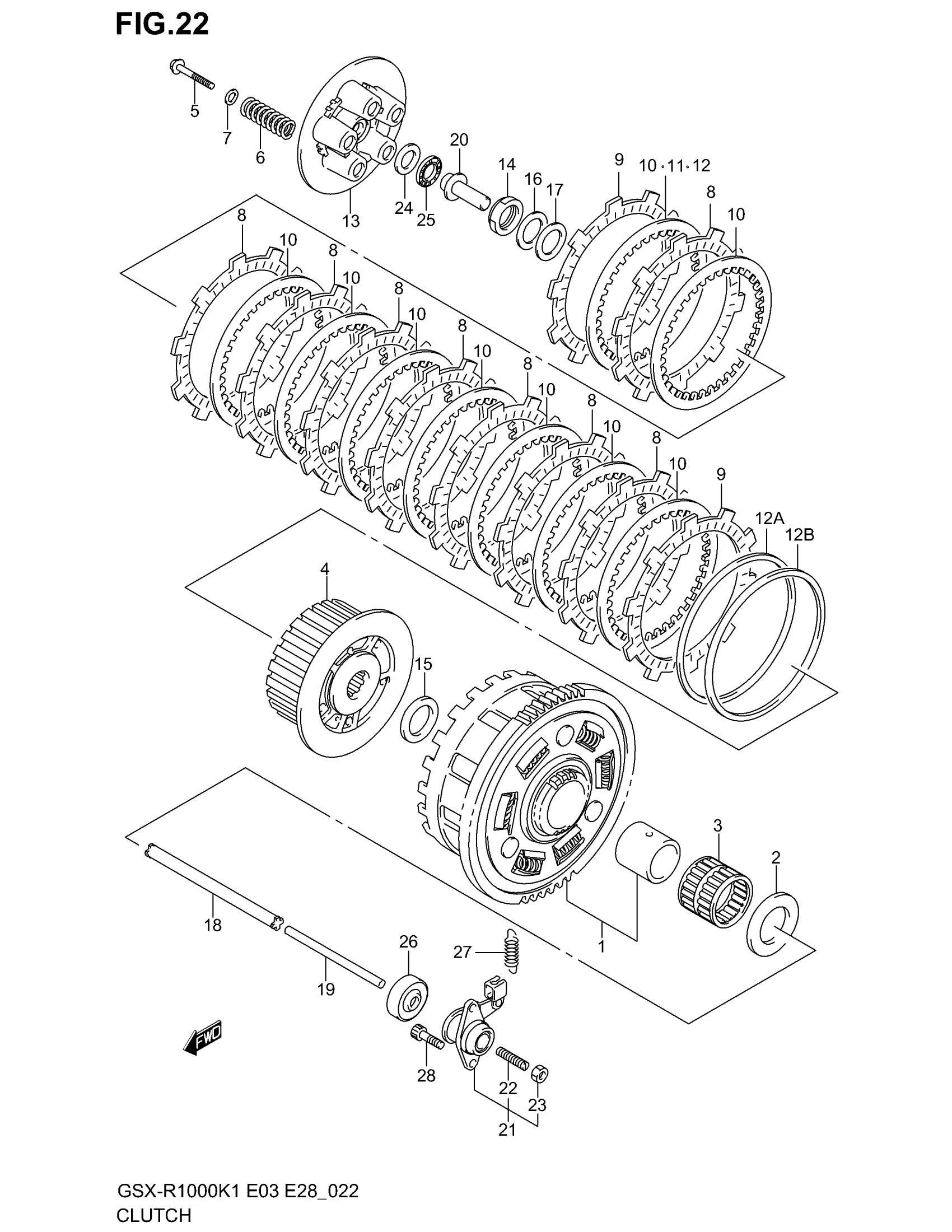

Find the part on the Clutch diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GSX-R1000 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:73 This part replaces 21200-40850.

21200-40860

1
Out of stock

2

WASHER (25X54X2.4)

09160-25073

1
Out of stock

3

BEARING (35X40X35.8)

09263-35017

1
Out of stock

4

HUB, CLUTCH SLEEVE This part replaces 21410-40F00.

21410-40F01

1
Out of stock

5

BOLT,CLUTCH SPRING

21482-40F00

5
Out of stock

6

SPRING, CLUTCH

21413-40F00

5
Out of stock

7

WASHER, CLUTCH SPRING

21414-29F00

5
Out of stock

8

PLATE, CLUTCH DRIVE,NO.1

21441-40F00

8
Out of stock

9

PLATE, CLUTCH DRIVE,NO.2

21441-40F10

2
Out of stock

10

PLATE, CLUTCH DRIVEN | T:2.3

21451-40F00

9
Out of stock

11

PLATE, CLUTCH DRIVEN NO.2 | OPT,T:2.0

21451-40F10

1
Out of stock

12

PLATE, CLUTCH DRIVEN NO.3 | OPT,T:2.6

21451-40F20

1
Out of stock

12A

SEAT, WAVE WASHER | MODEL K2

21471-40F00

1
Out of stock

12B

WASHER, CLUTCH PLATE WAVE | MODEL K2

21472-40F00

1
Out of stock

13

DISC, CLUTCH PRESSURE

21462-40F00

1
Out of stock

14

NUT, CLUTCH SLEEVE HUB

09159-24010

1
Out of stock

15

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

1
Out of stock

16

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

1
Out of stock

17

WASHER, SLEEVE HUB NUT | 25X38X1.0

09181-25223

1
Out of stock

18

ROD, CLUTCH PUSH RH

23110-38B00

1
Out of stock

19

ROD, CLUTCH PUSH LH

23111-35F00

1
Out of stock

20

PIECE, CLUTCH PUSH

23121-31E00

1
Out of stock

21

SCREW ASSY,CLUTCH RELEASE | Includes Item(s) 22 - 23

23200-35F01

1
Out of stock

22

SCREW (6X25)

09134-06010

1
Out of stock

23

.NUT

08310-00067

1
Out of stock

24

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

1
Out of stock

25

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

1
Out of stock

26

SEAL, CLUTCH PUSH ROD | 6X34X1.0

09285-06011

1
Out of stock

27

SPRING, CLUTCH RELEASE

09443-09044

1
Out of stock

28

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock
