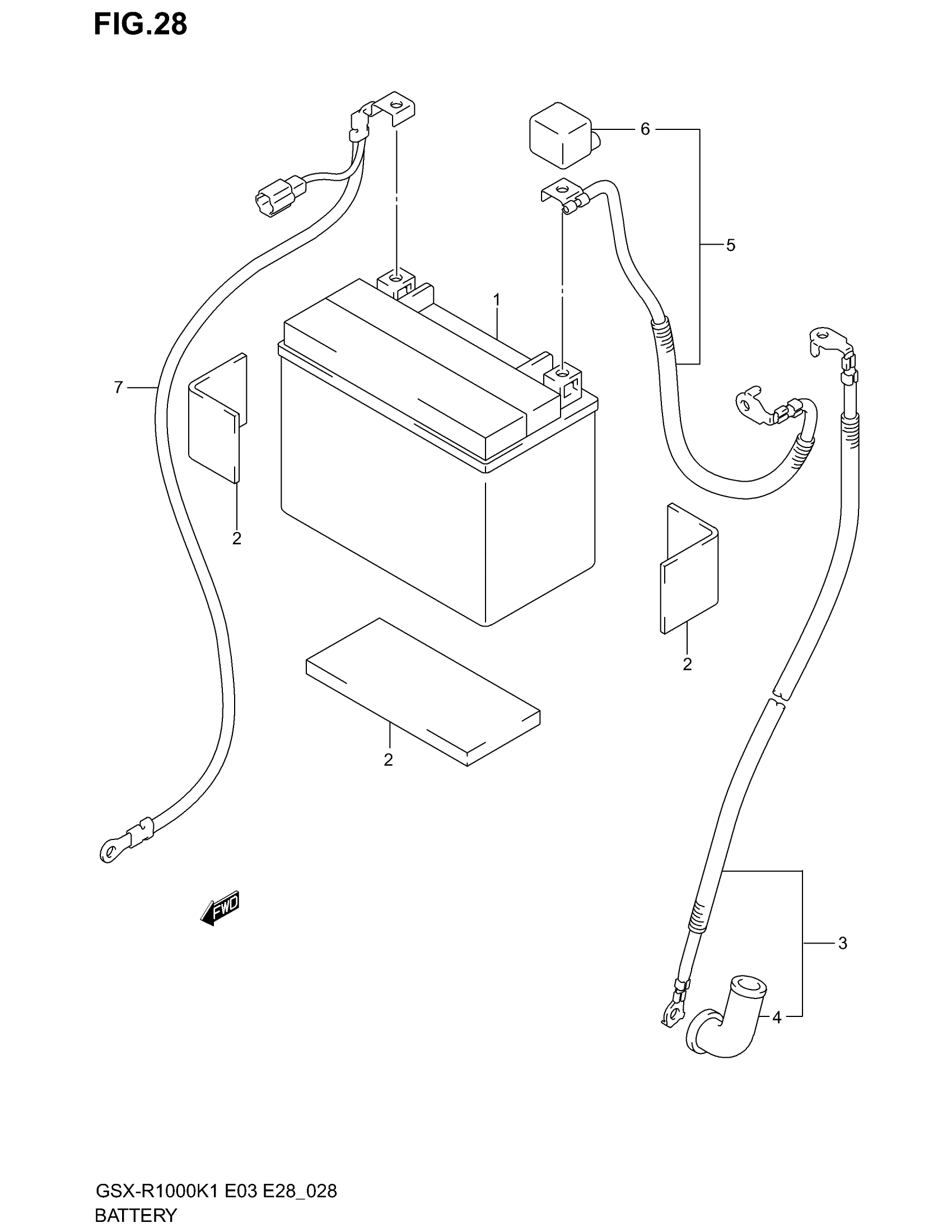

Suzuki GSX-R1000 (2002) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FTX12-BS,12V,10AH)

33610-48E20

$98.67

2

CUSHION (170X95X3.0) | CUT AS REQUIRED PROFILE (90X20)(50X115)

33651-37000

$4.48

3

WIRE, STARTER MOTOR | Includes Item(s) 4

33810-40F00

Unavailable

4

CAP, STARTER

31861-48B10

$6.55

5

WIRE, BATTERY PLUS LEAD | Includes Item(s) 6 This part replaces 33820-35F00.

33820-18G00

Unavailable

6

CAP, BATTERY PLUS

33624-35B00

$6.40

7

WIRE, BATTERY MINUS

33860-40F00

Unavailable
