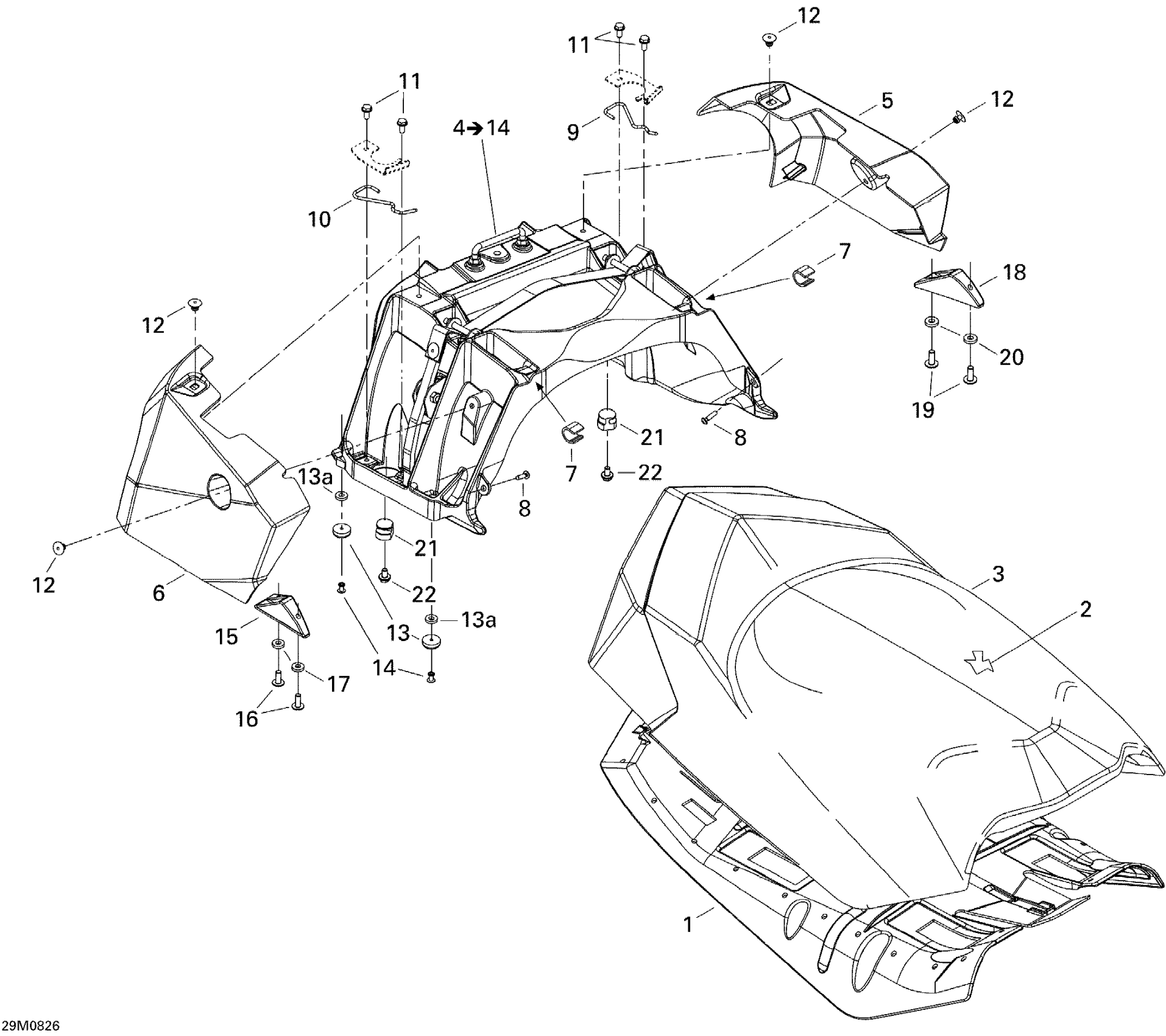

Ski-Doo GSX LTD TOURING 600 HO SDI, 2008 09- Seat Diagram

#

Description
Price

1

Seat Base

510005407

$67.99

2

SEAT FOAM - Call your local BRP dealership

510004696

Unavailable

3

SEAT COVER - Call your local BRP dealership | Red-Red Model

510004862

Unavailable

4

SEAT SUPPROT ASS'Y - Call your local BRP dealership | Includes 4 to 14

510004831

Unavailable

5

LH COVER - Call your local BRP dealership

510004832

Unavailable

6

RH COVER - Call your local BRP dealership

510004833

Unavailable

7

ANTIVIBRATION - Call your local BRP dealership

510004891

Unavailable

8

Flange Torx Screw K40 X 16

250000287

$2.11

9

Spring

510004835

Unavailable

10

SPRING - Call your local BRP dealership

510004892

Unavailable

11

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

12

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Rubber Stopper

415018100

$2.49

13a

Flat Washer

391303100

Unavailable

14

RIVET_POP 1/8 X ,438 - Call your local BRP dealership

293150001

Unavailable

15

RH Seat Anchor

518325710

$37.99

16

Torx Screw M6 X 16

250000223

$2.11

17

Flat Washer

250200096

$4.44

18

LH Seat Anchor

518325709

$37.99

19

Torx Screw M6 X 16

250000223

$2.11

20

Flat Washer

250200096

$4.44

21

SEAT STUD - Call your local BRP dealership

510004908

Unavailable

22

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19
