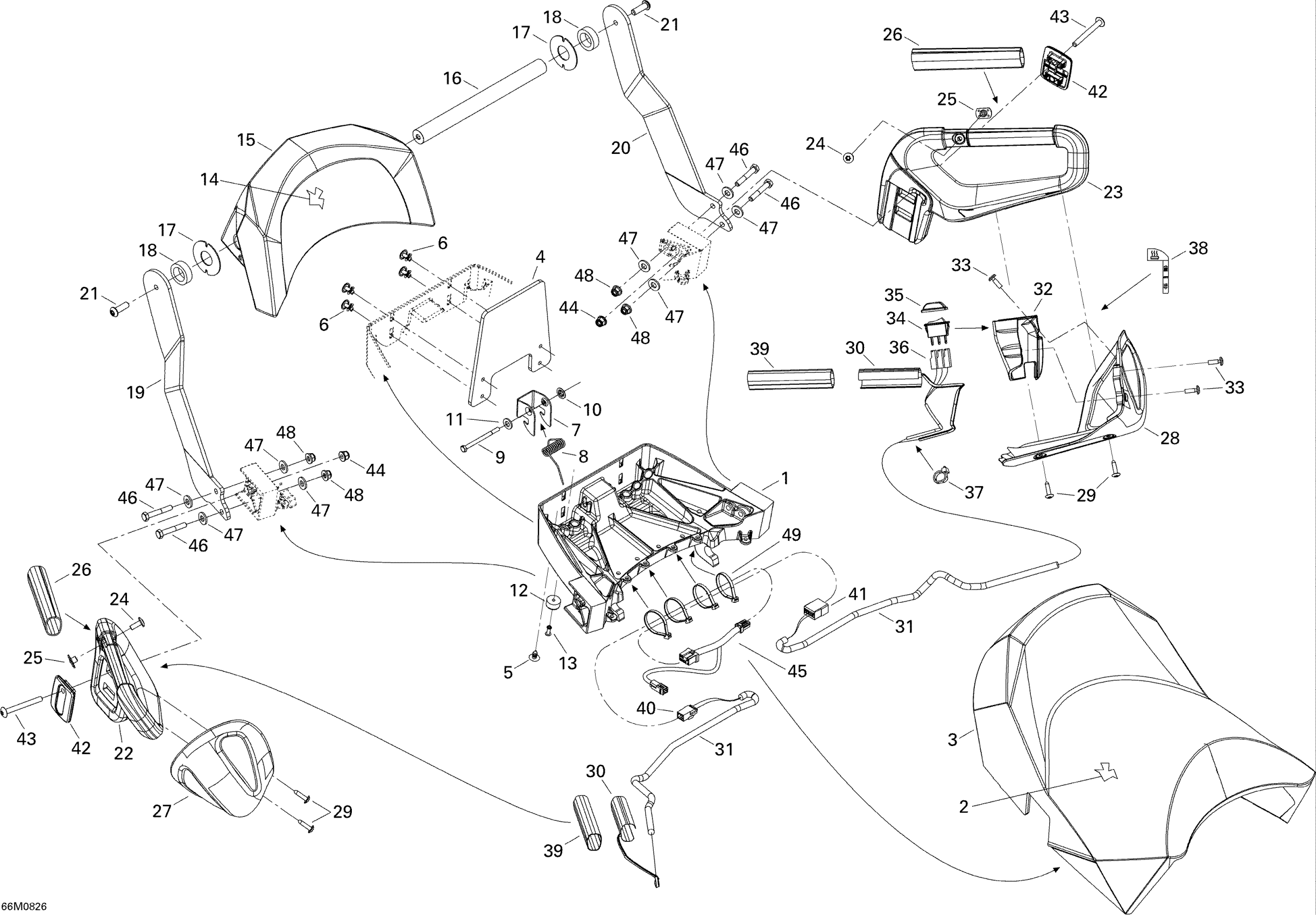

Ski-Doo GSX LTD TOURING 600 HO SDI, 2008 Backrest And Handles Diagram

#

Description
Price

1

Seat Base

510004816

$97.99

2

SEAT FOAM - Call your local BRP dealership

510004820

Unavailable

3

Seat Cover

510004910

Unavailable

4

Backrest Plate

510004817

Unavailable

5

Black, Dart

414644300

$0.90

6

Rivet | Model-T3

293150067

$2.63

7

Latch, Black

708000144

$10.76

8

Spring

708000369

$8.34

9

Hex. Screw M6 X 80

207068044

$3.90

10

Push Nut

732610072

$1.97

11

Flat Washer 6 mm

234061410

$1.19

12

RUBBER STOPPER - Call your local BRP dealership

510004903

Unavailable

13

Pop Rivet 1/8”

293150015

$0.33

14

Backrest Foam

510004841

Unavailable

15

BACKREST COVER - Call your local BRP dealership

510004913

Unavailable

16

BACKREST AXLE - Call your local BRP dealership

510004843

Unavailable

17

Washer

510004379

$8.69

18

Rubber Shim

510004378

$8.36

19

RH BACKREST ARM - Call your local BRP dealership

510004845

Unavailable

20

LH BACKREST ARM - Call your local BRP dealership

510004844

Unavailable

21

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

22

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

23

LH Handle

510005862

$117.13

24

Torx Truss Screw M6 X 16

250000721

$1.60

25

Nut Welded, M6

293100003

$7.25

26

Handle Grip

510004449

$10.33

27

RH Deflector

510004415

$25.34

28

LH Deflector

510004416

$25.34

29

Screw 25MM

250000961

$2.31

30

Heater

515176393

$57.43

31

Was 515175506 Tubing

219704426

$132.06

32

Switch Housing

510004566

$11.58

33

Torx Screw K50 X 16

250000720

$1.60

34

Rocker Switch

510004413

$8.31

35

Switch Protector

510004414

$7.15

36

LH Handle Harness

515176241

Unavailable

37

Tie-Rap 180 mm

414115200

$0.10

38

Handle Heater Decal

516002835

$10.04

39

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

40

Male Housing, 3 Circuits

515175494

$14.90

41

Male Terminal Housing, 8 Circuits

515175817

$8.31

42

Passenger Handle Trim

510006602

$11.36

43

TORX TRUSS SCREW M8 X 75 - Call your local BRP dealership

250000327

Unavailable

44

Hex. Flange Elastic Nut M8

233281414

$1.31

45

SEAT HARNESS - Call your local BRP dealership

515176170

Unavailable

46

Hex. Screw M8 X 50

207085044

$1.43

47

Washer

503189157

$3.10

48

Hex. Elastic Stop Nut M8

232581414

$0.54

49

Tie-Rap 180 mm

414115200

$0.10
