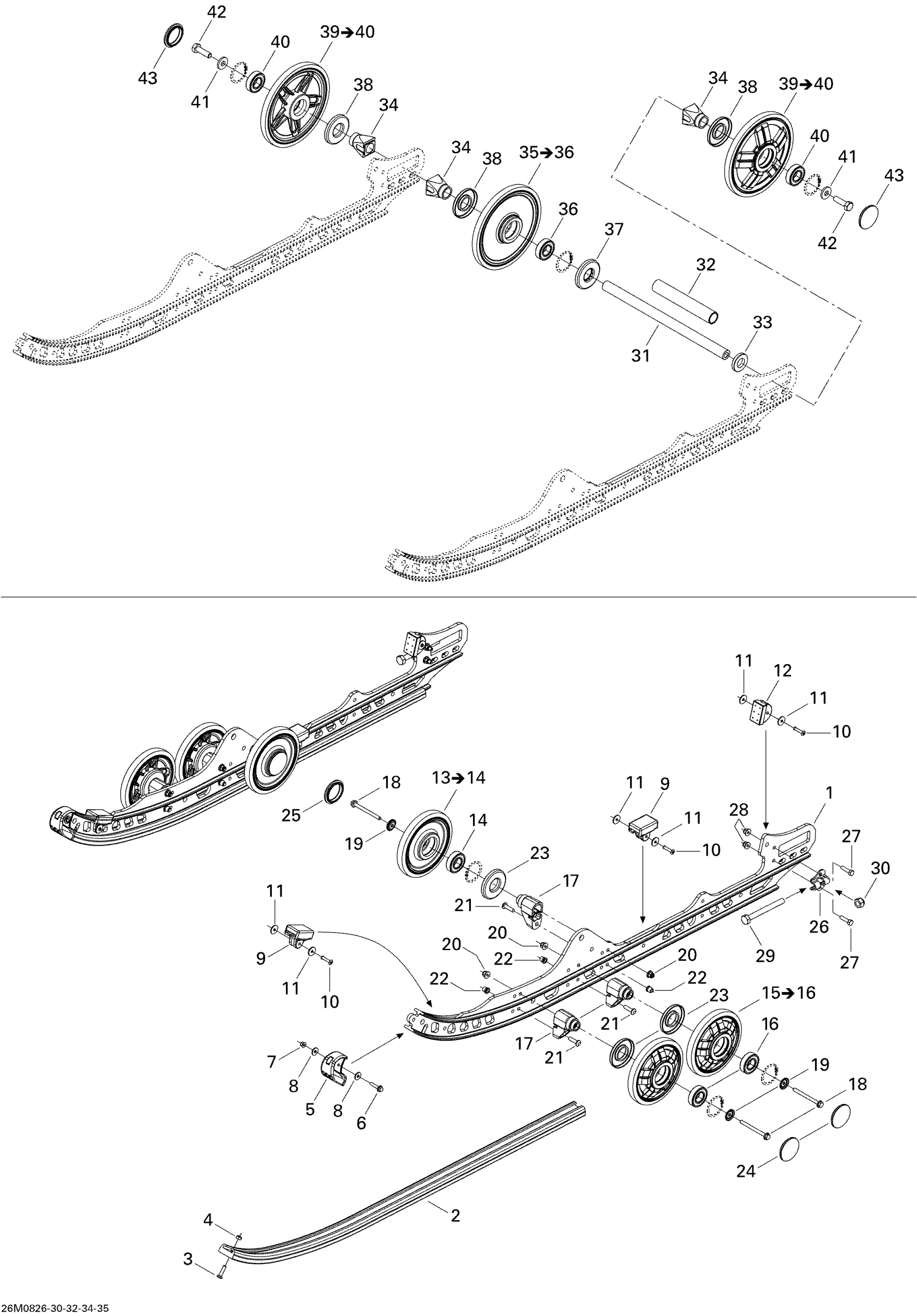

Ski-Doo GSX LTD TOURING 600 HO SDI, 2008 08- Rear Suspension Diagram

#

Description
Price

1

Suspension Rail 120

503196633

$244.99

2

Black Slider Shoe 120"

503191301

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503191291

$19.99

13

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

14

Ball Bearing | Package-STD

503190396

$14.30

15

Wheel 141 With Pattern Ass'y, Full Moon

503191313

$37.99

16

Ball Bearing | Package-STD

503190396

$14.30

17

Casted Support

503193894

$16.49

18

Hex. Flange Screw M6 X 70

207667044

$0.85

19

Wheel Cup M6

503191820

$4.99

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Flange Screw M6 X 25

207662544

$0.64

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Labyrinth Seal

503190434

$6.09

24

Wheel Cap

570063600

$3.49

25

Wheel Cap

570063600

$3.49

26

Tensioner

503192583

$8.29

27

Hex. Screw M6 X 25

207162544

$1.15

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Rear Axle

503190429

$59.99

32

Spacer

503196317

$18.49

33

Washer

503190432

$14.22

34

Rear Wheel Spacer

503190428

$8.14

35

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

35a

Retaining Ring

415129371

$12.01

36

Ball Bearing | Package-STD

503190396

$14.30

37

Labyrinth Seal

503190682

$6.19

38

Labyrinth Seal

503190434

$6.09

39

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

40

Ball Bearing | Package-STD

503190396

$14.30

41

Washer

503190439

$5.93

42

Hex. Screw With Nylon

250000019

$1.69

43

Wheel Cap

570063600

$3.49
