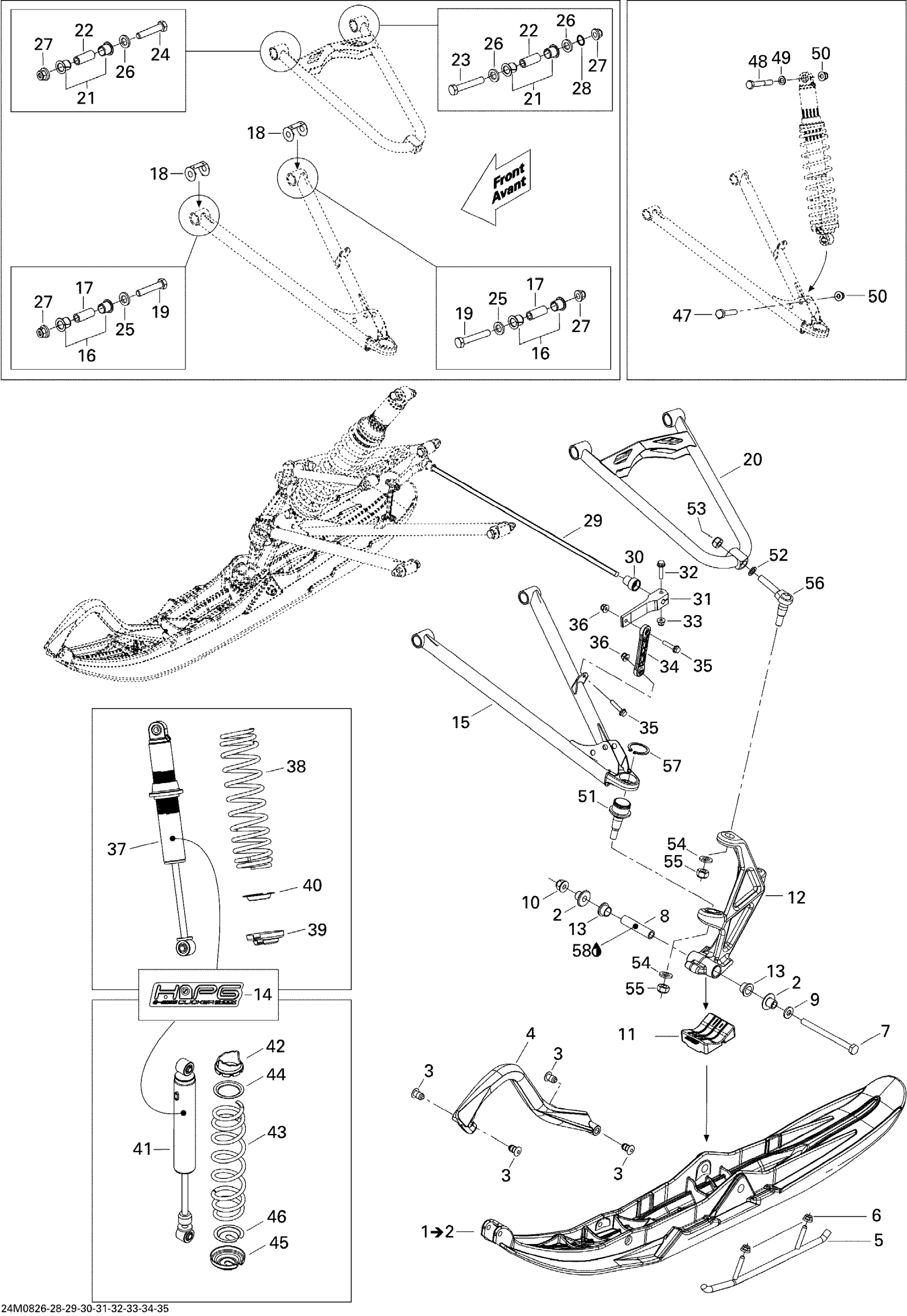

Ski-Doo GSX LTD TOURING 600 HO SDI, 2008 07- Front Suspension And Ski Diagram

#

Description
Price

1

RH Pilot Ski 5.7, Black

505072478

Unavailable

1

LH Pilot Ski 5.7, Black

505072479

Unavailable

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Full Moon Handle

505071556

$35.99

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

8

Spacer

506133300

$23.99

9

Washer

732900049

$0.58

10

Flange Nut M10

732610084

$6.79

11

Ski Stopper

505071779

$18.78

12

Clear, LH Ski Leg

505073007

$249.99

12

Clear, RH Ski Leg

505073008

$239.99

13

Leg Bushing

505072690

$12.49

14

Not Available As Spare Parts

XXX

Unavailable

15

FULL MOON RH LOWER ARM - Call your local BRP dealership

505072346

Unavailable

15

FULL MOON LH LOWER ARM - Call your local BRP dealership This part replaces 505072386.

505072347

Unavailable

16

Bushing

505072208

$3.28

17

Sleeve

505072209

$17.84

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

20

UPPER ARM - Call your local BRP dealership | LE

505072389

Unavailable

21

Bushing

505072250

$3.28

22

Sleeve

505072143

$9.00

23

Screw Hex. M10 X 60

250001023

$2.11

24

Screw Hex. M10 X 50

250001022

$1.69

25

Washer

503189564

$0.74

26

Washer

505072392

$4.76

27

Hex. Flange Elastic Nut M10

250100165

$0.85

28

O-Ring

505072448

$2.32

29

Stabilisator

505072602

$68.99

30

Bushing

505072064

$2.32

31

Stabilisator Lever

505072394

$18.73

32

Hex. Flange Screw M6 X 30

207663046

$1.69

33

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34

Sway Bar Double Joint Link

505072204

$21.99

35

Hex. Flange Screw M6 X 30

207663046

$1.69

36

Elastic Flange Nut M6 X 1.0

233261416

$2.11

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Front Shock

505073235

$248.99

42

Adjustment Cam

505073625

$12.99

43

FULL MOON SPRING - Call your local BRP dealership

505072414

Unavailable

44

Spring Guide

503191872

$2.29

45

Spring Stopper

706200881

$12.99

46

Cap

706200785

$4.69

47

Hex. Screw M10 X 55

207005544

$2.22

48

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

49

Washer

503189564

$0.74

50

Hex. Flange Elastic Nut M10

233201414

$1.58

51

Ball Joint

505073636

$51.99

52

Washer

503189276

$3.28

53

Hex. Elastic Hex. Nut M12

250100089

$0.46

54

Flat Washer 12 mm

234021410

$0.72

55

Hex. Elastic Hex. Nut M12

250100089

$0.46

56

Upper Ball Joint

505072257

$17.58

57

Circlip

293370035

$2.64

58

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
