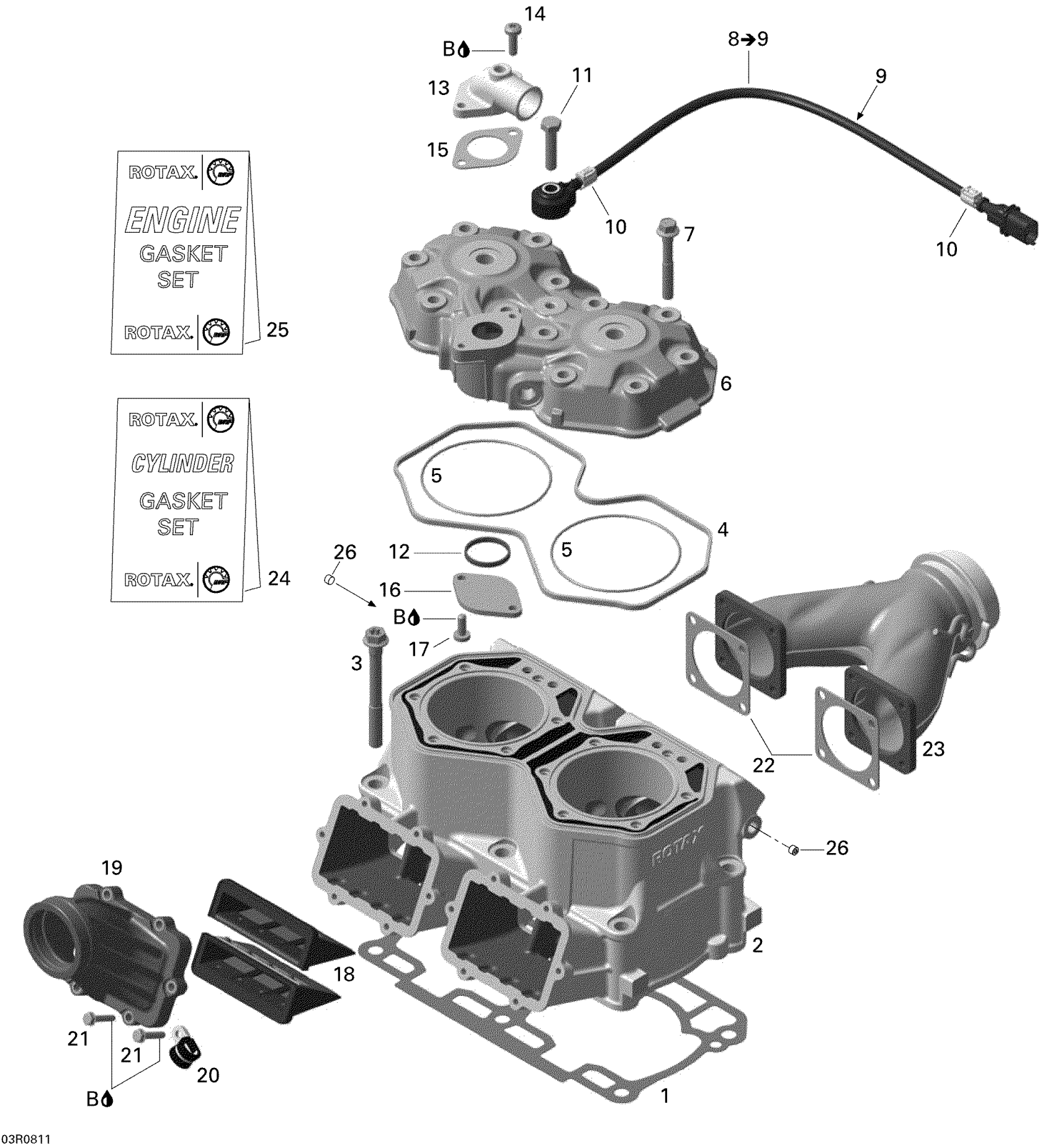

Ski-Doo GSX LTD 800R, 2008 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

Double Gasket 0.5 mm

420430080

$25.99

1

Double Gasket 0.6 mm

420430081

$28.49

1

Double Gasket 0.7 mm

420430082

$35.99

1

Double Gasket 0.8 mm

420430083

$35.99

2

REBUILD-CYLINDER NICAS 797 07-09 - Call your local BRP dealership This part replaces 420623240.

421000666

Unavailable

2

REBUILD-CYLINDER NICAS 797 07-09 - Call your local BRP dealership This part replaces 420623240.

421000666

Unavailable

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

4

O-Ring

420430040

$6.19

5

O-Ring | Included in gasket kit

420931410

$3.39

6

Cylinder Head Cover

420613925

$265.99

7

Hex. Screw M8 X 56.5

420941627

$8.57

8

Knock Sensor Ass'y

420664035

Unavailable

9

TUBE - Call your local BRP dealership

420460010

Unavailable

10

CLIP - Call your local BRP dealership

420960890

Unavailable

11

Hex. Screw M8 X 35

207083544

$1.15

12

Gasket

420630780

$4.12

13

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

14

Torx Flange Screw M6 X 20

420441386

$2.11

15

Gasket

420850338

$11.60

16

COVER - Call your local BRP dealership

420926260

$26.99

17

Torx Screw M6 X 16

420640324

$2.11

18

Reed Valve Ass'y

420924798

$42.99

19

Intake Socket

420667472

$89.99

20

Open Clamp

414176000

$1.99

21

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

22

Gasket

420430480

$13.75

23

Exhaust Manifold

420673370

Unavailable

24

Gasket Set, Cylinder

420892477

$163.99

25

Gasket Set, Engine

420892472

$349.99

26

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.11

B

Loctite 243, 10 ml

293800060

$21.49
