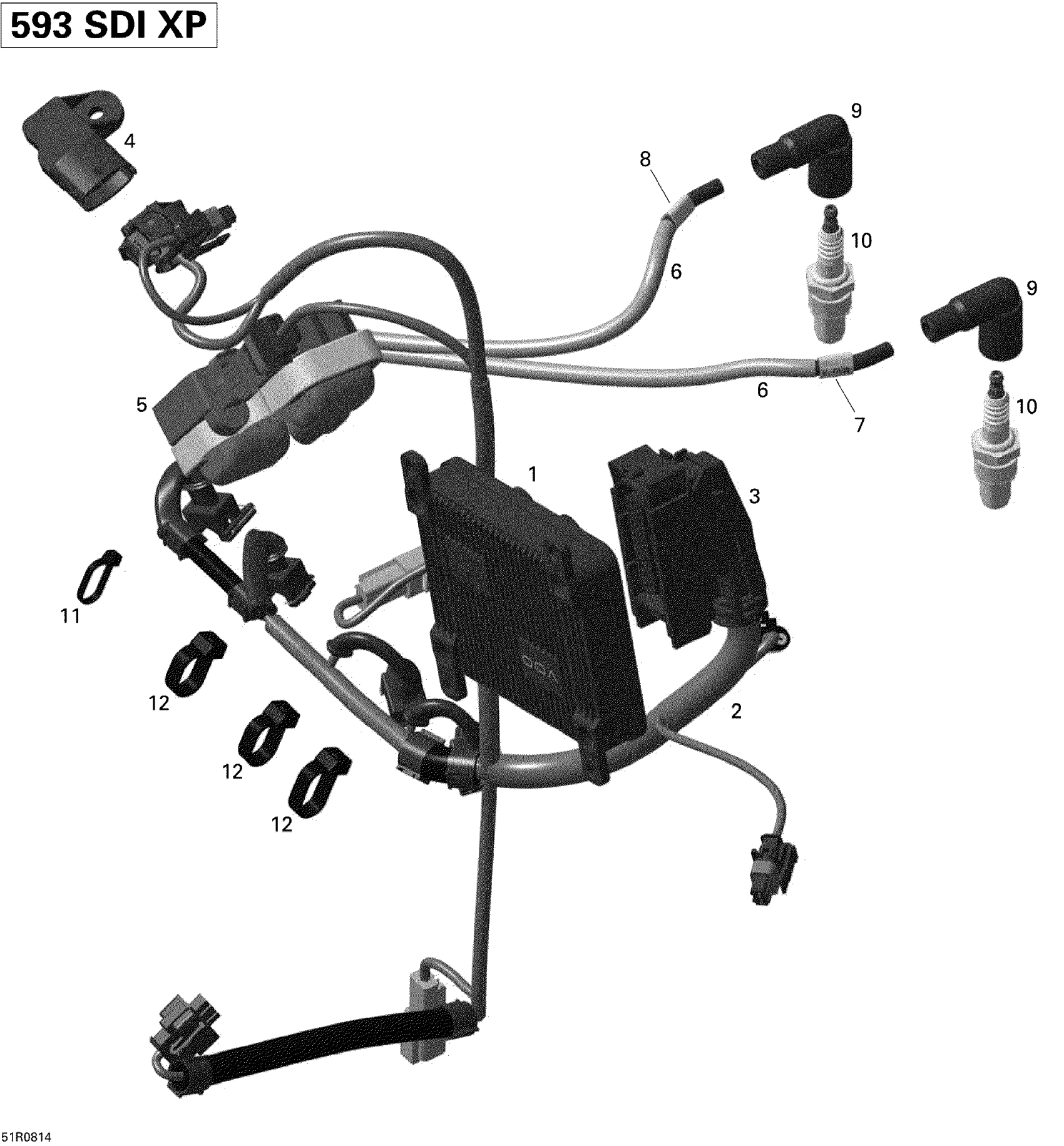

Ski-Doo GSX LTD 600 HO SDI, 2008 Engine Harness And Electronic Module Diagram

#

Description

Price

1

ELECTRONIC BOX - Call your local BRP dealership

420665872

Unavailable

2

ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership

420665450

Unavailable

3

ECM Connector

420664450

$26.09

4

Pressure And Temperature Sensor

707000995

$70.82

5

Ignition Coil

278001546

$129.32

6

SPARK PLUG CABLE, 190 MM - Call your local BRP dealership

420664302

Unavailable

7

SLEEVE, MAG SIDE - Call your local BRP dealership

420660632

Unavailable

8

SLEEVE, PTO SIDE - Call your local BRP dealership

420660630

Unavailable

9

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

10

Spark Plug NGK BR8ECS

512060029

$9.70

11

Tie Rap

420866714

$1.56

12

Tie-Rap

420866716

$1.56
