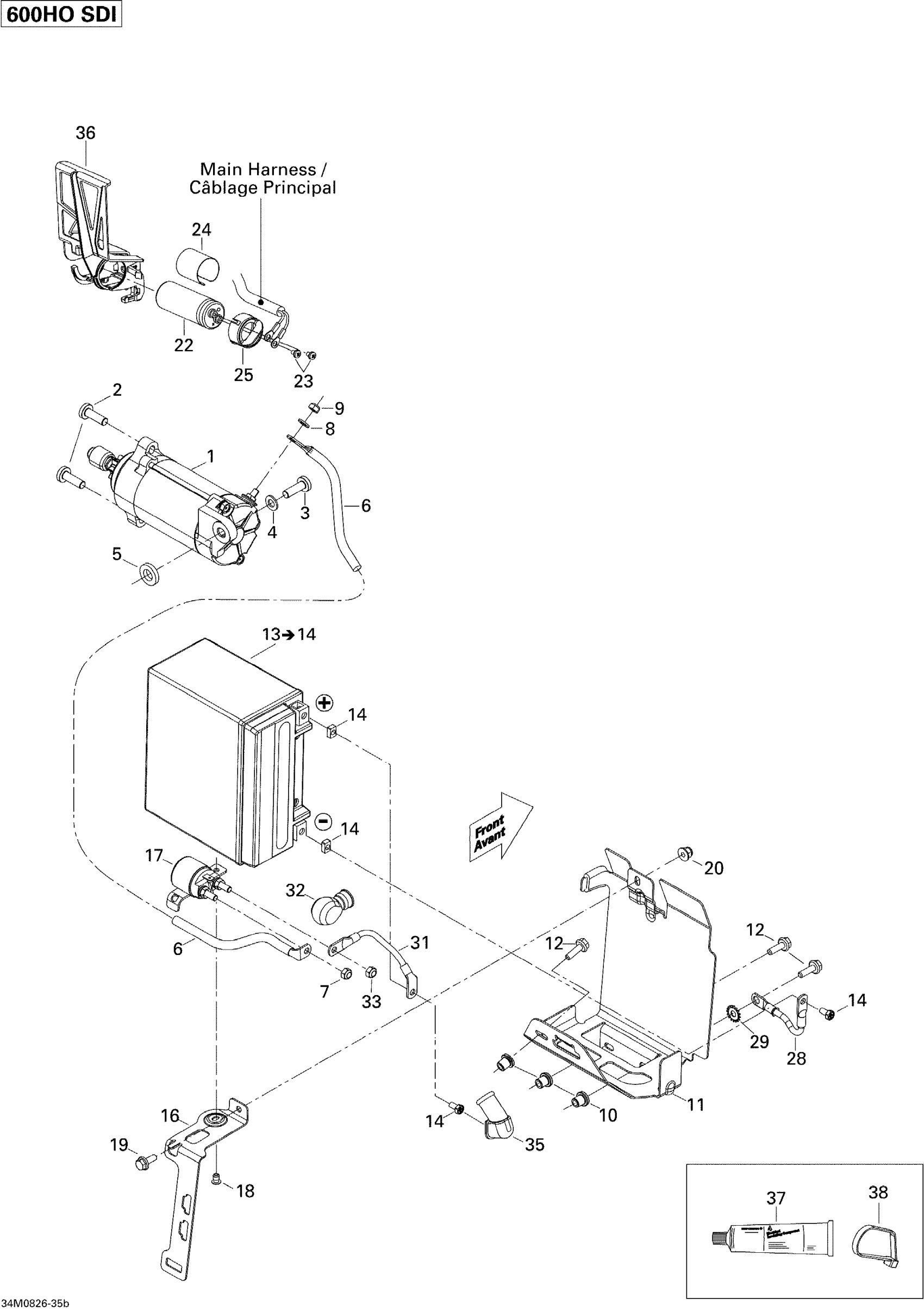

Ski-Doo GSX LTD 600 HO SDI, 2008 Battery And Starter 600HO SDI Diagram

#

Description
Price

1

STARTER - Call your local BRP dealership

515176399

Unavailable

2

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

4

Flat Washer With Teflon 8 mm

250200008

$3.58

5

Washer

515176500

$10.51

6

BATTERY WIRE - Call your local BRP dealership

515176534

Unavailable

7

Elastic Stop Nut M6

232561414

$1.78

8

Flat Washer 6 mm

234061410

$1.19

9

Elastic Stop Nut M6

232561414

$1.78

10

Insert

293450275

$11.36

11

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

12

Hex. Flange Screw M6 X 20

207662044

$1.91

13

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

14

Battery Bolt Kit

250000282

$3.39

16

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

17

Starter Relay

515176501

$91.01

18

Pop Rivet 3/16"

390402200

$0.30

19

Hex. Flange Screw M6 X 16

207661644

$0.70

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

22

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

23

SCREW 10-32 X 5/16 - Call your local BRP dealership

515176542

Unavailable

24

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

25

CAP - Call your local BRP dealership

515176211

Unavailable

28

Ground Wire

515176358

$25.34

29

Lock Washer Serrated M6

250200041

$1.06

31

BATTERY WIRE - Call your local BRP dealership

515176535

Unavailable

32

Protection Cap

570151000

$17.88

33

Elastic Stop Nut M6

232561414

$1.78

35

Protector Cap

710000495

$9.84

36

BRACKET - Call your local BRP dealership

515176513

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

38

Tie Wrap 94 mm | 4X4

293750001

$0.96

38

Tie Wrap 142 mm

293750002

$1.01

38

Tie-Rap 180 mm

414115200

$0.10

38

Tie Wrap 368 mm

293750008

$0.97
