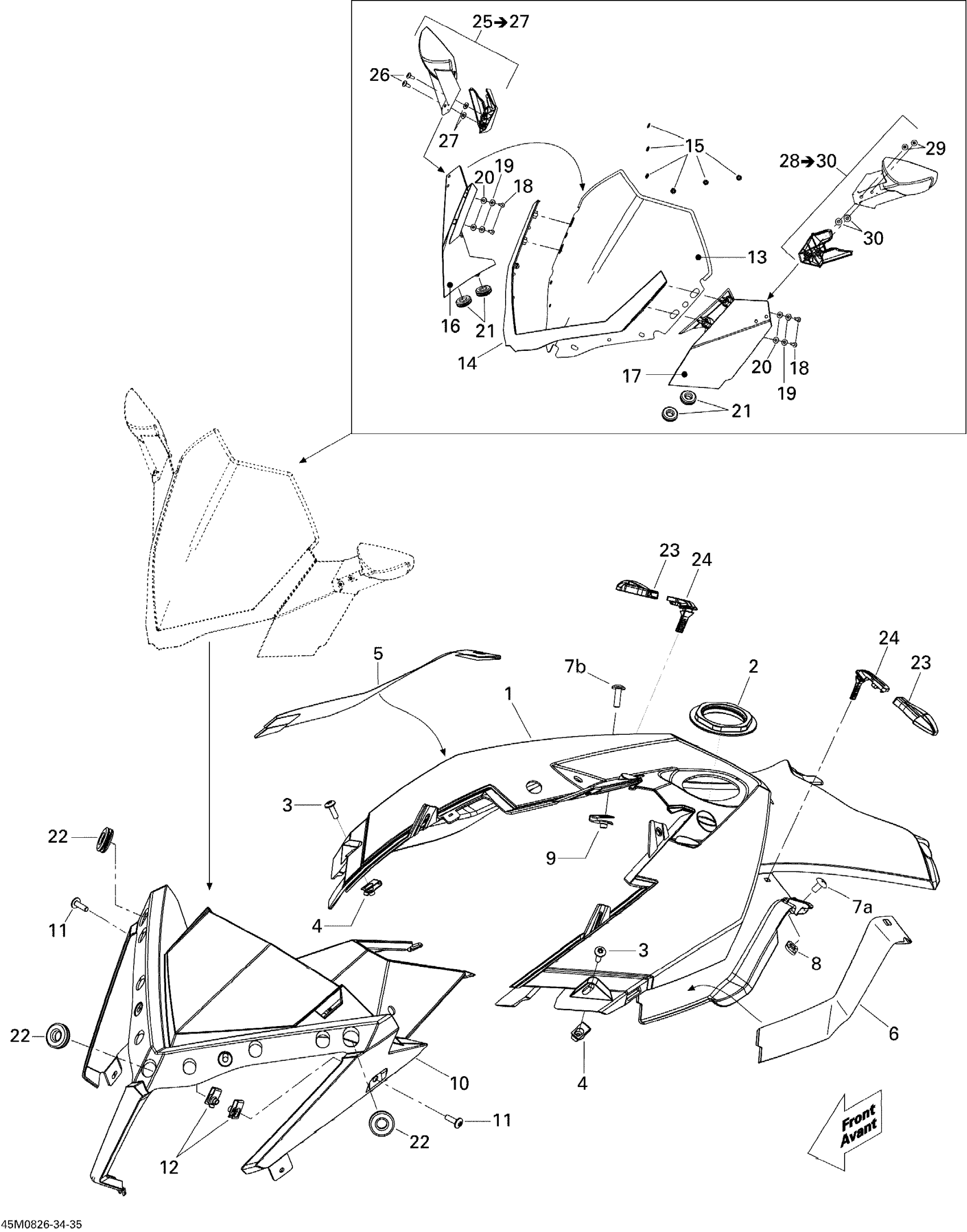

Ski-Doo GSX LTD 600 HO SDI, 2008 09- Windshield And Console Diagram

#

Description
Price

1

CONSOLE - Call your local BRP dealership This part replaces 517303927.

517304033

Unavailable

2

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

3

Torx Screw M6 X 20

250000722

$1.68

4

Panel Nut M6 X 1.0

250100198

$2.11

5

RH Decal

517304103

$19.99

6

LH Decal

517304104

$19.99

7a

PHILLIPS SCREW M8 X 12 - Call your local BRP dealership

250000353

Unavailable

7b

Torx Screw M6 X 20

250000722

$1.68

8

NUT-WELD THIN M6 - Call your local BRP dealership

250100106

Unavailable

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Gauge Support

517304575

$70.99

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

HIGH WINDSHIELD - Call your local BRP dealership

517303758

Unavailable

14

Windshield Support

517303607

$34.99

15

Push Nut

732610072

$2.19

16

RH Air Deflector

517303791

$43.99

17

LH Air Deflector

517303792

$43.99

18

Torx Screw K50 X 16

250000720

$1.69

19

Washer M5

250200025

$0.74

20

Rubber Washer 5 mm

250200024

$2.19

21

Grommet

517303756

$4.09

22

Grommet

517303756

$4.09

23

Embout Loquet *Latch This part replaces 517303980.

860200238

$19.49

24

Panel Latch

517303981

$12.99

25

RH Mirror Ass'y

517305100

$52.99

26

Torx Truss Screw M6 X 16

250000721

$1.69

27

Rubber Washer 5 mm

250200024

$2.19

28

LH Mirror Ass'y

517305101

$52.99

29

Torx Truss Screw M6 X 16

250000721

$1.69

30

Rubber Washer 5 mm

250200024

$2.19
