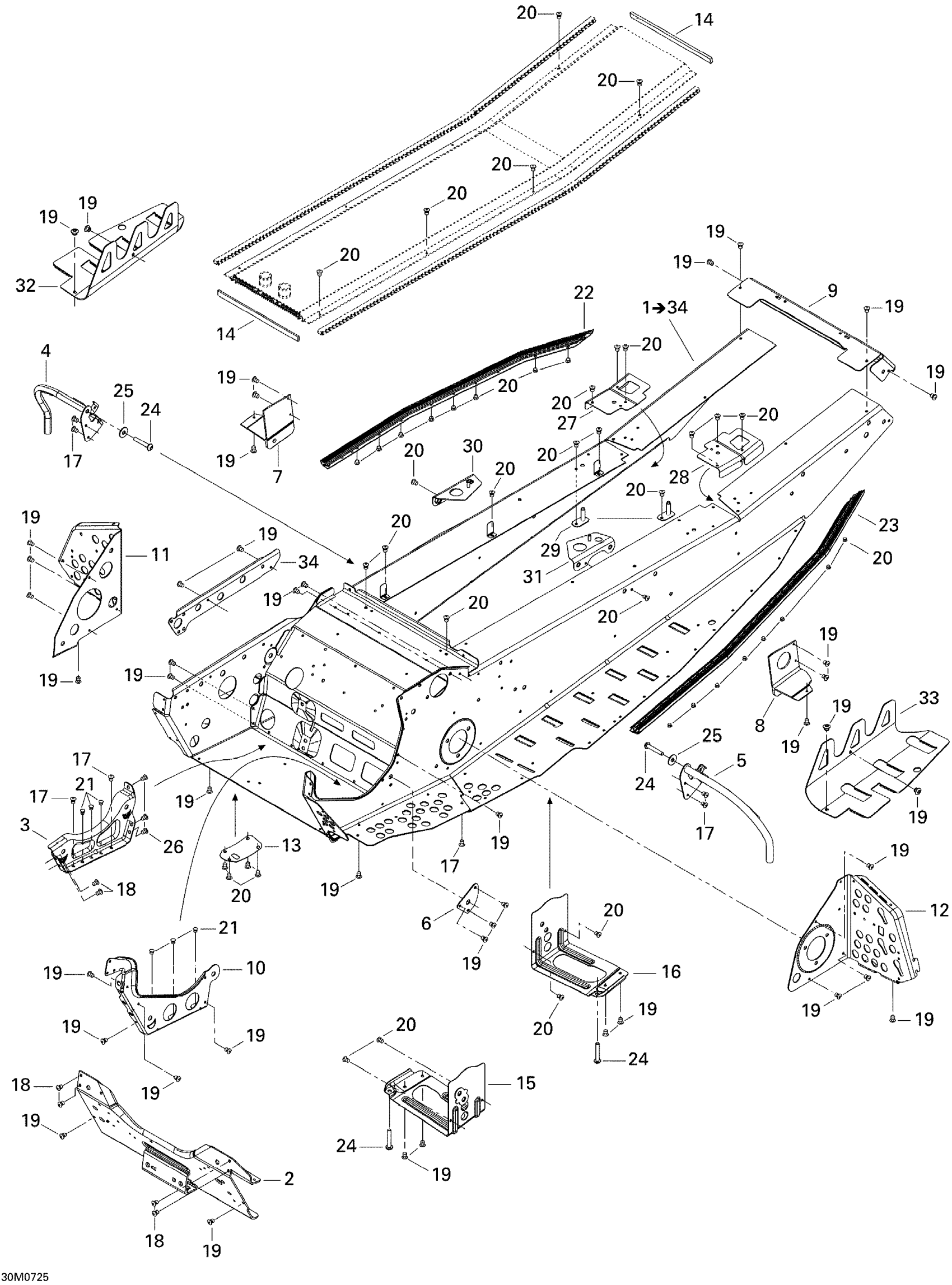

Ski-Doo GSX LTD 600 HO SDI, 2007 09- Frame Diagram
#
Description
Price
1
FRAME - Call your local BRP dealership | Includes 1 to 34
415129233
Unavailable
2
FRONT PAN - Call your local BRP dealership
518323239
Unavailable
3
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
4
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
5
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
6
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
7
RH SLIDE BRACKET - Call your local BRP dealership
518324488
Unavailable
8
LH SLIDE BRACKET - Call your local BRP dealership
518324489
Unavailable
9
REAR CAP - Call your local BRP dealership
518325180
Unavailable
10
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
11
RH Footrest Reinforcement
518323805
Unavailable
12
LH FOOTREST REINFORCEMENT - Call your local BRP dealership
518324527
Unavailable
13
PLATE - Call your local BRP dealership
518324169
Unavailable
14
GASKET - Call your local BRP dealership
293200104
Unavailable
15
RH Reinforcement, Black
518324634
Unavailable
16
LH REINFORCEMENT, BLACK - Call your local BRP dealership
518324635
Unavailable
21
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
22
RH Roller
518324953
Unavailable
23
LH ROLLER - Call your local BRP dealership
518324954
Unavailable
24
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter
205982086
Unavailable
27
RH FRAME REINFORCEMENT - Call your local BRP dealership
518324431
Unavailable
28
LH FRAME REINFORCEMENT - Call your local BRP dealership
518324432
Unavailable
29
Tank Bracket
518322791
Unavailable
30
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324385
Unavailable
31
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324386
Unavailable
32
RH TUNNEL LINER - Call your local BRP dealership
518325268
Unavailable
34
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
