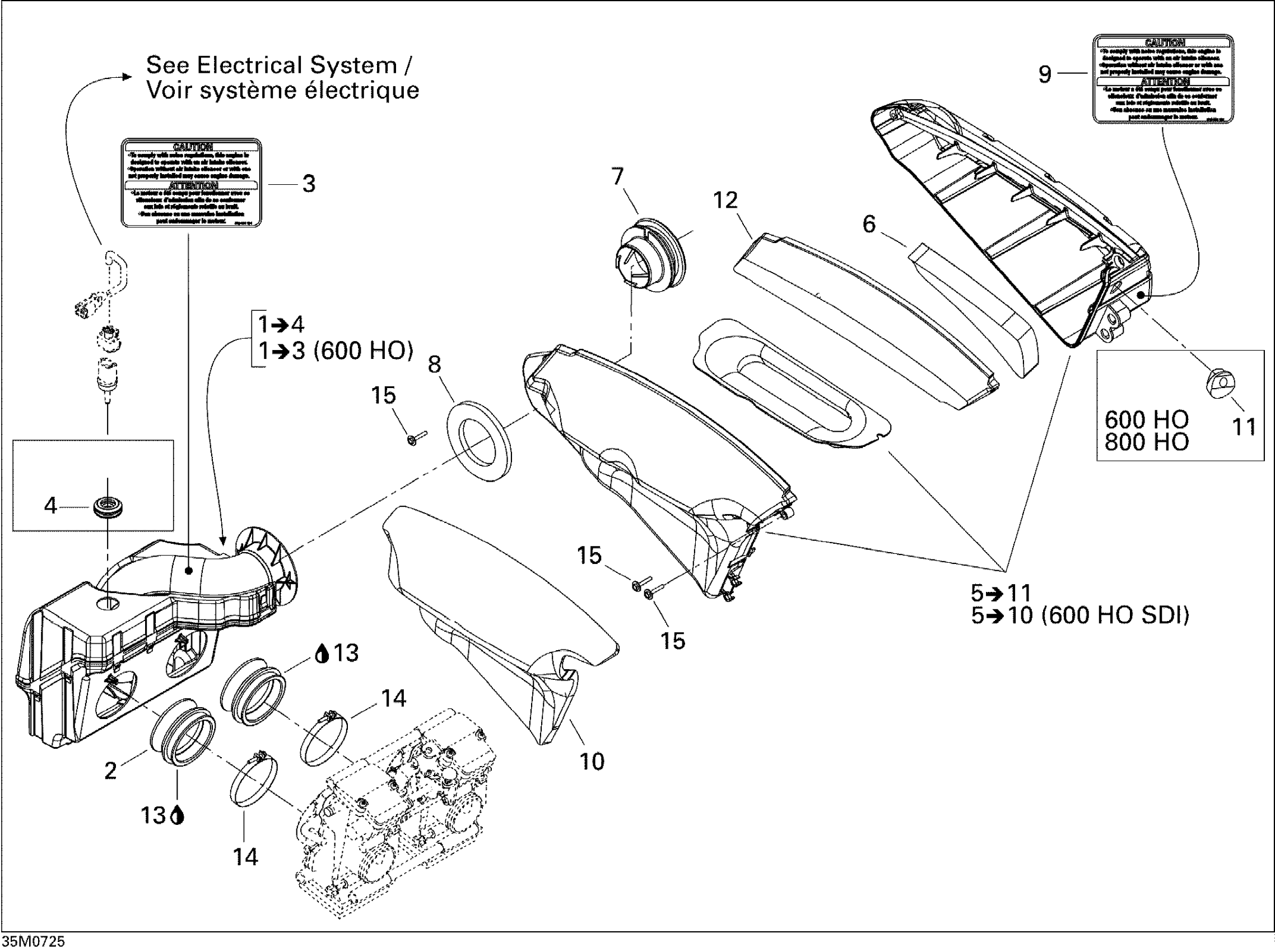

Ski-Doo GSX LTD 600 HO SDI, 2007 Air Intake System 600 HO SDI Diagram

#

Description

Price

1

Primary Chamber Ass'y | Includes 1 to 4

508000459

Unavailable

2

Air Intake Adaptor

508000374

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

GROMMET - Call your local BRP dealership

570065500

Unavailable

5

Secondary Chamber Assy | Includes 5 to 10

508000392

Unavailable

6

Inner Foam

508000145

Unavailable

7

GUIDE - Call your local BRP dealership

508000240

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

9

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

10

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Air Filter

508000394

$51.99

14

Gemi Clamp

508000346

$10.33

15

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
