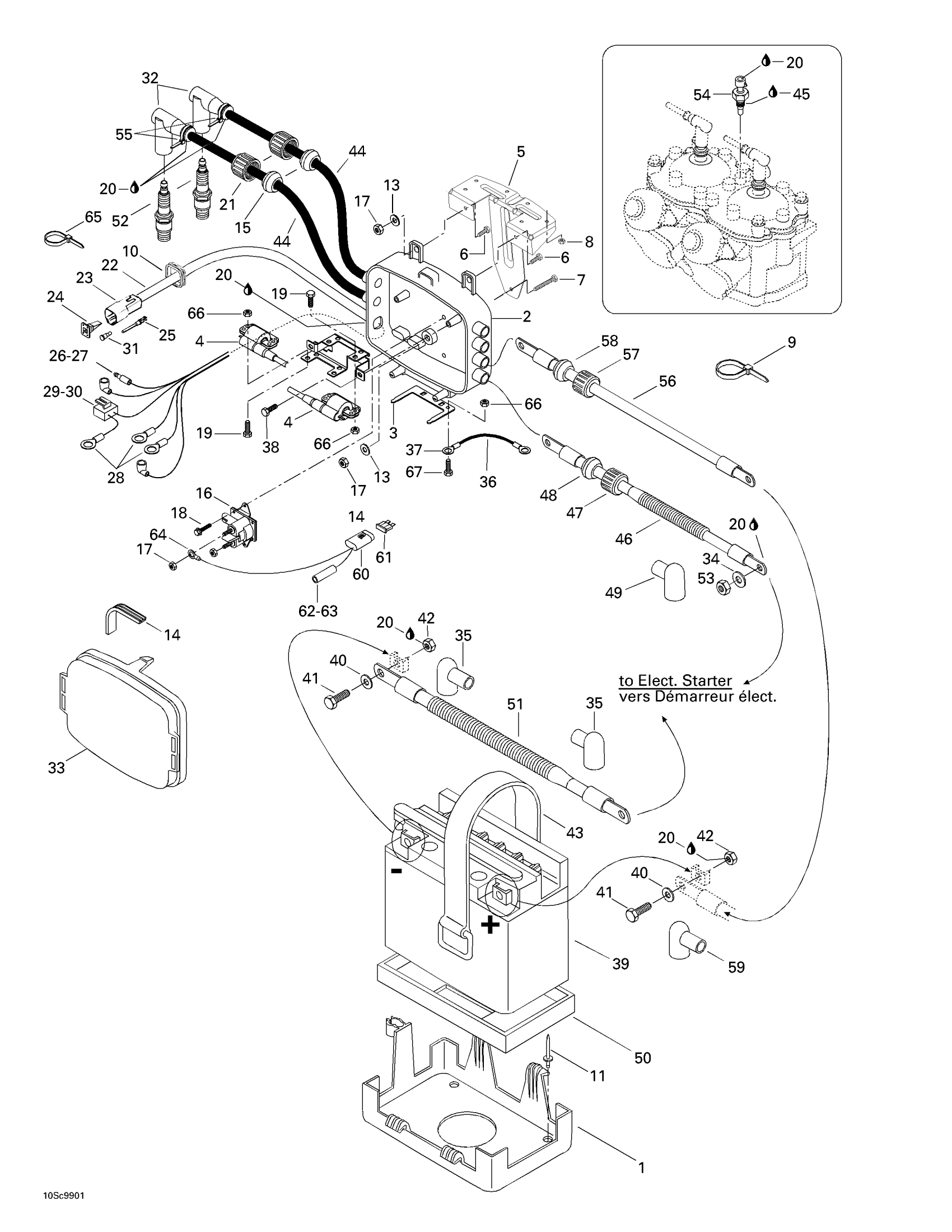

Sea-doo GSX Limited, 5848/5849, 1999 Electrical Box Diagram

#

Description
Price

1

Battery Support

278001233

Unavailable

2

ELECTRIC BOX BASE - Call your local BRP dealership

278001425

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil (MAG)

278001415

Unavailable

5

Box Support

278001418

Unavailable

6

Hex. Screw M6 X 16

207161660

$1.59

7

Hex. Screw M6 X 45

207164560

$1.89

8

Hex. Nut M6

232061600

$1.15

9

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

10

Gasket

293200030

Unavailable

11

Avdel Rivet 3/16"

293150037

$0.56

13

Flat Washer M6, Stainless

234062600

$0.77

14

GASKET - Call your local BRP dealership

278001173

Unavailable

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Hex. Forming Screw M6 X 20

207162060

$1.29

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 24 - 31.

278001422

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001007

$3.58

28

Ring Terminal

278000300

Unavailable

29

Male Connector, 2 Circuits

278001113

$16.86

30

Female Terminal

278001114

$3.19

31

Sealing Cap

293000052

$3.19

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

34

Stainless Flat Washer M6

234061600

$0.33

35

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

36

Ground Wire

278001501

Unavailable

37

Ring Terminal

278000300

Unavailable

38

Hex. Screw M6 X 16

209561640

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$153.36

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

Retainer Strap

293850097

$11.64

44

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

46

Starter Cable (Red) | Includes 46 - 49.

278001183

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Ground Cable, Black | Includes 18,19,41

278001489

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

53

Hex. Elastic Stop Nut M6

232561600

$1.15

54

Temperature Sensor

278002895

$39.99

55

Tie Wrap 142 mm

293750002

$1.25

56

Battery Cable (Red) | Includes 56 - 59.

278001185

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

60

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

61

Fuse, 15 Amperes

278000343

$3.28

62

Female Terminal | DS 650 X

278001009

$3.19

63

Insulated Sheath

278001007

$3.58

64

Ring Terminal

278000300

Unavailable

65

Tie Wrap 94 mm | 4X4

293750001

$1.03

66

Hex. Elastic Stop Nut M6

232561600

$1.15

67

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11
