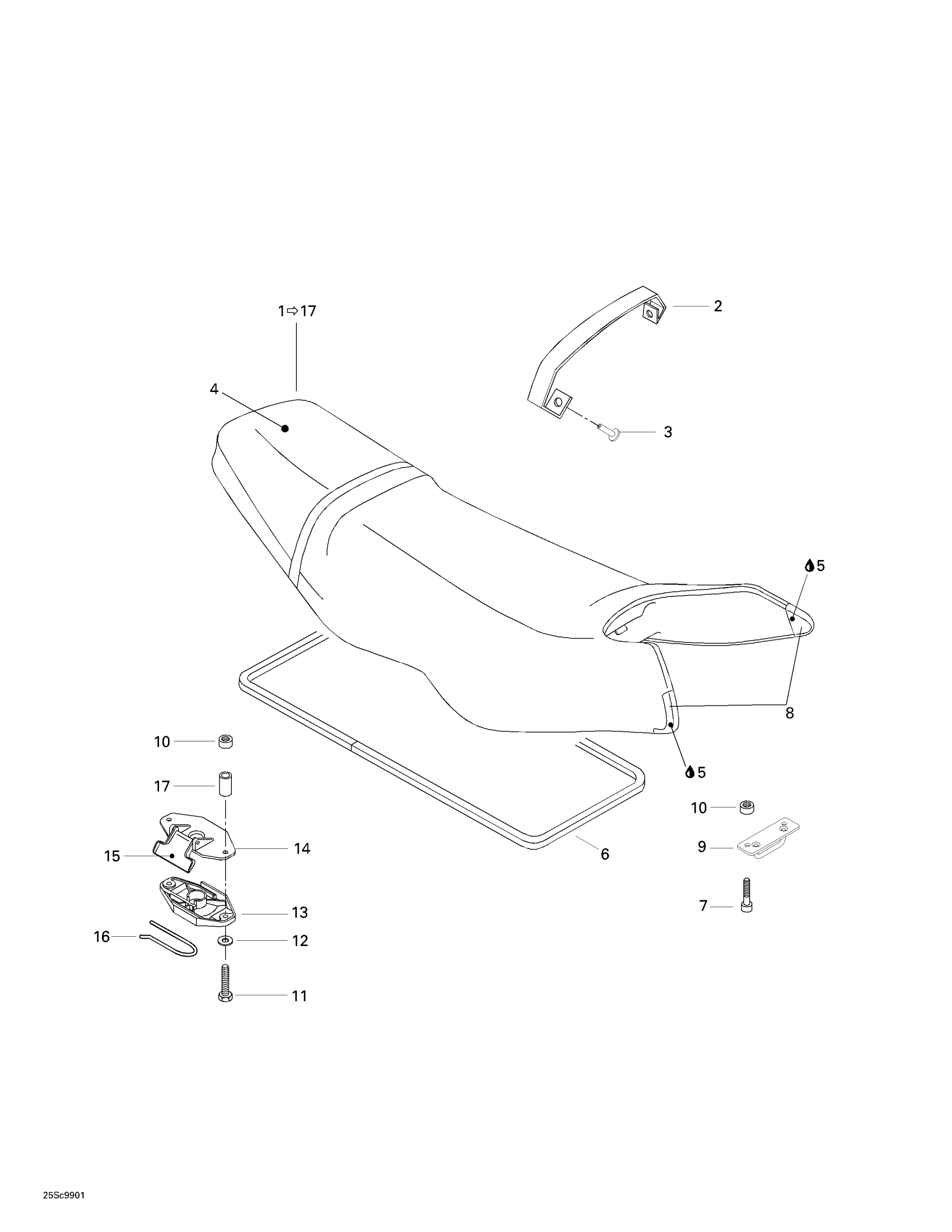

Sea-doo GSX Limited, 5848/5849, 1999 Seat And Engine Cover Diagram

Seat Ass'y | Includes 1 - 21.

269000528

Unavailable

Seat Strap

269000414

Unavailable

Rivet | Model-T3

293150067

$2.89

Seat Cover with Foam

269000493

Unavailable

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

Was 293200017 Neoprene Seal

219704365

$149.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

RH Corner Seat

269000411

Unavailable

LH Corner Seat

269000412

Unavailable

Hook (Seat Base)

291001357

Unavailable

Nut Welded, M6

293100003

$9.12

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

Stainless Flat Washer M6

234061600

$0.33

Latch Ass'y

269700109

$24.99

Latch Ass'y

269700109

$24.99

Latch Ass'y

269700109

$24.99

Latch Spring

269700017

$9.19

SPACER - Call your local BRP dealership

291000532

Unavailable
