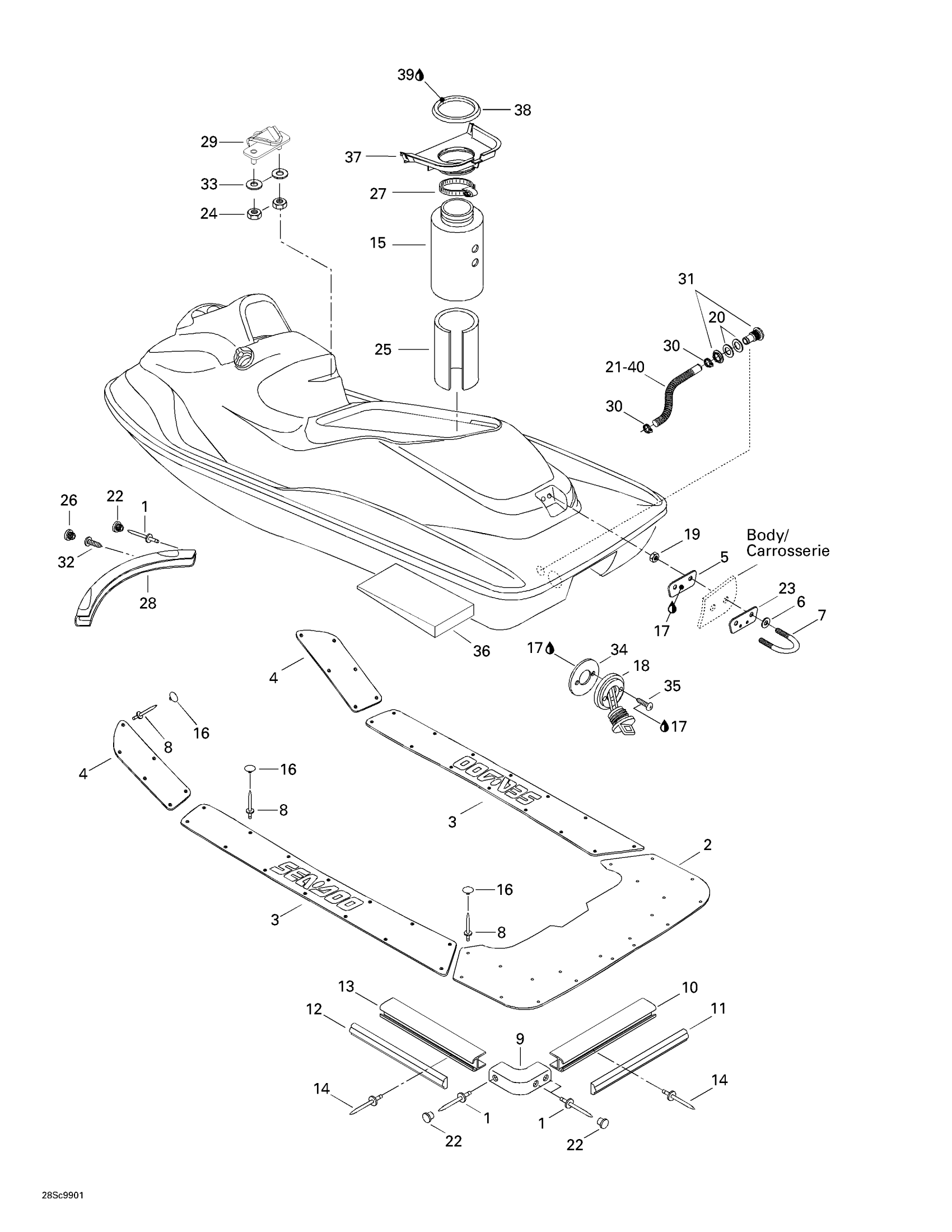

Sea-doo GSX Limited, 5848/5849, 1999 Body Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.11

2

Rear Carpet (Black)

291001185

Unavailable

3

RH Lateral Carpet (Black)

291001183

Unavailable

LH Lateral Carpet (Black)

291001184

Unavailable

4

RH Front Carpet (Black)

291000511

Unavailable

LH Front Carpet (Black)

291000512

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Flat Washer M8.5 x 18

293050001

$1.29

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$38.32

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

REAR BUMPER TRIM (BLACK) - Call your local BRP dealership

291001192

Unavailable

12

SIDE BUMPER TRIM (BLACK) - Call your local BRP dealership

291001190

Unavailable

13

Black, Side Bumper

204050270

$175.35

14

Pop Rivet 3/16"

293150014

$0.87

15

REAR VENT HOSE - Call your local BRP dealership

291001103

Unavailable

16

Black, Snap Cap

293000014

$0.85

17

Silicone Sealant 51388, 300 ml

296000309

$35.72

18

Drain Plug

292000187

$10.21

19

Hex. Elastic Nut M8

232581600

$1.25

20

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

21

Hose Bilgeflex

291001400

Unavailable

22

Bumper Plug, Black

291000339

$2.34

23

Finition Plate (Black)

291000768

Unavailable

24

Hex. Elastic Stop Nut M6

232561600

$0.92

25

Sound Damping

291000400

Unavailable

26

Bumper Plug, Black

291001040

Unavailable

27

Tridon Clamp

293650054

$7.51

28

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

29

Hook (Seat)

291001353

Unavailable

30

Tridon Clamp

293650016

$8.57

31

Fitting

293710162

$12.91

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

Flat Washer M6, Stainless

234062600

$0.64

34

GASKET - Call your local BRP dealership

293250030

Unavailable

35

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

36

Float L.H

292000469

Unavailable

37

Hose Support | Includes 24 - 26.

291001150

Unavailable

37

Vent Hose Adaptor

291001105

Unavailable

38

Was 293200017 Neoprene Seal

219704365

$118.27

39

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

40

Tubing 25 MM 1000MM Long

219704402

$12.69
