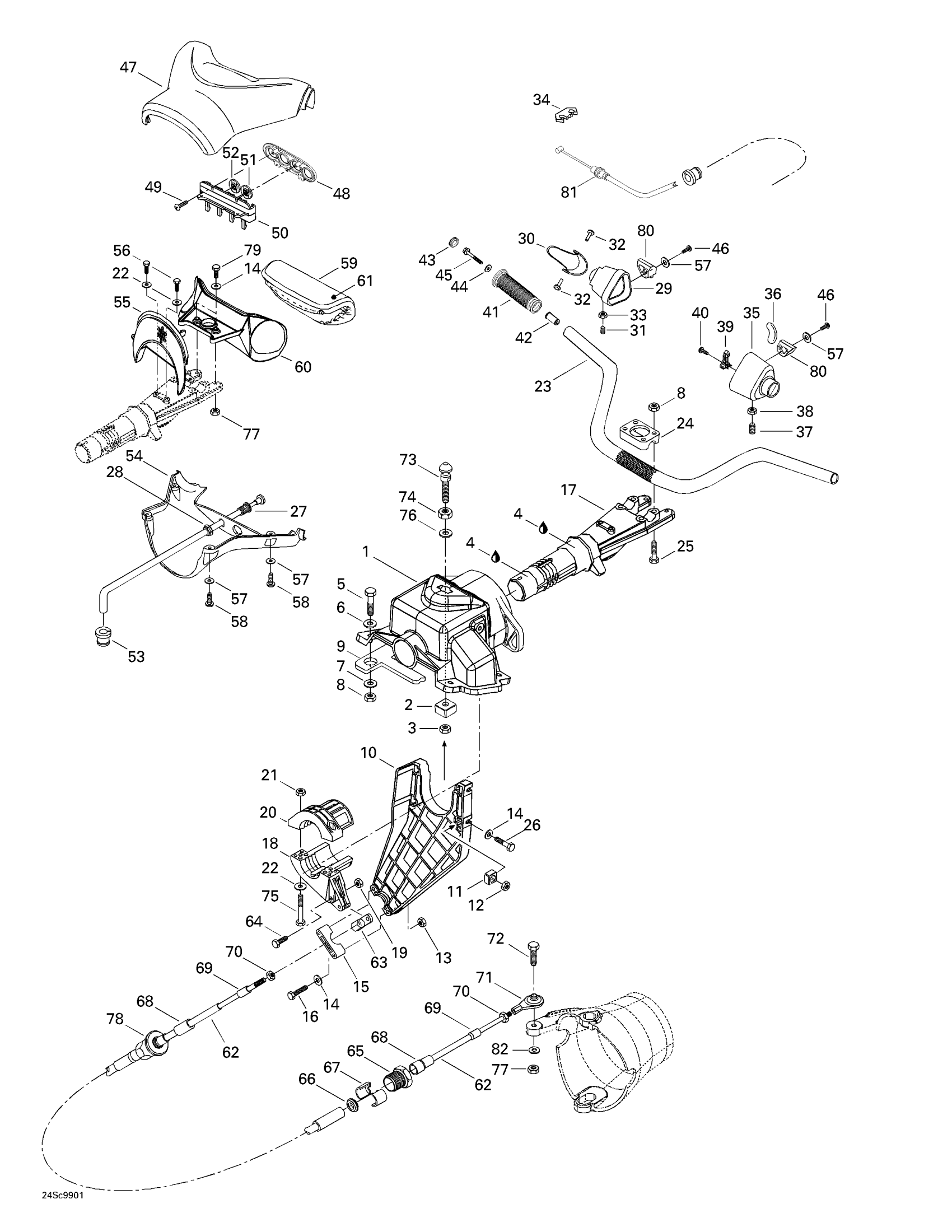

Sea-doo GSX Limited, 5848/5849, 1999 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Hex. Screw M8 X 35

207083560

$1.47

6

Stainless, Flat Washer 8 mm

234081600

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Elastic Nut M8

232581600

$1.48

9

Gasket

293250069

Unavailable

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Stainless Flat Washer M6

234061600

$0.33

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

16

Hex. Screw M6 X 50

207065060

$2.22

17

Steering Stem

277000562400

Unavailable

18

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

Arm Thrust | Includes 43 to 44

277000519

Unavailable

21

Hex. Elastic Stop Nut M6

232561600

$1.15

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Handlebar

277000824

Unavailable

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

26

Hex. Forming Screw M6 X 20

207162060

$1.29

27

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

Unavailable

28

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

29

Throttle Handle Housing

277000285

Unavailable

30

Throttle Handle

277000214

Unavailable

31

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

35

LH HANDLE HOUSING - Call your local BRP dealership | Includes 35 - 38.

277000498

Unavailable

36

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

37

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Retainer Plate

277000845

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Black, Cap

277000203

$9.39

44

Flat Washer M6, Stainless

234062600

$0.77

45

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

46

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

47

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

48

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

49

Screw K40 X 10

241140060

$1.48

50

Switch Support | LE

277000563

Unavailable

51

Mode Knob | LE

293000079

Unavailable

52

«Set» Knob | LE

293000080

Unavailable

53

Grommet

293720046

Unavailable

54

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

55

PLATE - Call your local BRP dealership

277000549

Unavailable

56

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

57

Flat Washer M5, Stainless

234051600

$0.77

58

Hex. Flange Screw K40 X 16

241141660

$1.48

59

Handle Pad Ass'y | Includes 59 - 61.

277000749

Unavailable

60

Handle Bar Pad Support

277000687

Unavailable

61

Steering Cover

277000750

Unavailable

62

Cable-Steering | Includes 61 - 64. This part replaces 277001011.

277001321

$219.99

63

Ball Joint

277001180

$35.99

64

Hex. Screw M6 X 30

211000081

$3.59

65

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

66

Rubber Washer

293830063

$1.90

67

Half Ring

277001527

$10.37

68

End Piece

277001583

$14.49

69

Wiper Rod

277001582

$11.11

70

Hex. Nut 1/4"-28

211100056

$0.69

71

Ball Joint

277000775

$51.99

72

Hex. Screw M6 X 35

207063560

$2.22

73

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

74

Hex. Jam Nut M10

232100600

$2.22

75

Hex. Screw M6 X 25

207162560

$1.47

76

Flat Washer 10 mm, Stainless

234002600

$2.22

77

Hex. Elastic Stop Nut M6

232561600

$1.15

78

Knob Adjuster

277000787

Unavailable

79

Hex. Screw M6 X 30

207063060

$1.89

80

INSERT - Call your local BRP dealership

293450153

Unavailable

81

THROTTLE CABLE - Call your local BRP dealership

277000915

Unavailable

82

Stainless Flat Washer M6

234061600

$0.33
