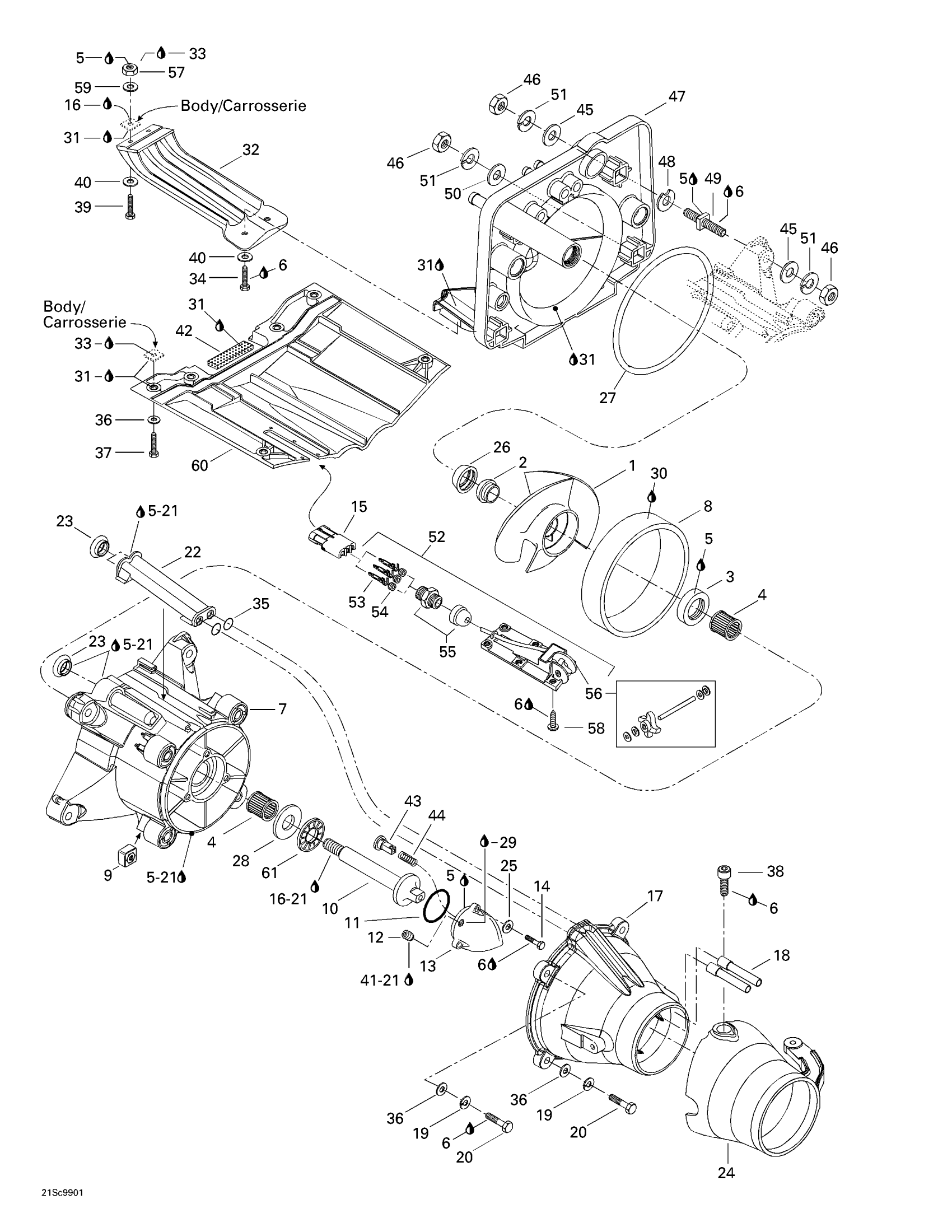

Sea-doo GSX Limited, 5848/5849, 1999 Propulsion System Diagram

#

Description
Price

1

Impeller Ass’Y

271000920

$391.99

Stainless Steel Impeller Ass'ym (H.A.)

271000931

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Loctite 243, 10 ml

293800060

$21.49

7

Impeller Housing | Includes 7 - 9.

271000943

Unavailable

8

Wear Ring

271000653

$58.49

9

Square Nut M8

211100033

$17.99

10

Impeller Shaft

271000965

$116.49

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000971

Unavailable

14

Socket Head Screw M6 X 25

205062560

$1.69

15

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi Ass'y | Includes 17 - 18.

271000994

Unavailable

18

Siphon Tube

271001133

$10.99

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

Hex. Screw M8 X 45

207084560

$3.38

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Water Outlet

271000785

$3.80

23

Watertight Seal

293250084

$7.49

24

Nozzle

271000806

Unavailable

25

Stainless Flat Washer M6

234061600

$0.33

26

Impeller Ring

271000517

$9.59

27

Neoprene Seal

293200051

$17.74

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Sealant Loctite 648

219703000

$45.99

31

Instant Gasket

219701421

$51.99

32

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

Hex. Screw M6 X 16

207161660

$1.59

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

38

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

39

Hex. Screw M6 X 35

207163560

$1.49

40

Stainless Flat Washer M6

234061600

$0.33

41

Was 293800013 Loctite 56765

219704454

$65.99

42

Neoprene Seal (1PAC=3M)

219704364

$27.49

43

PUSHER - Call your local BRP dealership

271000978

Unavailable

44

SPRING - Call your local BRP dealership

271000973

Unavailable

45

Flat Washer 10 mm, Stainless

234002600

$2.22

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support

271000954

Unavailable

48

Shim 0.3 mm

272000053

$11.49

49

Square Stud

250300022

$20.99

50

Flat Washer 10 mm, Stainless

234001600

$1.15

51

Lock Washer 10 mm

234001601

Unavailable

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Male Terminal | XT Models

278000222

$3.19

54

Wire Seal

278000218

$4.39

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

Phillips Screw M5 x 12

250000319

$1.39

59

Flat Washer M6, Stainless

234062600

$0.77

60

RIDING PLATE, BLACK - Call your local BRP dealership

271000955

Unavailable

61

Thrust-Bearing

293350022

$45.99
