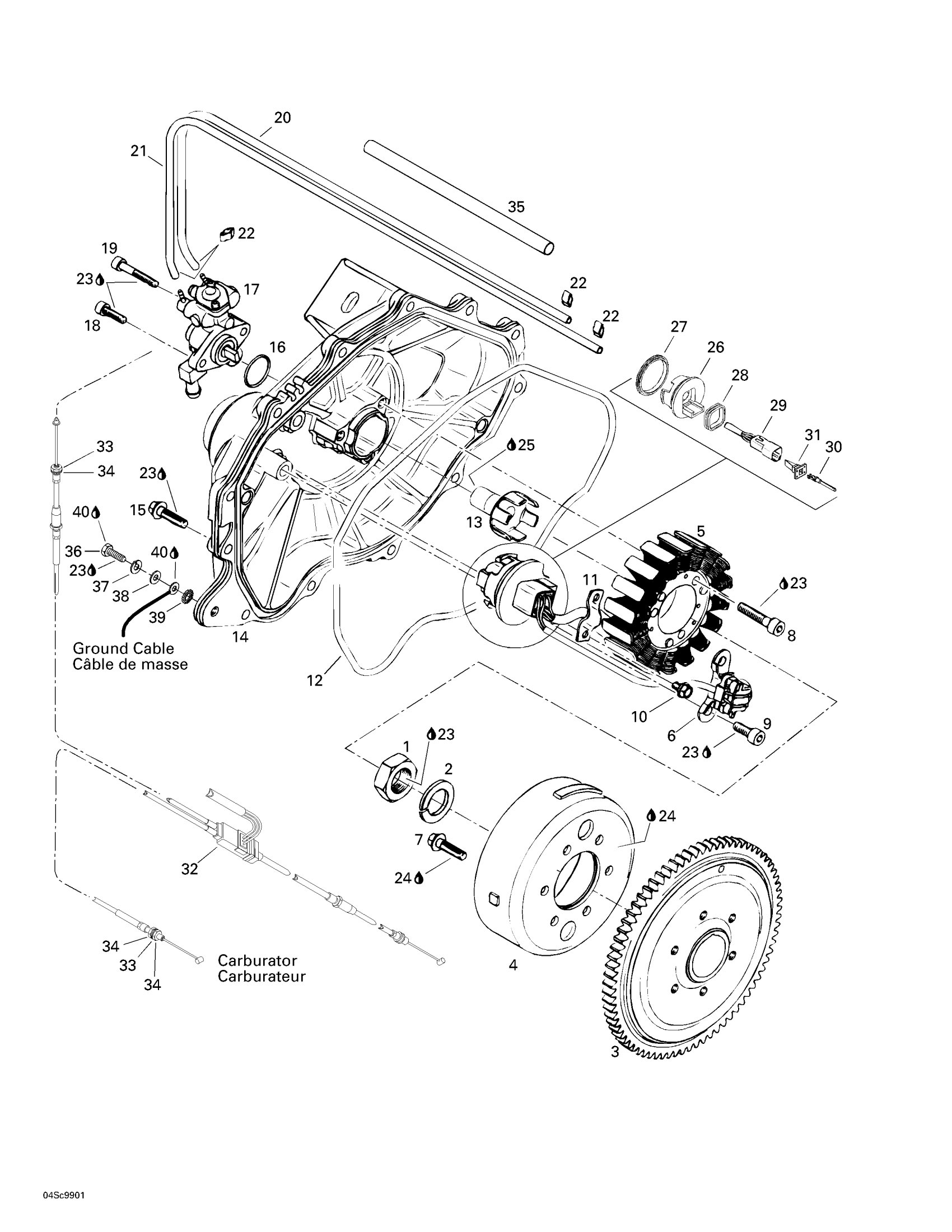

Sea-doo GSX Limited, 5848/5849, 1999 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

2

Lock Washer 18 mm

290945757

Unavailable

3

FLYWHEEL HUB - Call your local BRP dealership

290966682

Unavailable

4

Magneto Flywheel

290887945

Unavailable

5

STATOR PLATE ASS'Y - Call your local BRP dealership

290886588

Unavailable

6

Sensor Ass'y

420966832

$175.35

7

Socket Head Screw M6 x 16

290640171

Unavailable

8

Socket Head Screw M6 X 30

205063044

$1.42

9

Socket Head Screw M6 x 16

420241237

$1.85

10

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

$1.18

11

Retainer Plate

290853080

Unavailable

12

O-Ring

290931690

Unavailable

13

Oil Pump Shaft

290837390

Unavailable

14

Ignition Cover

290811066

Unavailable

15

Hex. Flange Screw M6 x 25

290240033

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

Oil Pump Ass'y

290888690

Unavailable

18

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

$1.60

19

Socket Head Screw M5 x 30

290940888

Unavailable

20

Oil Hose 1500Mm Long

219704404

$13.62

21

Oil Hose 1500Mm Long

219704404

$13.62

22

Clamp

290256408

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Sealant Loctite 648

219703000

$35.72

25

Dow Corning 111, 150 g

413707000

$57.82

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200030

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

$15.57

30

Male Terminal

278000631

$4.12

31

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

32

THROTTLE CABLE - Call your local BRP dealership

277000915

$146.89

33

Hex. Nut M6

232160600

$1.08

34

Stainless Flat Washer M6

234061600

$0.25

35

Protector Hose

290260437

Unavailable

36

Hex. Screw M6 X 16

207161660

$1.22

37

Lock Washer Helical M6

234161601

$0.92

38

Flat Washer M6, Stainless

234062600

$0.64

39

External Serrated Lock Washer 6 mm

234461608

$0.92

40

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

41

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888131

Unavailable

42

Cylinder Gasket Set (Not Shown)

290888136

Unavailable
