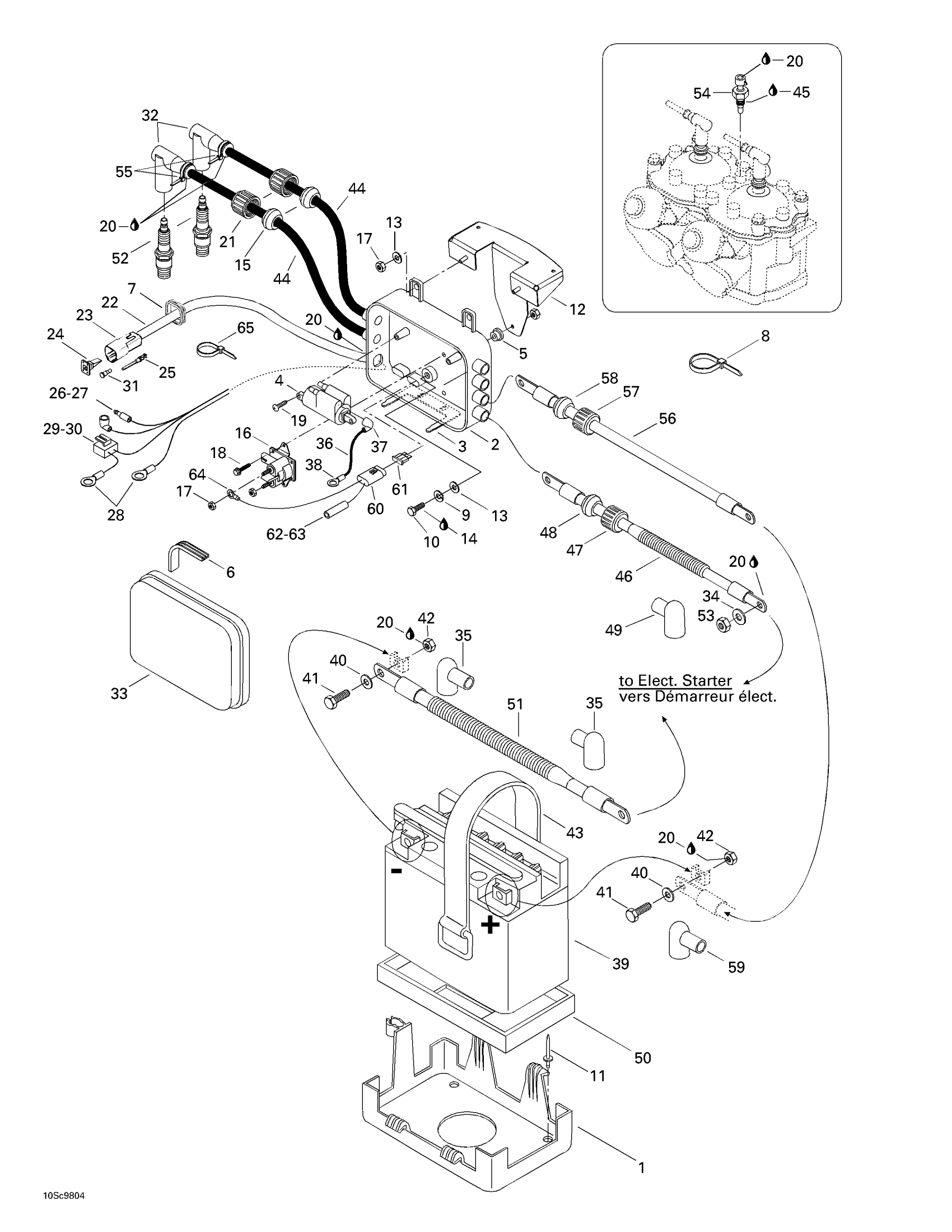

Sea-doo GSX Limited, 5629/5845, 1998 Rear Electrical Box Diagram

#

Description
Price

1

Battery Support

278001233

Unavailable

2

Base

278001171

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil

278001188

Unavailable

5

O-RING - Call your local BRP dealership

293300040

Unavailable

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 94 mm | 4X4

293750001

Unavailable

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 180 mm

414115200

Unavailable

Tie Wrap 368 mm

293750008

Unavailable

9

Lock Washer Helical M6

234161601

Unavailable

10

Hex. Forming Screw M6 X 20

207162060

Unavailable

11

Avdel Rivet 3/16"

293150037

Unavailable

12

Box Support Ass'y

278001169

Unavailable

13

Flat Washer M6, Stainless

234062600

Unavailable

14

Loctite 243, 10 ml

293800060

Unavailable

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

Unavailable

18

Hex. Flange Screw M6 X 10

210261040

Unavailable

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 24 - 32.

278001184

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

Unavailable

24

Female Lock, 6 Circuits

278000735

Unavailable

25

Male Terminal

278000631

Unavailable

26

Male Terminal

278000230

Unavailable

27

Insulated Sheath

278001008

Unavailable

28

Open Barrel

278000992

Unavailable

29

Male Connector, 2 Circuits

278001113

Unavailable

30

Female Terminal

278001114

Unavailable

31

Sealing Cap

293000052

Unavailable

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

33

Cover

278001172

Unavailable

34

Stainless Flat Washer M6

234061600

Unavailable

35

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

36

Ground Harness | Includes 82 - 84.

278000664

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

38

Ring Terminal

278000300

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

Unavailable

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

Unavailable

42

Hex. Nut M6

232061414

Unavailable

43

Retainer Strap

293850097

Unavailable

44

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

46

Starter Cable (Red) | Includes 46 - 49.

278001183

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Battery Ground Cable

278001189

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

Unavailable

54

Temperature Sensor

278002895

Unavailable

55

Tie Wrap 142 mm

293750002

Unavailable

56

Battery Cable (Red) | Includes 56 - 59.

278001185

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

60

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

61

Fuse, 15 Amperes

278000343

Unavailable

62

Female Terminal | DS 650 X

278001009

Unavailable

63

Insulated Sheath

278001007

Unavailable

64

Ring Terminal

278000300

Unavailable

65

Tie Wrap 94 mm | 4X4

293750001

Unavailable
