- GSX Limited, 5629/5845, 1998
Electronic Module And Electrical Accessories

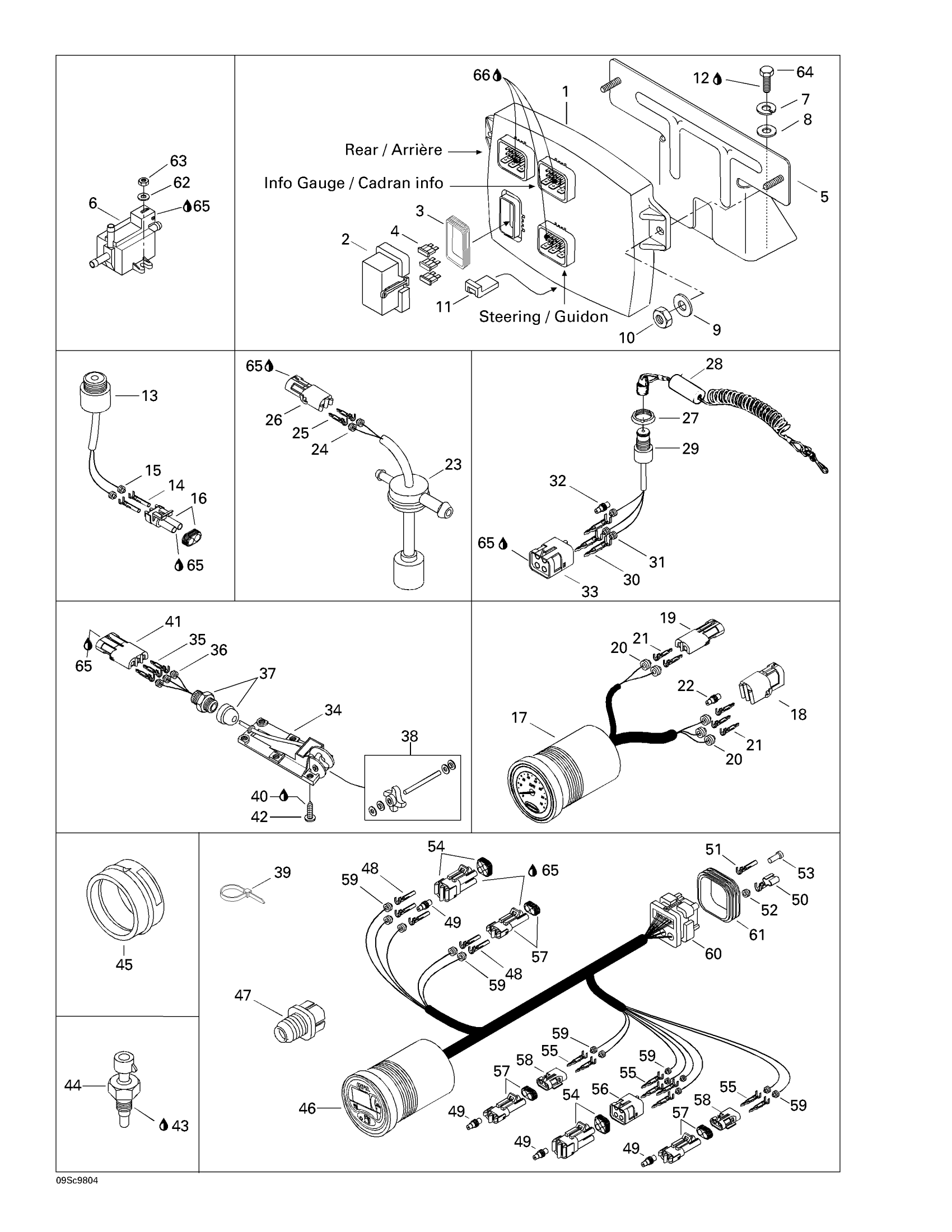

Sea-doo GSX Limited, 5629/5845, 1998 Electronic Module And Electrical Accessories Diagram
#
1
FUSE 15 AMP - Call your local BRP dealership
278001343
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
3
Cover Seal
278001070
Unavailable
4
Fuse, 15 Amperes
278000343
Unavailable
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
Fuse, 5 Amperes | CE
278000344
Unavailable
5
Box Support Ass'y
278001131
Unavailable
6
Solenoid Valve
270600005
Unavailable
7
WASHER-LOCK IMPERIAL - Call your local BRP dealership
211200043
Unavailable
8
Flat Washer 5 mm, Stainless
234052600
Unavailable
9
Stainless Flat Washer M6
234061600
Unavailable
10
Hex. Elastic Stop Nut M6
232561600
Unavailable
11
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
12
Loctite 271, 10 ml
293800005
Unavailable
13
Buzzer Ass'y | Includes 11 - 14.
278000978
Unavailable
14
Female Terminal
278000223
Unavailable
15
Wire Seal
278000218
Unavailable
16
Male Connector, 2 Circuits
278000220
Unavailable
17
Speedometer | Includes 17 - 22.
278000947
Unavailable
18
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
19
Female Housing, 2 Circuits
278000217
Unavailable
20
Wire Seal
278001065
Unavailable
21
Male Terminal | XT Models
278000222
Unavailable
22
Wire Seal
278000216
Unavailable
23
Oil Level Sensor Ass'y | Includes 21 - 24.
278001315
Unavailable
24
Wire Seal
278000218
Unavailable
25
Male Terminal | XT Models
278000222
Unavailable
26
Female Housing, 2 Circuits
278000217
Unavailable
27
Safety Nut (DESS Switch)
278002963
Unavailable
28
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
Unavailable
29
Safety Switch | Includes 15 - 19.
278000977
Unavailable
30
Male Terminal | XT Models
278000222
Unavailable
31
Wire Seal
278000218
Unavailable
32
Wire Seal
278000216
Unavailable
33
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
34
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
35
Male Terminal | XT Models
278000222
Unavailable
36
Wire Seal
278000218
Unavailable
37
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
38
Paddle Wheel Kit
295500108
Unavailable
39
Tie-Rap 180 mm
414115200
Unavailable
40
Loctite 243, 10 ml
293800060
Unavailable
41
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
42
SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership
216351060
Unavailable
43
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
44
Temperature Sensor
278002895
Unavailable
45
Gauge Support
293720047
Unavailable
46
LCD Info Gauge | Includes 46 - 61.
278001258
Unavailable
47
GROMMET - Call your local BRP dealership
293720042
Unavailable
48
Female Terminal
278000223
Unavailable
49
Wire Seal
278000216
Unavailable
50
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
51
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
52
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
53
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
54
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
55
Male Terminal | XT Models
278000222
Unavailable
56
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
57
Male Connector, 2 Circuits
278000220
Unavailable
58
Female Housing, 2 Circuits
278000217
Unavailable
59
Wire Seal
278001065
Unavailable
60
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
61
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
62
Flat Washer M5, Stainless
234051600
Unavailable
63
Hex. Elastic Nut M5 | X
232551600
Unavailable
64
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
65
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
66
Lube - Deoxit, 250 ml
293800051
Unavailable
