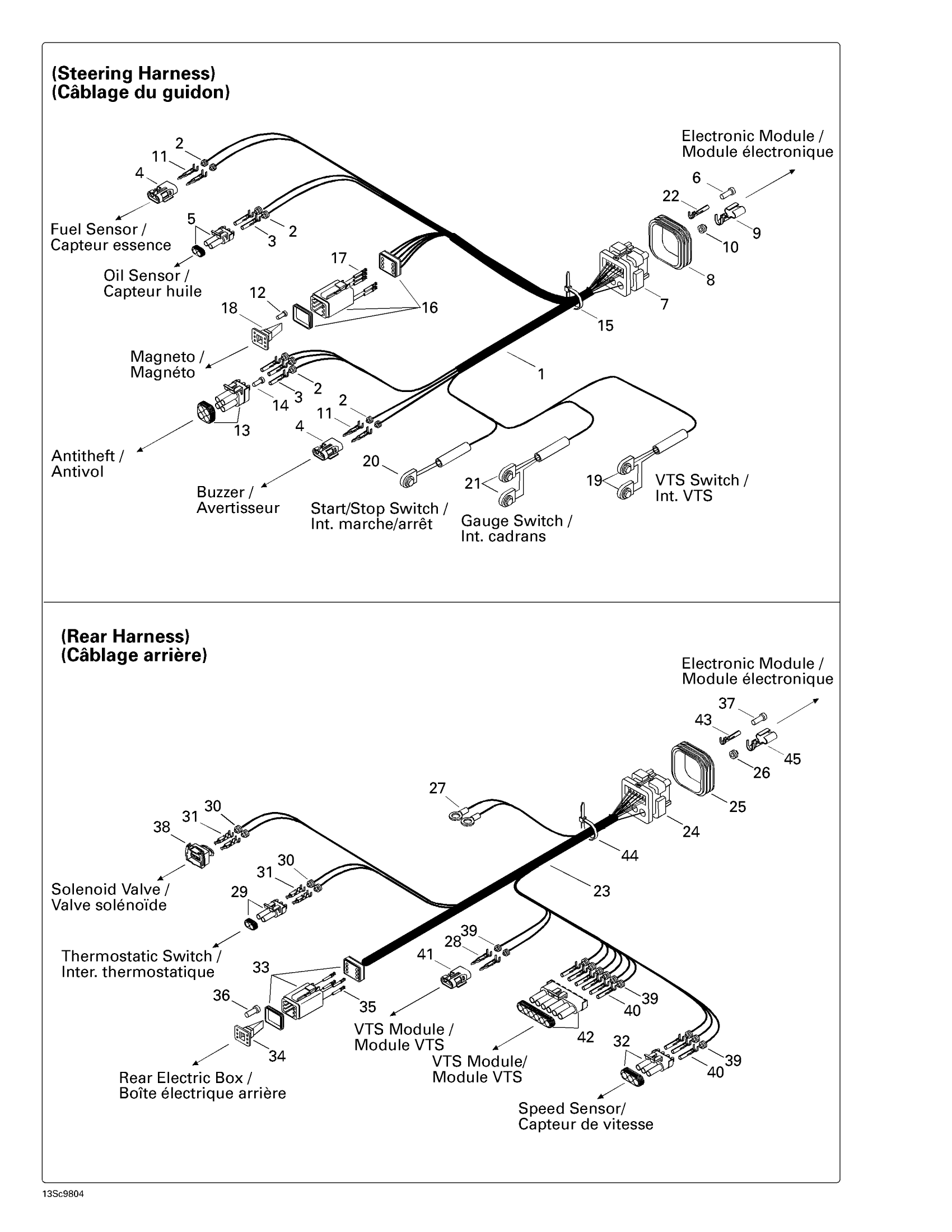

Sea-doo GSX Limited, 5629/5845, 1998 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 22.

278001294

Unavailable

2

Wire Seal

278000218

Unavailable

3

Female Terminal

278000223

Unavailable

4

Female Housing, 2 Circuits

278000217

Unavailable

5

Male Connector, 2 Circuits

278000220

Unavailable

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

Unavailable

12

Sealing Cap

293000052

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

Unavailable

15

Tie Wrap 142 mm

293750002

Unavailable

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

17

Female Terminal

278000632

Unavailable

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

19

VTS Switch Ass'y

278000447

Unavailable

20

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

21

Gauge Switch Ass'y

278000854

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

23

Rear Harness | Includes 22 - 42.

278001075

Unavailable

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

25

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

26

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

27

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

28

Male Terminal

409004300

Unavailable

29

Male Housing, 2 Circuits

278001005

Unavailable

30

Wire Seal

278000999

Unavailable

31

Female Terminal

278000998

Unavailable

32

Male Housing, 3 Circuits

278000273

Unavailable

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Female Terminal

278000632

Unavailable

36

Sealing Cap

293000052

Unavailable

37

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

38

Male Connector, 2 Circuits

278001003

Unavailable

39

Wire Seal

278000218

Unavailable

40

Female Terminal

278000223

Unavailable

41

Female Housing, 2 Circuits

278000217

Unavailable

42

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

43

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

44

Tie Wrap 142 mm

293750002

Unavailable

45

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable
