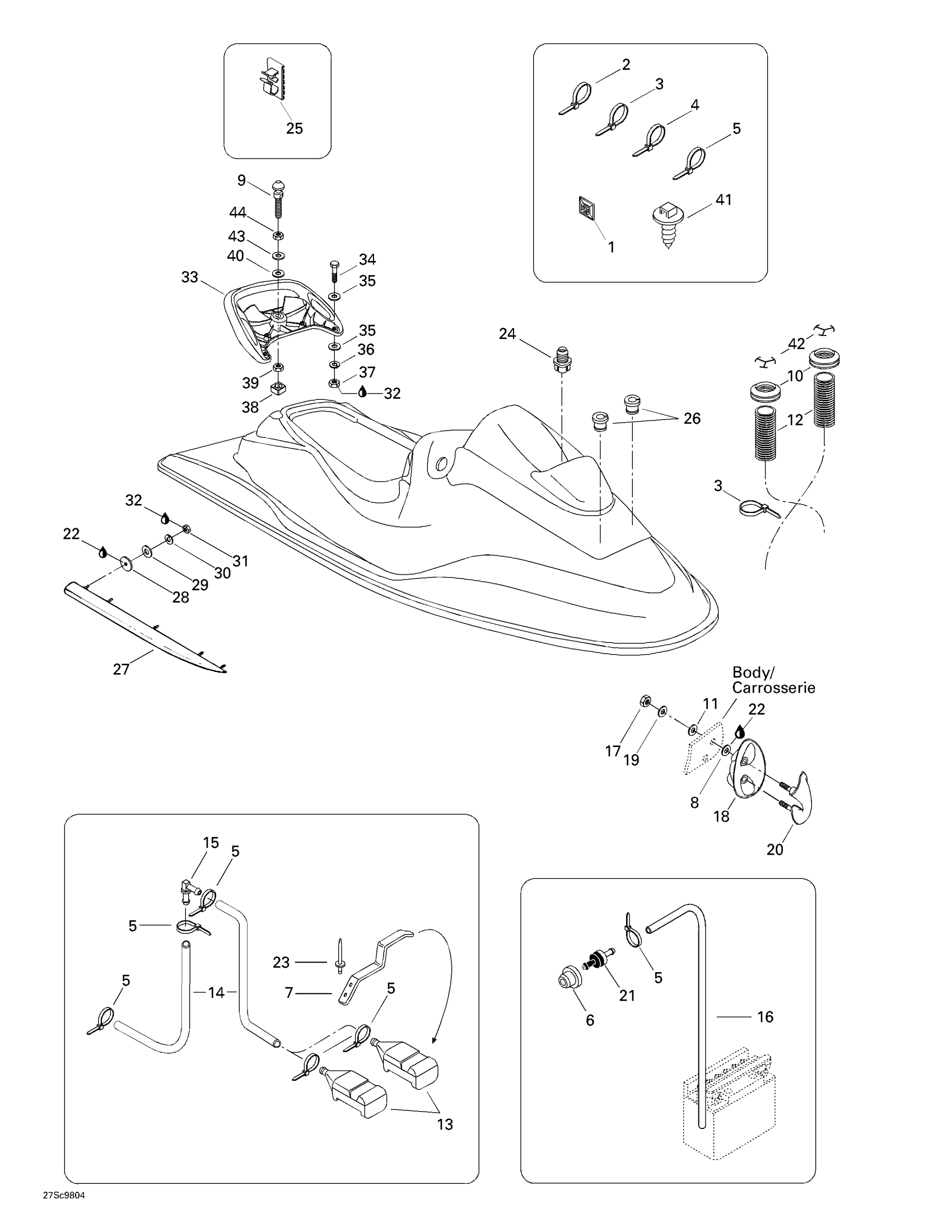

Sea-doo GSX Limited, 5629/5845, 1998 Body Diagram
#
1
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
2
Tie-Rap 180 mm
414115200
Unavailable
3
Tie Wrap 368 mm
293750008
Unavailable
4
Tie Wrap 142 mm
293750002
Unavailable
5
Tie Wrap 94 mm | 4X4
293750001
Unavailable
6
Grommet
293720029
Unavailable
7
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
8
Stainless, Flat Washer 8 mm
234081600
Unavailable
9
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
10
Grommet
293720036
Unavailable
11
Rubber Washer
293830037
Unavailable
12
Vent Tube
291000870
Unavailable
13
Screen Bailer
292000079
Unavailable
14
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
15
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
16
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
17
Hex. Elastic Nut M8
232581600
Unavailable
18
Shell
292000501
Unavailable
19
Flat Washer 8 mm, Stainless
234082600
Unavailable
20
Bow-Eye
292000500
Unavailable
21
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
22
Silicone Sealant 51388, 300 ml
296000309
Unavailable
23
Avdel Rivet 3/16"
293150037
Unavailable
24
GROMMET - Call your local BRP dealership
293720042
Unavailable
25
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
26
Grommet
293720046
Unavailable
27
RH Sponson
292000491
Unavailable
LH Sponson
292000492
Unavailable
28
GASKET - Call your local BRP dealership
293250026
Unavailable
29
Flat Washer M6, Stainless
234062600
Unavailable
30
Lock Washer Helical M6
234161601
Unavailable
31
Hex. Nut M6
232061600
Unavailable
32
Loctite 243, 10 ml
293800060
Unavailable
33
Grab Handle Kit (Amethyst) | Includes 33 - 37.
295500583
Unavailable
34
Hex. Screw M6 X 40
207064060
Unavailable
35
Flat Washer M6, Stainless
234062600
Unavailable
36
Lock Washer Helical M6
234161601
Unavailable
37
Hex. Nut M6
232061600
Unavailable
38
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
39
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
40
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
41
Mount Dart
293730040
Unavailable
42
Restrictor
291001098
Unavailable
43
Flat Washer 10 mm, Stainless
234002600
Unavailable
44
Hex. Jam Nut M10
232100600
Unavailable
