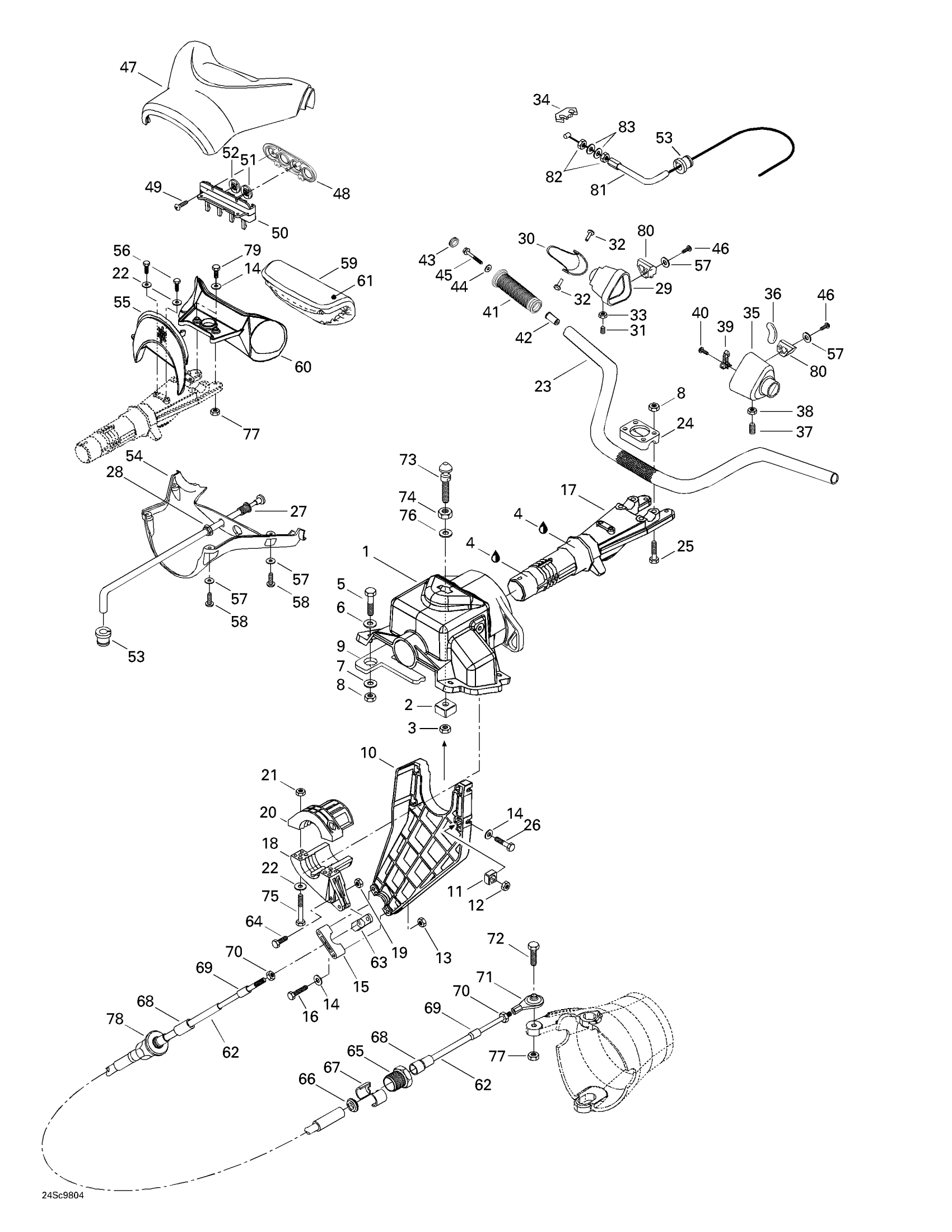

Sea-doo GSX Limited, 5629/5845, 1998 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Hex. Screw M8 X 35

207083560

Unavailable

6

Stainless, Flat Washer 8 mm

234081600

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

Unavailable

8

Hex. Elastic Nut M8

232581600

Unavailable

9

Gasket

293250069

Unavailable

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

Unavailable

14

Stainless Flat Washer M6

234061600

Unavailable

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

16

Hex. Screw M6 X 50

207065060

Unavailable

17

Steering Stem

277000562400

Unavailable

18

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

Unavailable

20

Arm Thrust | Includes 43 to 44

277000519

Unavailable

21

Hex. Elastic Stop Nut M6

232561600

Unavailable

22

Flat Washer M6, Stainless

234062600

Unavailable

23

Handle bar

277000305

Unavailable

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

26

Hex. Forming Screw M6 X 20

207162060

Unavailable

27

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

Unavailable

28

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

29

Throttle Handle Housing

277000285

Unavailable

30

Throttle Handle

277000214

Unavailable

31

Set Screw M6 x 12

211000039

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

Unavailable

34

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

35

LH HANDLE HOUSING - Call your local BRP dealership | Includes 35 - 38.

277000498

Unavailable

36

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

37

Set Screw M6 x 12

211000039

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

Retainer Plate

277000219

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

Handle Grip Kit (Black) This part replaces 295500112.

295500110

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Black, Cap

277000203

Unavailable

44

Flat Washer M6, Stainless

234062600

Unavailable

45

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

46

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

47

Upper Steering Cover

277000734

Unavailable

48

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

49

Screw K40 X 10

241140060

Unavailable

50

Switch Support | LE

277000563

Unavailable

51

Mode Knob | LE

293000079

Unavailable

52

«Set» Knob | LE

293000080

Unavailable

53

Grommet

293720046

Unavailable

54

Lower Steering Cover

277000735

Unavailable

55

PLATE - Call your local BRP dealership

277000549

Unavailable

56

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

57

Flat Washer M5, Stainless

234051600

Unavailable

58

Hex. Flange Screw K40 X 16

241141660

Unavailable

59

Handle Pad Ass'y | Includes 59 - 61.

277000749

Unavailable

60

Handle Bar Pad Support

277000687

Unavailable

61

Steering Cover

277000750

Unavailable

62

Steering Cable

271000436

Unavailable

63

Joint

277000646

Unavailable

64

Hex. Screw M6 X 30

211000081

Unavailable

65

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

66

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

67

Half Ring

277000055

Unavailable

68

Boot, Large

277000473

Unavailable

69

Boot, Small

277000466

Unavailable

70

Hex. Nut

212100005

Unavailable

71

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

72

Hex. Screw M6 X 35

207063560

Unavailable

73

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

74

Hex. Jam Nut M10

232100600

Unavailable

75

Hex. Screw M6 X 25

207162560

Unavailable

76

Flat Washer 10 mm, Stainless

234002600

Unavailable

77

Hex. Elastic Stop Nut M6

232561600

Unavailable

78

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

79

Hex. Screw M6 X 30

207063060

Unavailable

80

INSERT - Call your local BRP dealership

293450153

Unavailable

81

THROTTLE CABLE ASS'Y - Call your local BRP dealership | Includes 81 - 83.

277000781

Unavailable

82

Hex. Nut M6

232160600

Unavailable

83

Stainless Flat Washer M6

234061600

Unavailable
