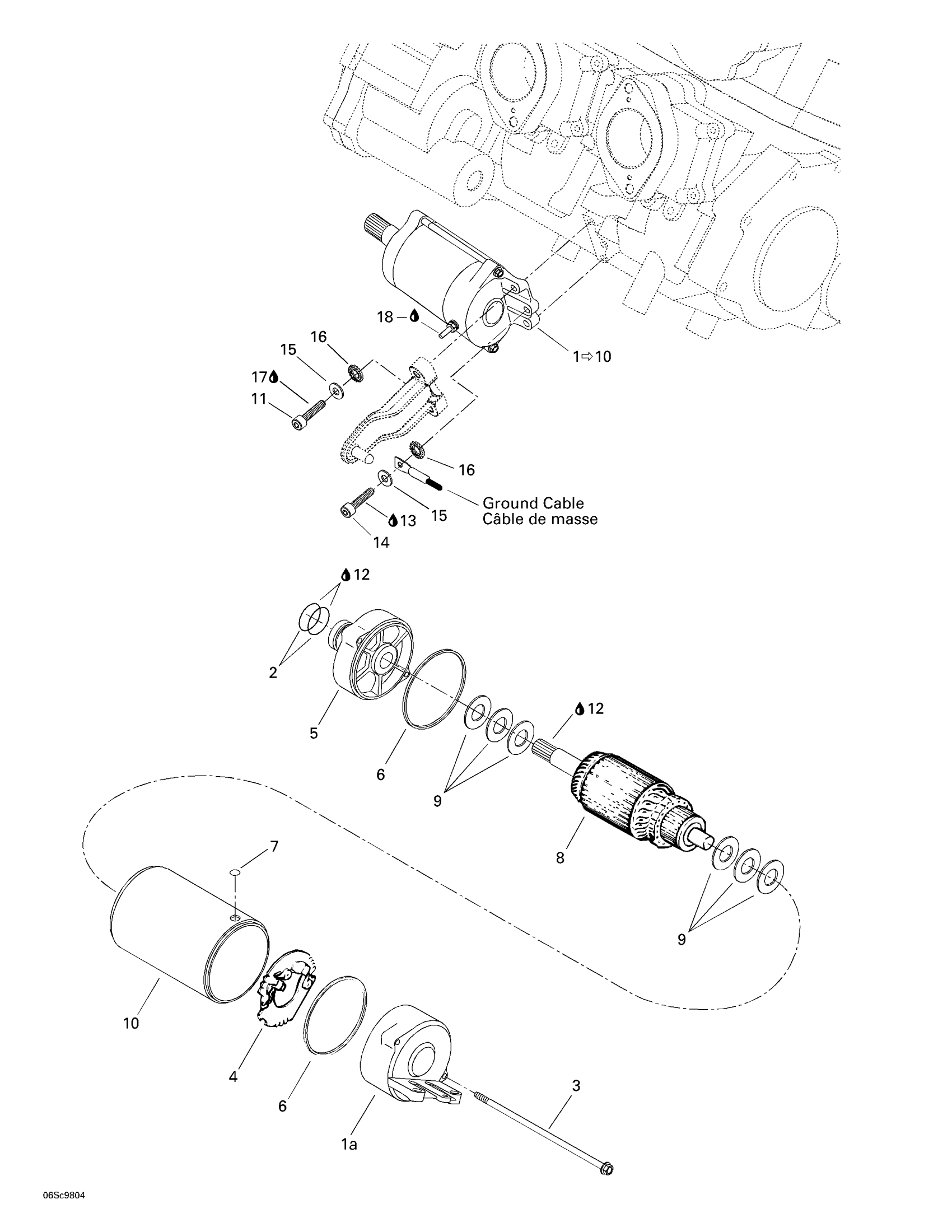

Sea-doo GSX Limited, 5629/5845, 1998 Starter Diagram

#

Description
Price

1

Starter Ass'y, Black

278001937

Unavailable

1a

REAR HOUSING - Call your local BRP dealership

278001156

Unavailable

2

O-RING - Call your local BRP dealership

278001159

Unavailable

3

SCREW - Call your local BRP dealership

278001157

Unavailable

4

BRUSH HOLDER - Call your local BRP dealership

278001154

Unavailable

5

Front Housing

278001152

Unavailable

6

SQUARE RING - Call your local BRP dealership

278001158

Unavailable

7

O-RING - Call your local BRP dealership

278001160

Unavailable

8

Armature

278001155

Unavailable

9

Set Washer

278001161

Unavailable

10

Starter Housing

278001153

Unavailable

11

Socket Head Screw M6 X 35

205063560

Unavailable

12

Synthetic Grease, 400 G

293550010

Unavailable

13

Loctite 271, 10 ml

293800005

Unavailable

14

Socket Screw M6 X 16

205061660

Unavailable

15

Stainless Flat Washer M6

234061600

Unavailable

16

External Serrated Lock Washer 6 mm

234461608

Unavailable

17

Loctite 271, 10 ml

293800005

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
