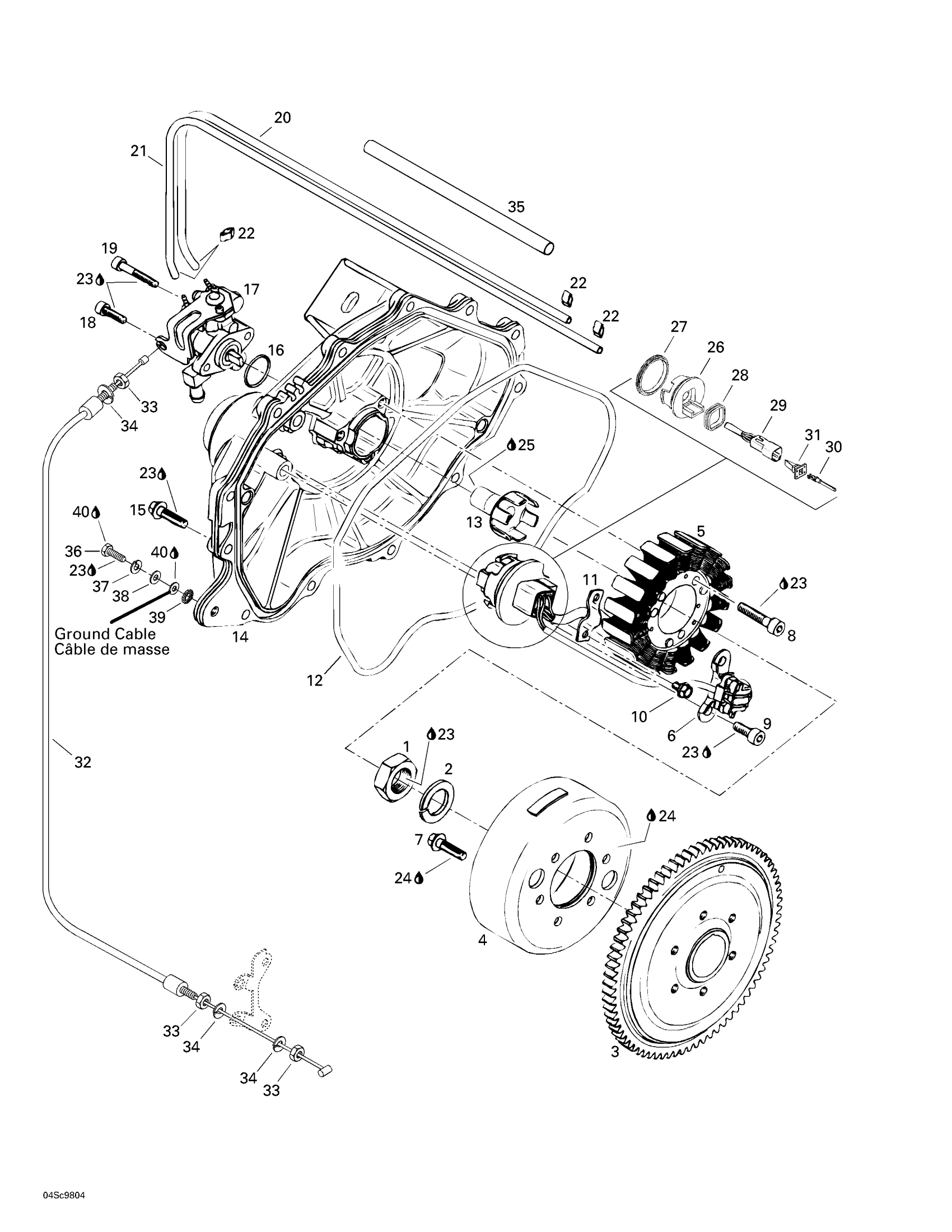

Sea-doo GSX Limited, 5629/5845, 1998 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

2

Lock Washer 18 mm

290945757

Unavailable

3

Hub Flywheel

290966680

Unavailable

4

MAGNETO FLYWHEEL - Call your local BRP dealership

290886598

Unavailable

5

STATOR PLATE ASS'Y - Call your local BRP dealership

290886588

Unavailable

6

Sensor Ass'y

420966832

Unavailable

7

Socket Head Screw M6 x 16

290640171

Unavailable

8

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

9

Socket Head Screw M6 x 16

420241237

Unavailable

10

Hex. Screw M5 x 8

215050848

Unavailable

11

Retainer Plate

290853080

Unavailable

12

O-Ring

290931690

Unavailable

13

Oil Pump Shaft

290837390

Unavailable

14

Ignition Cover

290811062

Unavailable

15

Hex. Screw M6 x 25

290240032

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

Oil Pump Ass'y

290887335

Unavailable

18

Cylindrical Slotted Screw M5 x 16

215951660

Unavailable

19

Socket Head Screw M5 x 30

290940883

Unavailable

20

Oil Hose 1500Mm Long

219704404

Unavailable

21

Oil Hose 1500Mm Long

219704404

Unavailable

22

Clamp

290256408

Unavailable

23

Loctite 243, 10 ml

293800060

Unavailable

24

Sealant Loctite 648

219703000

Unavailable

25

Dow Corning 111, 150 g

413707000

Unavailable

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200030

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

Unavailable

30

Male Terminal

278000631

Unavailable

31

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

32

Injection Cable | Includes 32 - 34.

270000382

Unavailable

33

Hex. Nut M6

232160600

Unavailable

34

Lock Washer Helical M6

234161601

Unavailable

35

Protector Hose

290260437

Unavailable

36

Hex. Screw M6 X 16

207161660

Unavailable

37

Lock Washer Helical M6

234161601

Unavailable

38

Flat Washer M6, Stainless

234062600

Unavailable

39

External Serrated Lock Washer 6 mm

234461608

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

41

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888131

Unavailable

42

Cylinder Gasket Set (Not Shown)

290888136

Unavailable
