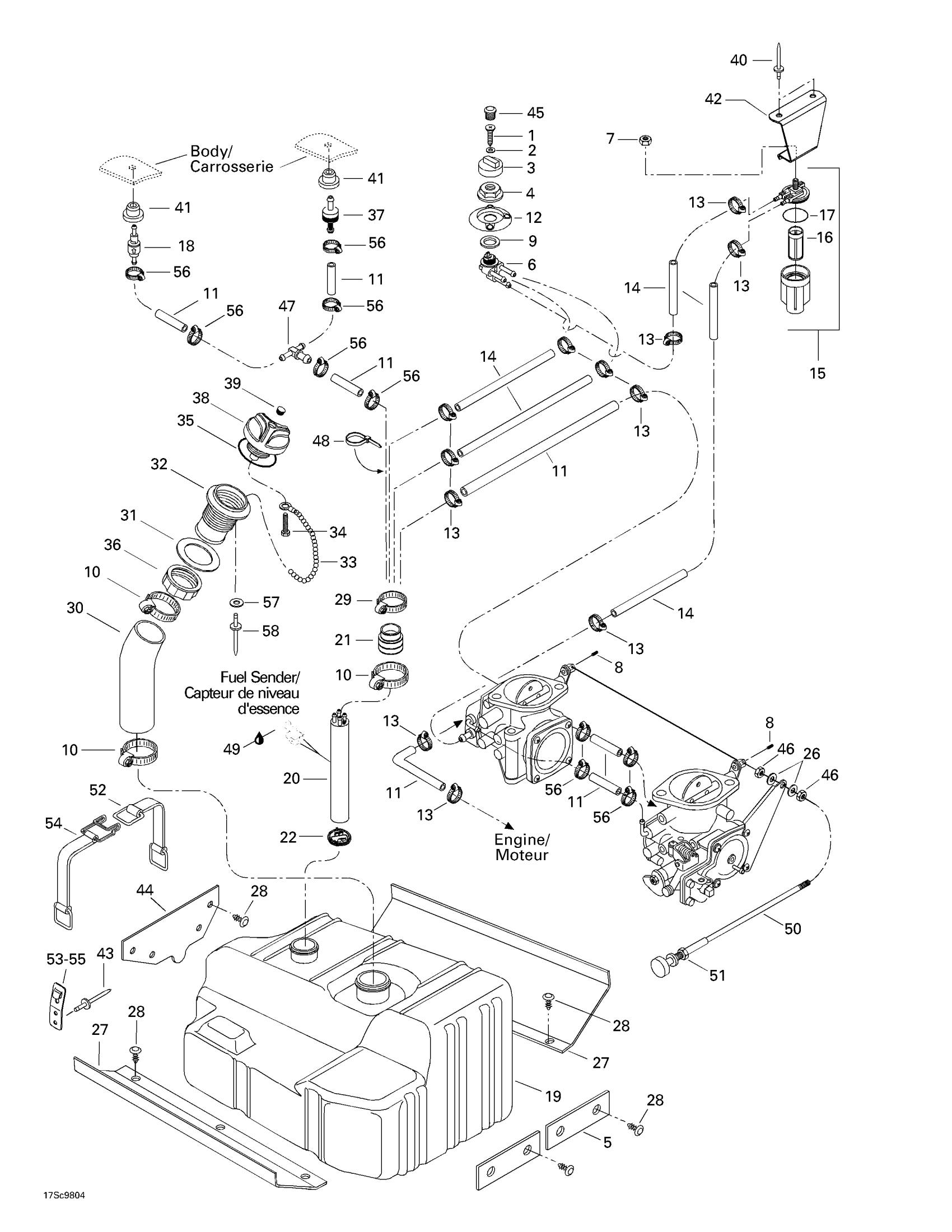

Sea-doo GSX Limited, 5629/5845, 1998 Fuel System Diagram
#
1
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
2
Flat Washer 4 mm
234040600
Unavailable
3
Fuel Valve Knob
275500385
Unavailable
4
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
5
Rubber Pad
292000343
Unavailable
6
Fuel Valve
275500400
Unavailable
7
Hex. Elastic Stop Nut M6
232561600
Unavailable
8
Allen Screw M4 x 6
210100014
Unavailable
9
GASKET - Call your local BRP dealership
293250004
Unavailable
10
Tridon Clamp
293650023
Unavailable
11
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
12
Fuel Valve Plate
275500386
Unavailable
13
Tridon Gear Clamp
293650170
Unavailable
14
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
15
FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.
275500358
Unavailable
16
FUEL FILTER - Call your local BRP dealership
275500089
Unavailable
17
O-Ring
275500090
Unavailable
18
Pressure Relief Valve (1.5 P.S.I)
275500104
Unavailable
19
Fuel Tank
275500291
Unavailable
20
BAFFLE - Call your local BRP dealership | Includes 20 - 25.
275500418
Unavailable
21
Tube Adapter
275500111
Unavailable
22
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
23
Wire Seal
278000218
Unavailable
24
Male Connector, 2 Circuits
278000220
Unavailable
25
Female Terminal
278000223
Unavailable
26
Stainless Flat Washer M6
234061600
Unavailable
27
Pad Rubber
293830040
Unavailable
28
Black, Dart
293730006
Unavailable
29
Tridon Clamp
293650035
Unavailable
30
Filler Neck Hose
275500295
Unavailable
31
Gasket
293250029
Unavailable
32
Filler Neck, Fuel
275500231
Unavailable
33
Chain
275500168
Unavailable
34
Screw K40 X 10
241140060
Unavailable
35
GASKET - Call your local BRP dealership This part replaces 293250075.
293250211
Unavailable
36
Filler Neck Nut, Fuel
211100012
Unavailable
37
Check Valve
275500398
Unavailable
38
Fuel Tank Cap, Black | Includes 26 to 27
275500430
Unavailable
39
Black, Snap Cap
293000034
Unavailable
40
Pop Rivet 3/16"
293150039
Unavailable
41
Grommet
293720029
Unavailable
42
FUEL FILTER SUPPORT - Call your local BRP dealership
275500287
Unavailable
43
Avdel Rivet 3/16"
293150037
Unavailable
44
Rubber Pad
293830053
Unavailable
45
Black, Cap
275500241
Unavailable
46
Hex. Nut M6
232160600
Unavailable
47
T-Fitting | Europe
293710024
Unavailable
48
Tie-Rap 180 mm
414115200
Unavailable
49
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
50
CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.
270000383
Unavailable
51
NUT-HEXAGONAL HI-LEX - Call your local BRP dealership
211100030
Unavailable
52
Fuel Tank Strap | Includes 48 - 49.
293850026
Unavailable
53
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
54
Strap | Includes 69 - 70.
293850025
Unavailable
55
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
56
Oetiker Clamp
293650042
Unavailable
57
Flat Washer M3, Stainless
234032600
Unavailable
58
Pop Rivet 1/8"
390407900
Unavailable
