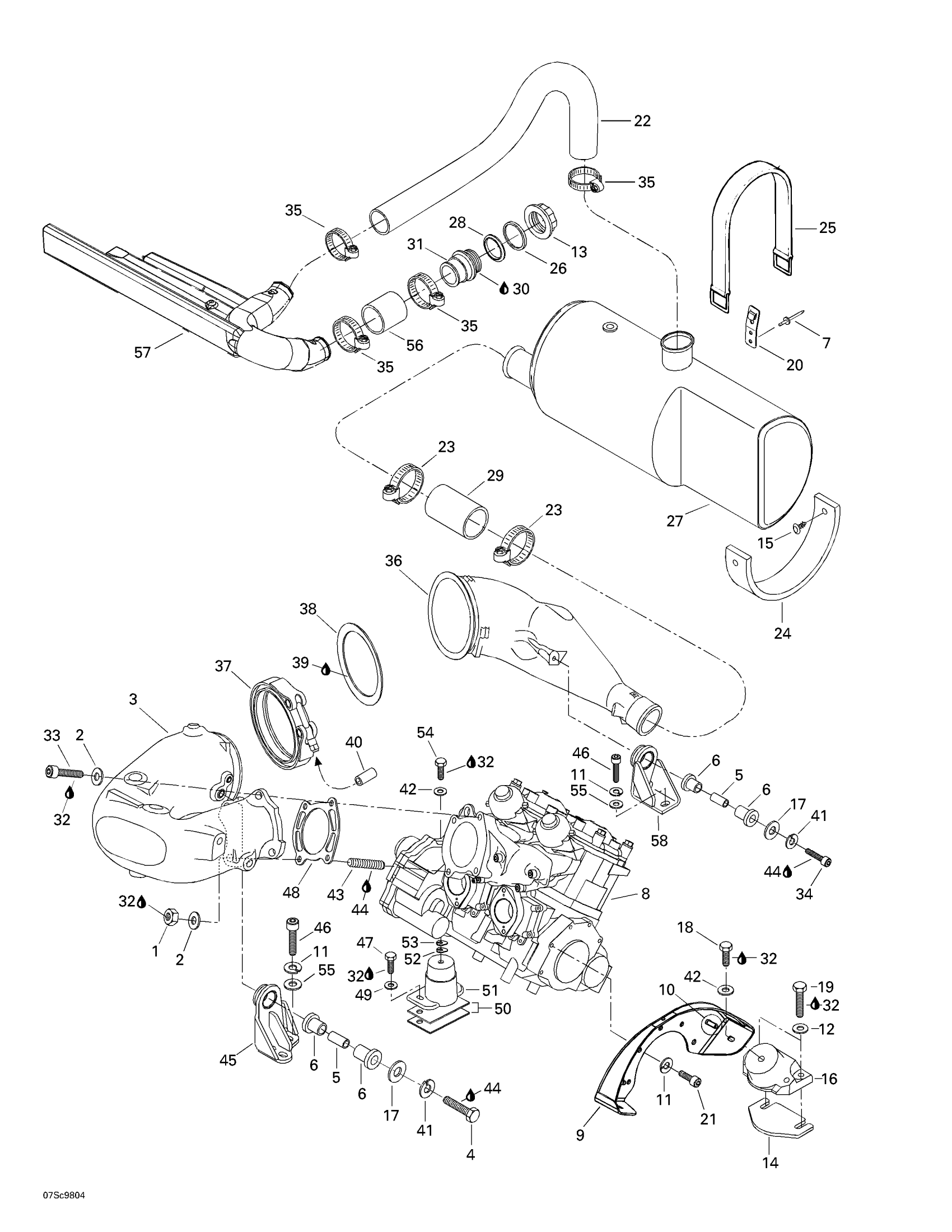

Sea-doo GSX Limited, 5629/5845, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Flange Nut M10

233101600

Unavailable

2

Flat Washer

211200051

Unavailable

3

Head Pipe Ass'y | Includes 4 - 8.

274000657

Unavailable

4

Hex. Screw M10 x 40

215604060

Unavailable

5

Bushing

274000254

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

Avdel Rivet 3/16"

293150037

Unavailable

8

Rotax Engine 947 (Silver)

270000368

Unavailable

9

Engine Support

270000359

Unavailable

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

Nut 72 mm

274000224

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

293730011

Unavailable

16

Rubber Mount

270000352

Unavailable

17

Flat Washer 10 mm, Stainless

234002600

Unavailable

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

Unavailable

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

Unavailable

22

Exhaust Hose

274000525

Unavailable

23

Tridon Clamp

293650064

Unavailable

24

Rubber Pad

293830055

Unavailable

25

Retainer Strap

293850097

Unavailable

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Muffler (Silver)

274000599

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

Unavailable

31

Exhaust Hose, Outlet

274001391

Unavailable

32

Loctite 243, 10 ml

293800060

Unavailable

33

Socket Head Screw M10 x 35

215903560

Unavailable

34

Hex. Screw M10 x 40 (Scotch Grip)

207004060

Unavailable

35

Tridon Clamp

293650064

Unavailable

36

Exhaust Cone

274000658

Unavailable

37

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

38

SEALING RING - Call your local BRP dealership

274000511

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

41

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

42

Flat Washer 8 mm, Stainless

234082600

Unavailable

43

Stud M10 x 55

211300025

Unavailable

44

Loctite 271, 10 ml

293800005

Unavailable

45

Support Pipe

274000679

Unavailable

46

Socket Head Screw M8 X 25, Scotch Grip

205582560

Unavailable

47

Hex. Screw M8 X 40

207184060

Unavailable

48

Gasket

293250080

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

Unavailable

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount

270000353

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

Flat Washer M8.5 x 18

293050001

Unavailable

56

Exhaust Hose

274000616

Unavailable

57

Muffler (Resonator)

295500682

Unavailable

58

Pipe Support

274000636

Unavailable
