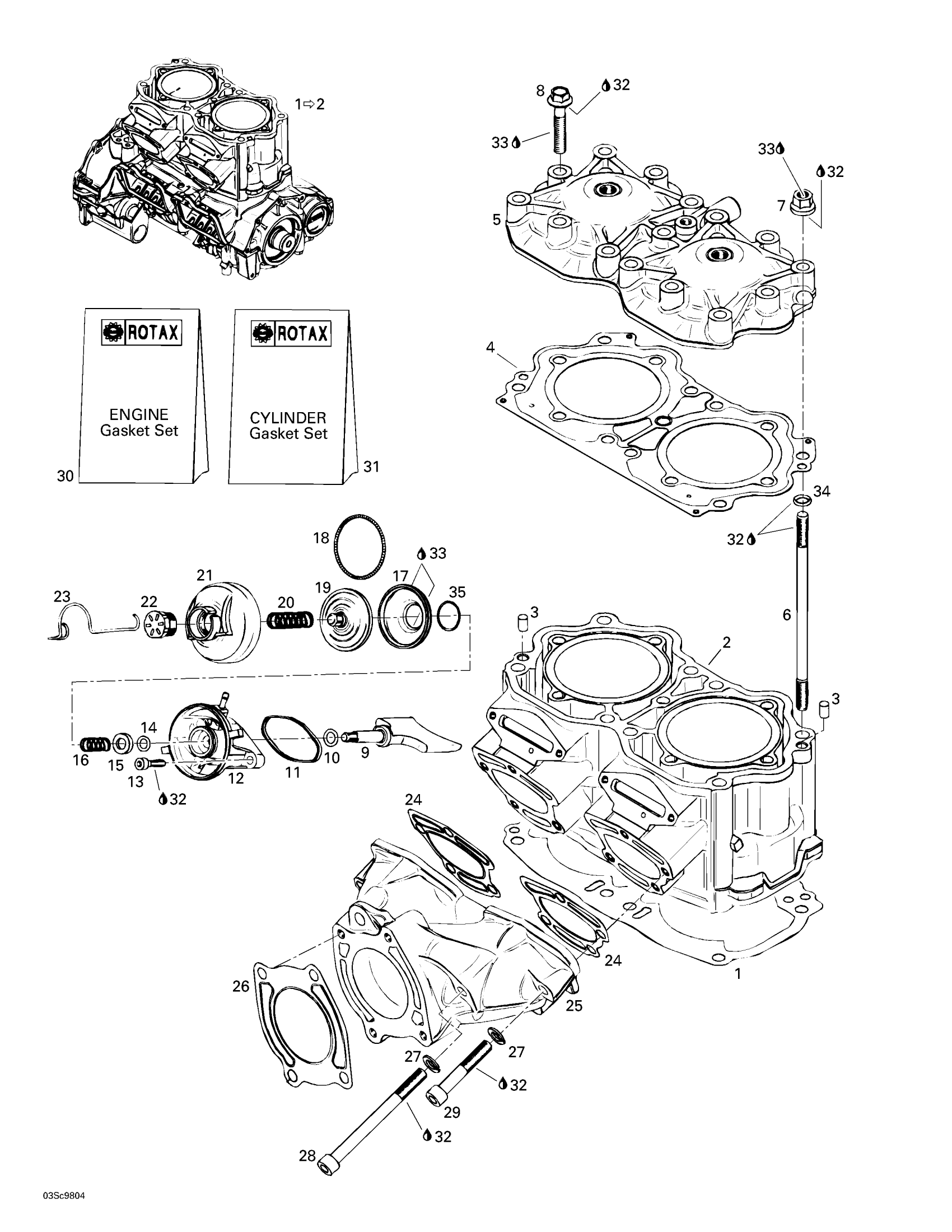

Sea-doo GSX Limited, 5629/5845, 1998 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094702

Unavailable

1

Gasket Cylinder 0.8 mm

290931687

Unavailable

Gasket Cylinder 0.6 mm

290931686

Unavailable

Gasket Cylinder 0.5 mm

290931685

Unavailable

2

Cylinder with Sleeve (Silver)

290923569

Unavailable

3

Center Pin 8 X 12

420632010

Unavailable

4

CYLINDER HEAD GASKET 947 - Call your local BRP dealership

420931702

Unavailable

5

Head Cylinder (Silver)

290923584

Unavailable

6

STUD M10 X 206 - Call your local BRP dealership

290640237

Unavailable

7

Stud Nut M10

290842863

Unavailable

8

Screw Hex. Flange M10 x 60

290841708

Unavailable

9

Exhaust Valve

290854410

Unavailable

10

O-Ring

420931765

Unavailable

11

Rubber Gasket

290931670

Unavailable

12

Valve Housing

290854435

Unavailable

13

Socket Head Screw M6 X 25

205062560

Unavailable

14

O-Ring

420931765

Unavailable

15

Support Ring

290926220

Unavailable

16

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

17

Exhaust Bellows

420260723

Unavailable

18

Hose Spring This part replaces 420239048.

420939281

Unavailable

19

Exhaust Valve

290854445

Unavailable

20

Compression Spring

290939137

Unavailable

21

Valve Cover This part replaces 420911558.

420911559

Unavailable

22

Adjuster Screw

420241221

Unavailable

23

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

24

Gasket

293250081

Unavailable

25

Exhaust Manifold (Silver)

290979604

Unavailable

26

Gasket

293250080

Unavailable

27

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

28

Socket Head Screw M10 x 110

290941483

Unavailable

29

Allen Screw M10 x 60

215906060

Unavailable

30

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888131

Unavailable

31

Cylinder Gasket Set (Not Shown)

290888136

Unavailable

32

Loctite 243, 10 ml

293800060

Unavailable

33

Dow Corning 111, 150 g

413707000

Unavailable

34

O-RING - Call your local BRP dealership

290850460

Unavailable

35

Hose Spring This part replaces 420838253.

420838255

Unavailable
